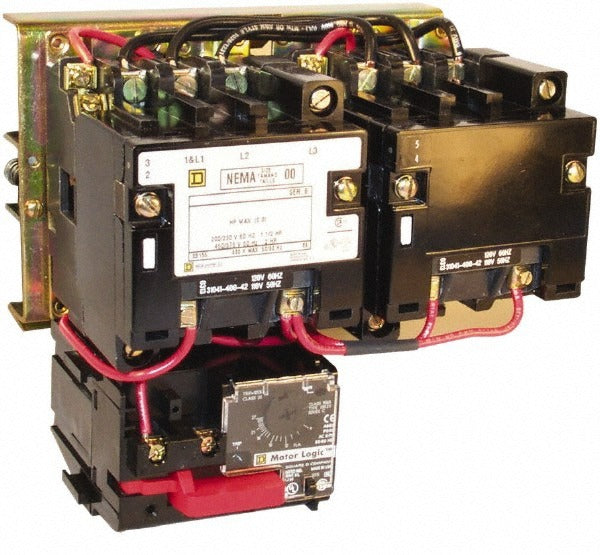

Square D 8736SAO16V02S Reversible Nema Motor Starter 9A

Product Description

The SQUARE D 8736SAO16V02S is a reversible NEMA motor starter designed for three-phase motor control applications. Rated at 9 amps with a coil voltage of 110 VAC at 50 Hz or 120 VAC at 60 Hz, this NEMA Size 00 unit provides reliable forward and reverse switching for small commercial and industrial motors. The open enclosure design allows for flexible panel or enclosure mounting by qualified electricians and motor control technicians. It meets CSA, UL, and RoHS standards, making it suitable for installations requiring certified components in compliant electrical systems.

This motor starter is used in three-phase motor control circuits requiring reversing capability. Horsepower ratings are 1-1/2 hp at 200 VAC, 1-1/2 hp at 230 VAC, 2 hp at 460 VAC, and 2 hp at 575 VAC. Typical applications include conveyor drives, pump reversing systems, and fan or blower controls in light commercial and industrial environments. The unit is intended for panel integration where the installer supplies the enclosure.

Key Features

• Reversible motor starter configuration for forward and reverse three-phase motor control
• Dual coil voltage rating: 110 VAC at 50 Hz and 120 VAC at 60 Hz
• NEMA Size 00 with 9 amp continuous current rating
• Open enclosure design for flexible mounting in customer-supplied enclosures
• Meets UL, CSA, and RoHS compliance requirements
• Horsepower rated across multiple three-phase voltage levels from 200 VAC to 575 VAC

Compatibility

Designed as an OEM-style replacement reversible NEMA motor starter for three-phase motor control panels and industrial control systems requiring NEMA Size 00 reversing starters.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power to the control panel before handling or wiring the starter. The open enclosure must be installed inside a suitable protective enclosure rated for the environment. Verify coil voltage matches the control circuit voltage before energizing.
