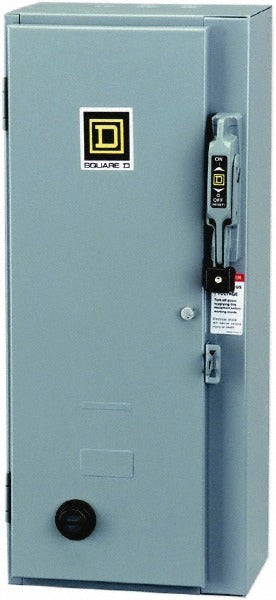

Square D 8538SCG14V02S Combination Starter 10 Hp 600V

Product Description

The SQUARE D 8538SCG14V02S is a three-phase, nonreversing enclosed NEMA combination starter rated for 10 hp at 600 VAC with a 27-amp continuous current rating and 30-amp short circuit protection. It is a full-voltage motor starter used to start, stop, and protect three-phase AC motors in commercial and industrial settings. The unit ships in a NEMA 1 enclosure suitable for indoor, dry-location installations. Licensed electricians and industrial maintenance technicians are the primary installers. The combination starter integrates motor overload protection and disconnect functionality in a single enclosed assembly, reducing panel space and simplifying wiring.

This starter is suited for indoor industrial and commercial motor control applications involving three-phase loads up to 10 hp at 600 VAC. Typical installations include pump motors, fan motors, conveyor drives, and similar nonreversing motor loads found in manufacturing facilities, mechanical rooms, and utility spaces. The NEMA 1 enclosure makes it appropriate for protected indoor environments where the unit is not exposed to moisture, dust, or corrosive atmospheres. It is commonly installed in motor control centers or as a standalone wall-mount combination starter panel.

Key Features

• 27-amp continuous rating with 30-amp short circuit protection for overload and fault defense
• Rated 600 VAC, three-phase for compatibility with common North American industrial supply voltages
• Nonreversing action for straightforward across-the-line motor starting
• NEMA 1 enclosed construction for clean, dry indoor environments
• Three-pole design matches three-phase motor wiring requirements
• RoHS compliant construction

Compatibility

Designed as an OEM-style replacement or direct-install combination motor starter for three-phase, nonreversing motor control circuits operating at up to 600 VAC in NEMA 1 indoor enclosure applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power sources before handling or wiring the starter. Verify that supply voltage, motor horsepower, and full-load amperage match the starter ratings before energizing. Do not use this nonreversing starter in applications that require forward and reverse motor operation.
