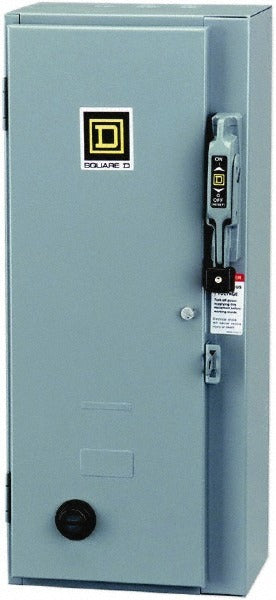

Square D 8538SCG11V02S Combination Starter 27A 600VAC

Product Description

The SQUARE D 8538SCG11V02S is a 3-pole enclosed NEMA combination motor starter rated for 27 continuous amps at 600 VAC. It is designed for non-reversible, three-phase motor control applications in industrial and commercial settings. The unit handles motor loads up to 7.5 hp and 10 hp depending on voltage configuration, and ships as a complete enclosed assembly ready for panel or wall mounting. Licensed electricians and industrial maintenance technicians are the primary installers. The NEMA 1 enclosure rating makes this unit suitable for indoor general-purpose environments where the assembly is protected from accidental contact.

This combination starter is used in three-phase motor circuits where a single enclosure must house both the disconnect and the motor controller. Typical applications include HVAC fan arrays, pump motors, compressor drives, and other continuous-duty industrial or commercial motor loads. The non-reversible action suits applications where the motor runs in a single direction only. The 600 VAC rating accommodates standard North American industrial power distribution voltages.

Key Features

• 27 continuous amp rating supports three-phase motor loads up to 7.5 hp and 10 hp
• 600 VAC rated for industrial power distribution systems
• 3-pole, non-reversible configuration for single-direction motor control
• NEMA 1 enclosed design for indoor general-purpose installations
• RoHS compliant construction
• Complete combination starter assembly in a single enclosure

Compatibility

Designed as an OEM-style enclosed NEMA combination starter for three-phase, non-reversible motor control applications in indoor general-purpose environments.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the upstream power source before mounting, wiring, or servicing this unit. Verify that the supply voltage and motor full-load amps are within the starter's rated limits before energizing. The NEMA 1 enclosure is intended for indoor use only and must not be installed in wet, corrosive, or outdoor locations without an appropriate enclosure upgrade.
