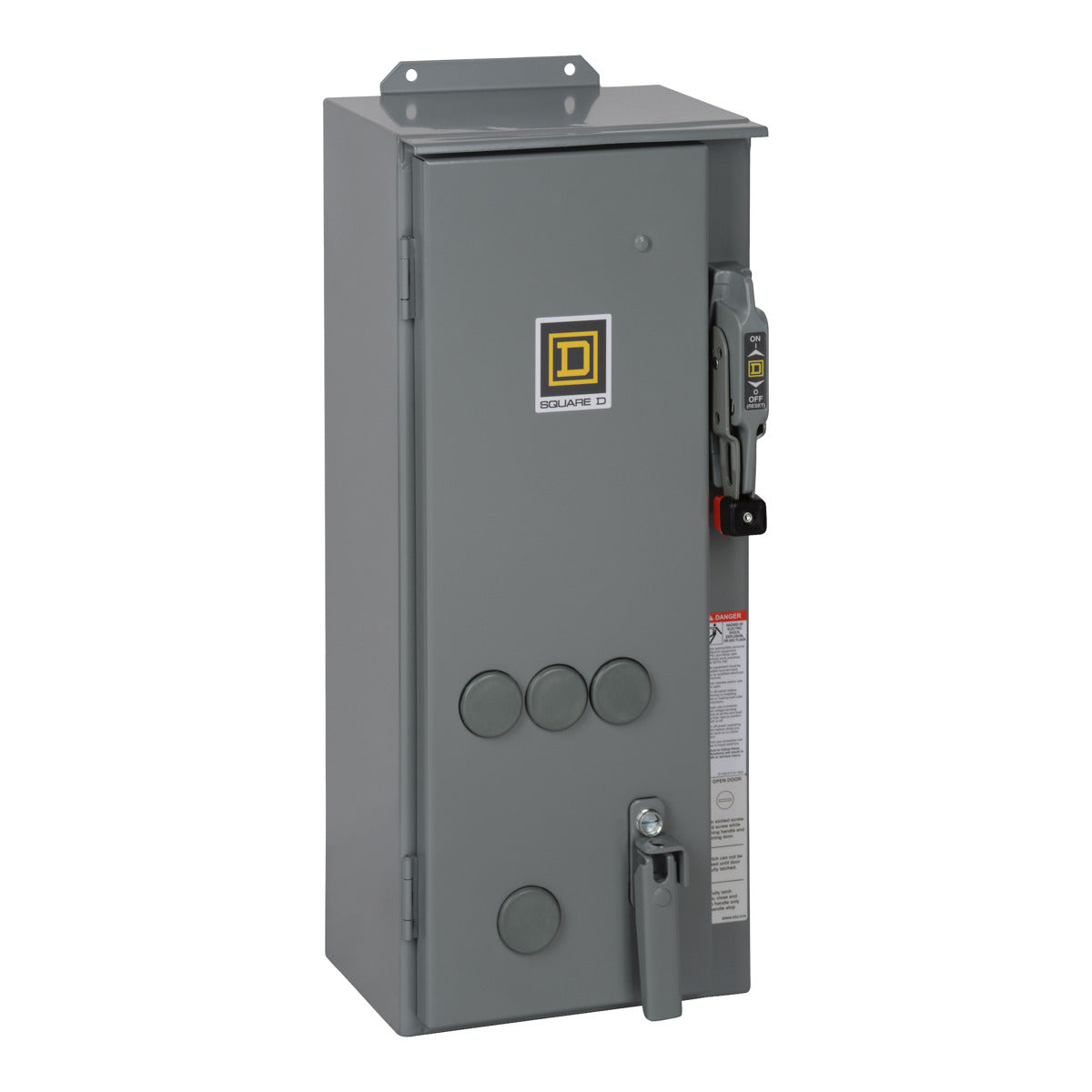

Square D 8538SCA21V02S Motor Control Starter 10 HP

Product Description

The SQUARE D 8538SCA21V02S is a Type S nonreversing fusible combination starter designed for motor control applications. This NEMA Size 1 starter combines motor overload and short circuit protection. The 3 pole starter is suitable for three phase applications and features a 110/120 VAC 50/60 Hz operating coil and a melting alloy type overload relay. It is housed in a painted sheet steel NEMA 3R/12 enclosure.

• Motor overload and short circuit protection
• 110/120 VAC 50/60 Hz operating coil
• Painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure

Product Highlights

Combination starter for motor control with overload and short circuit protection, suitable for three-phase applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8538SCA21V02S
• Country of Origin: Mexico

Technical Specifications

• Type: Combination Starter
• Brand: Square D
• Depth: 8.34 in
• Width: 9.50 in
• Height: 24 Inch
• Voltage: 600 Volt
• Amperage: 27 Amp
• Enclosure: NEMA 12
• NEMA Size: 1
• Sub Brand: S
• Reset Type: THERMAL - MELTING ALLOY
• Applications: USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS - DISCONNECT AND STARTER IN ONE PACKAGE
• Power Supply: 120VAC@60HZ - 110VAC@50HZ
• TC Connection: BOX LUG
• Certifications: CSA,UL Listed
• Disconnect Type: Non-fusible disconnect switch
• Number of Poles: 3 Pole
• Country of Origin: Mexico
• Line Rated Current: 27 A
• Contact Configuration: Without
• Environmental Conditions: DUST TIGHT AND DRIP TIGHT (INDOOR)
• Maximum Horse Power Rating: 7.5-7.5 hp 200 V AC, 3 phase || 7.5-7.5 hp 230 V AC, 3 phase || 10-10 hp 460 V AC, 3 phase || 10-10 hp 575 V AC, 3 phase
• [Uc] Control Circuit Voltage: 110 V AC 50 Hz || 120 V AC 60 Hz
• [Ue] Rated Operational Voltage: 600 V AC
• Coil Volts: 120V AC
• Trip Class: 20
• Pilot Light: No
• Control Type: no control units
• Product Type: NEMA Non-Fusible Combination Starter
• Control Circuit: separate control circuit
• Local Signalling: no indicator
• Poles Description: 3P
• Motor Starter Type: non reversing
• Thermal Overload Type: melting alloy 3
• Product Or Component Type: Combination Starter
• Auxiliary Contact Composition: without
• Nema Degree Of Protection: NEMA 12 painted sheet steel with external reset
• Overload Relay Amp Setting: Melting Alloy
• Enclosure NEMA Rating: 12, 3R
• Short Circuit Protection: Non-Fused
• Phase: Three
• Frequency: 50/60 Hz
• Horsepower @ Three Phase - 600V AC: 10 hp
• Horsepower @ Three Phase - 208V AC: 7 1/2 hp
• Horsepower @ Three Phase - 480V AC: 10 hp
• Horsepower @ Three Phase - 240V AC: 7 1/2 hp
• Overload Protection Type: Thermal
