Square D 8538SBG13V02S <1000 VAC Motor Control Starter

Product Description

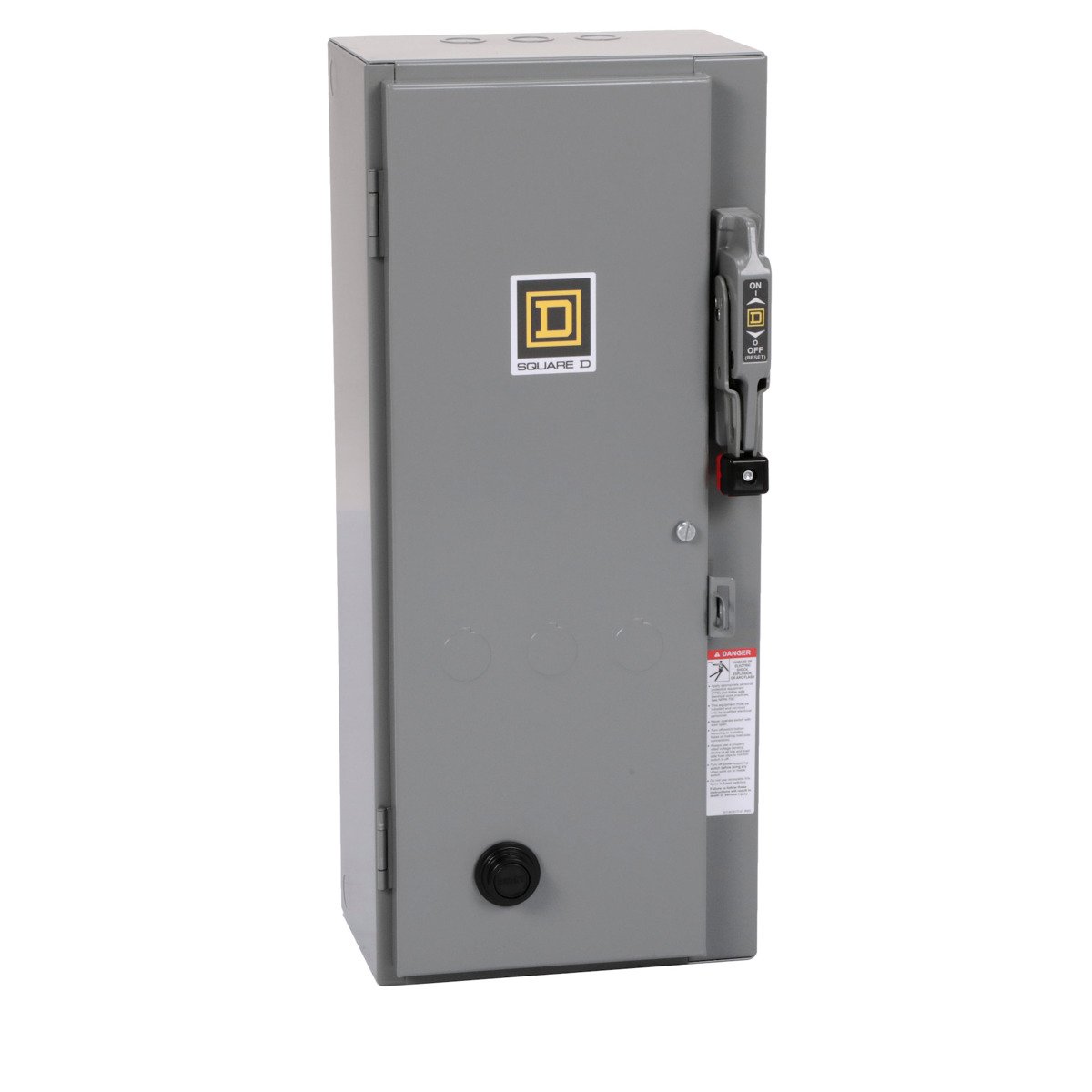

Square D 8538SBG13V02S is a Type S non-reversing fusible combination starter designed for motor control applications. These combination starters fulfill the needs for motor overload and short circuit protection all in one unit. The NEMA Size 0 starter accommodates ratings of 5 HP at 460 and 575 VAC in poly phase systems.

• Operates with a 30 Amp Class H fuse clip
• Features a 3 pole design suitable for poly phase applications
• Equipped with a 110/120 VAC 50/60 Hz operating coil for separate control

Product Highlights

This combination starter utilizes a melting alloy type overload relay that employs Type B thermal units to detect overcurrent. It is housed in a NEMA 1 general purpose enclosure to ensure protection, measuring twenty-two point five inches tall, nine point five inches wide, and eight point three four inches deep. This unit meets UL listing and CSA certification standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8538SBG13V02S
• Voltage: 600 Volt
• Enclosure: NEMA 1 painted sheet steel with external reset
• NEMA Size: 0
• Reset Type: Melting alloy with three thermal units
• Number of Poles: 3 Pole
• Country of Origin: Mexico
• Warranty Length: 18 months
