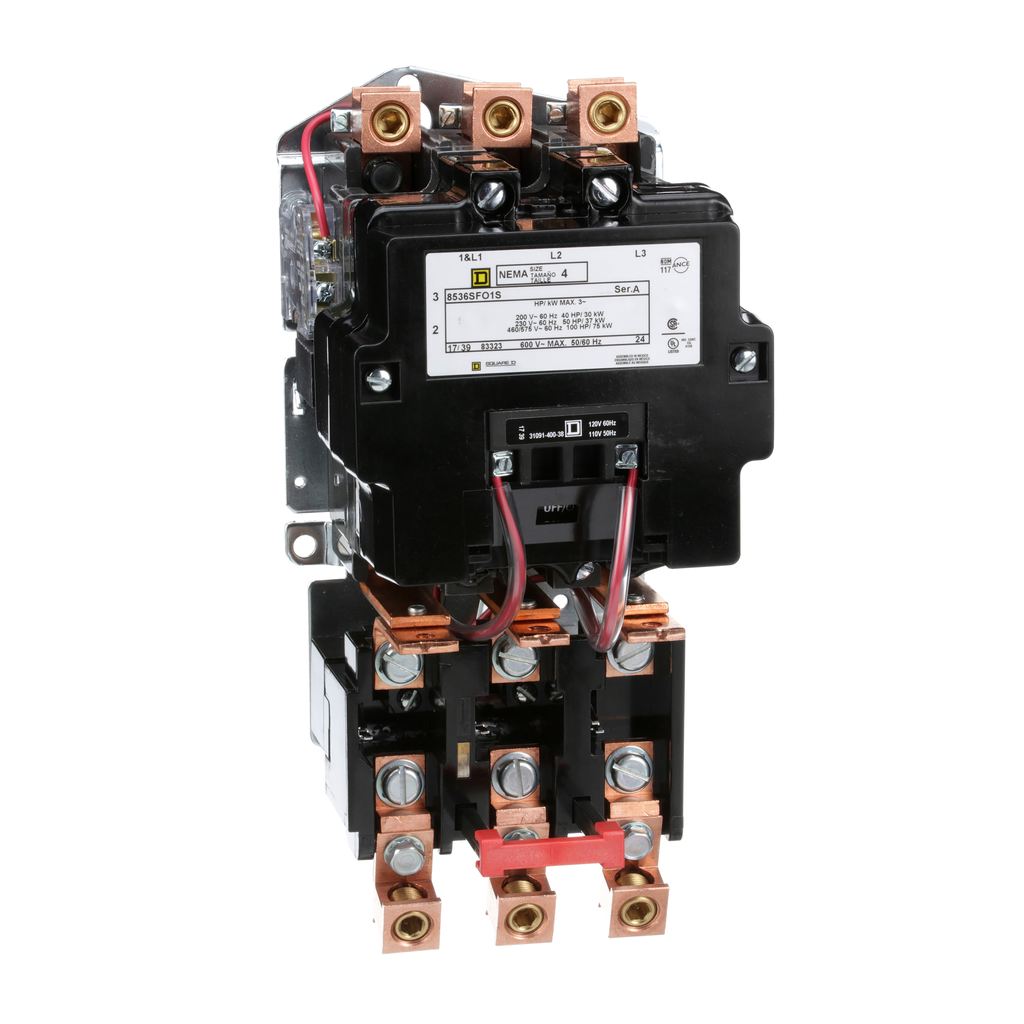

Square D 8536SFO1V02S Non-Reversing Magnetic Starter 110/120 VAC 135 Amp 100 Hp 3-Pole Open Type

Product Description

Square D offers the 8536SFO1V02S, a non-reversing magnetic starter used for full voltage starting and stopping of AC squirrel cage motors. This starter has a rating of one hundred thirty-five amperes and is designed for three-phase applications. It provides an effective solution for controlling motors with power ratings reaching up to one hundred horsepower at four hundred sixty volts.

• Rated for full voltage starting of AC motors
• Includes melting alloy type overload relay
• Has a maximum short circuit current rating of 10 kA

Product Highlights

The Square D 8536SFO1V02S starter includes key features like an open type design and is UL listed and CSA certified, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 8536SFO1V02S
• Coil Voltage: 110/120 VAC
• Current Rating: 135 Amps
• NEMA Size: 4
• Number of Poles: 3
• Height: 12.88 inches
• Width: 6.00 inches
• Depth: 6.50 inches
• Country of Origin: Mexico
