Square D 8536SFG1V02S Motor Control Starter 1000 VAC

Product Description

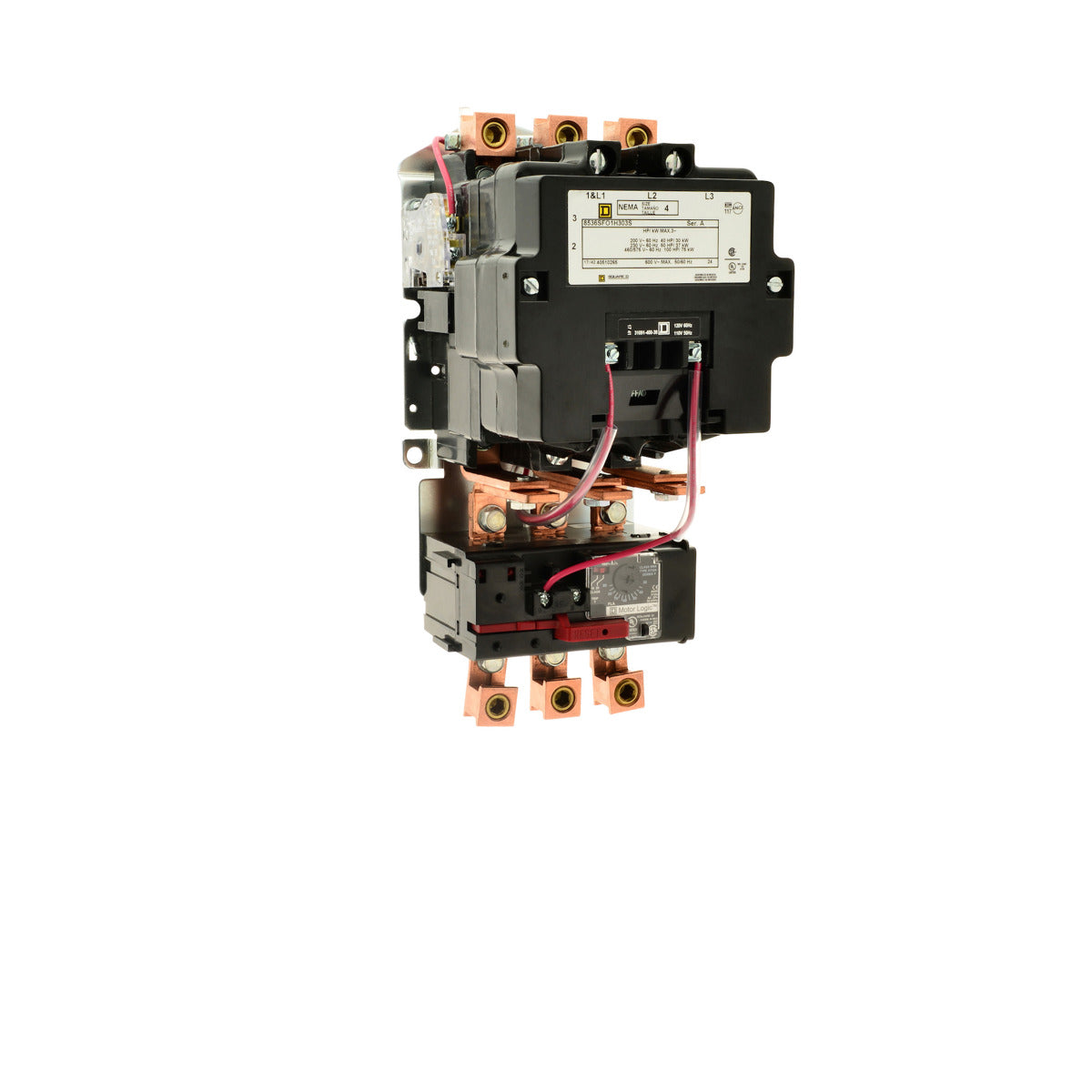

The Square D 8536SFG1V02S is a motor control starter designed for full voltage starting and stopping of AC squirrel cage motors. This non-reversing starter is rated at 135 amperes and suitable for three-phase applications with capabilities of handling up to 100 horsepower at 460 VAC. The unit features a melting alloy type overload relay that utilizes Type CC thermal units to detect overcurrent conditions. The starter also boasts a maximum short circuit current rating of ten kA, making it a robust choice for various industrial environments.

• 135 ampere rating for motor control
• Three-phase motor starter for up to 100 HP
• Utilizes melting alloy thermal overload for reliable protection

Product Highlights

This NEMA Size 4 motor starter includes a painted sheet steel enclosure that measures twenty-five inches in height, eleven inches in width, and nine inches in depth, offering protection in diverse operating conditions. It supports a variety of voltage configurations and comes with replaceable coils.

Product Information

Standard Information

• Catalog Number: 8536SFG1V02S
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 600 VAC
• Enclosure Type: NEMA 1 painted sheet steel
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Coil Voltage: 120 VAC; 110 VAC
• Current Rating: 135 Amps
• Country of Origin: Mexico
• Warranty Length: 18 months
