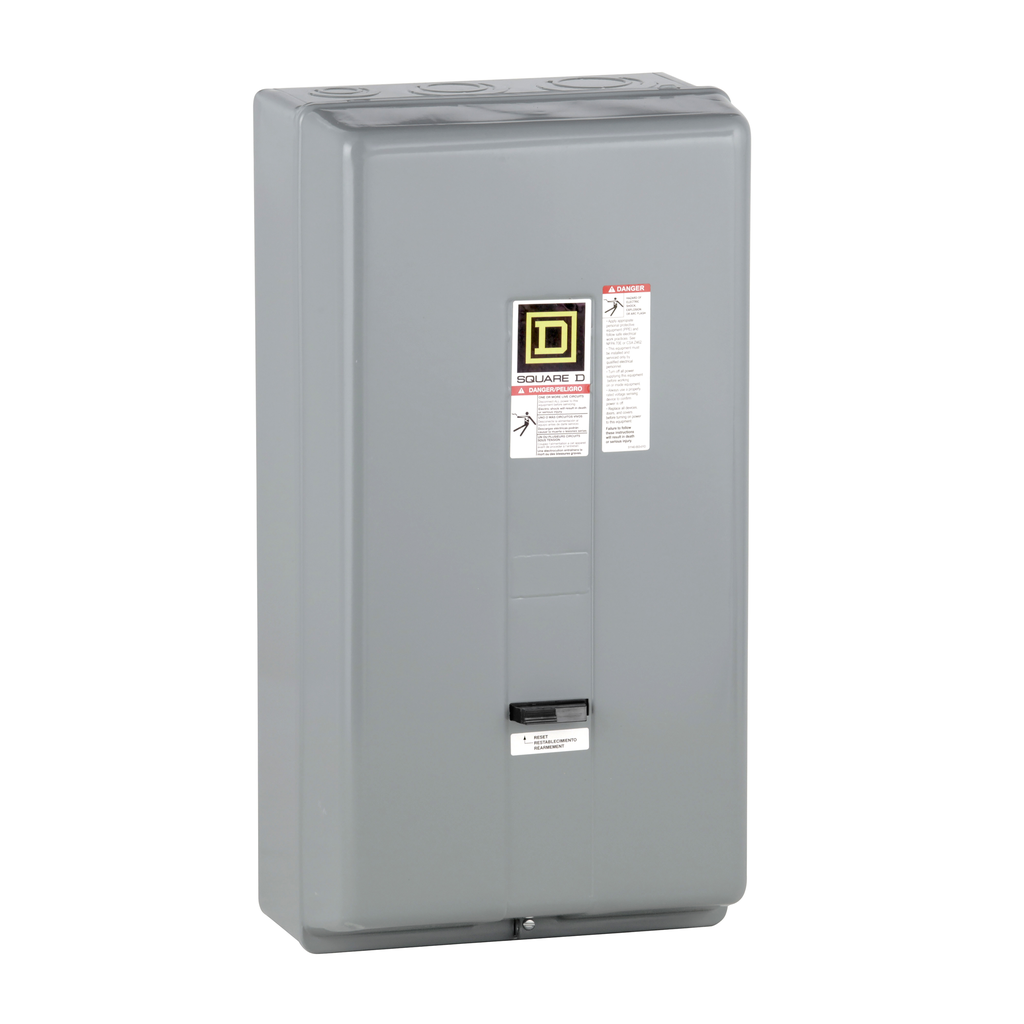

Square D 8536SEG1V02S 110/120 VAC 90 Amp 50 Hp 3-Pole NEMA 1 Full Voltage Non-Reversing Magnetic Starter

Product Description

The Square D 8536SEG1V02S is a full voltage non-reversing magnetic starter. It features a 90 ampere rating and is designed for 110/120 VAC operation. This product is suitable for starting and stopping AC squirrel cage motors.

• Three-phase ratings include 25 HP at 200 VAC, 30 HP at 230 VAC, and 50 HP at 460 and 575 VAC.
• It includes a melting alloy type overload relay with Type CC thermal units for overcurrent protection.
• UL listed and CSA certified for reliability and safety.

Product Highlights

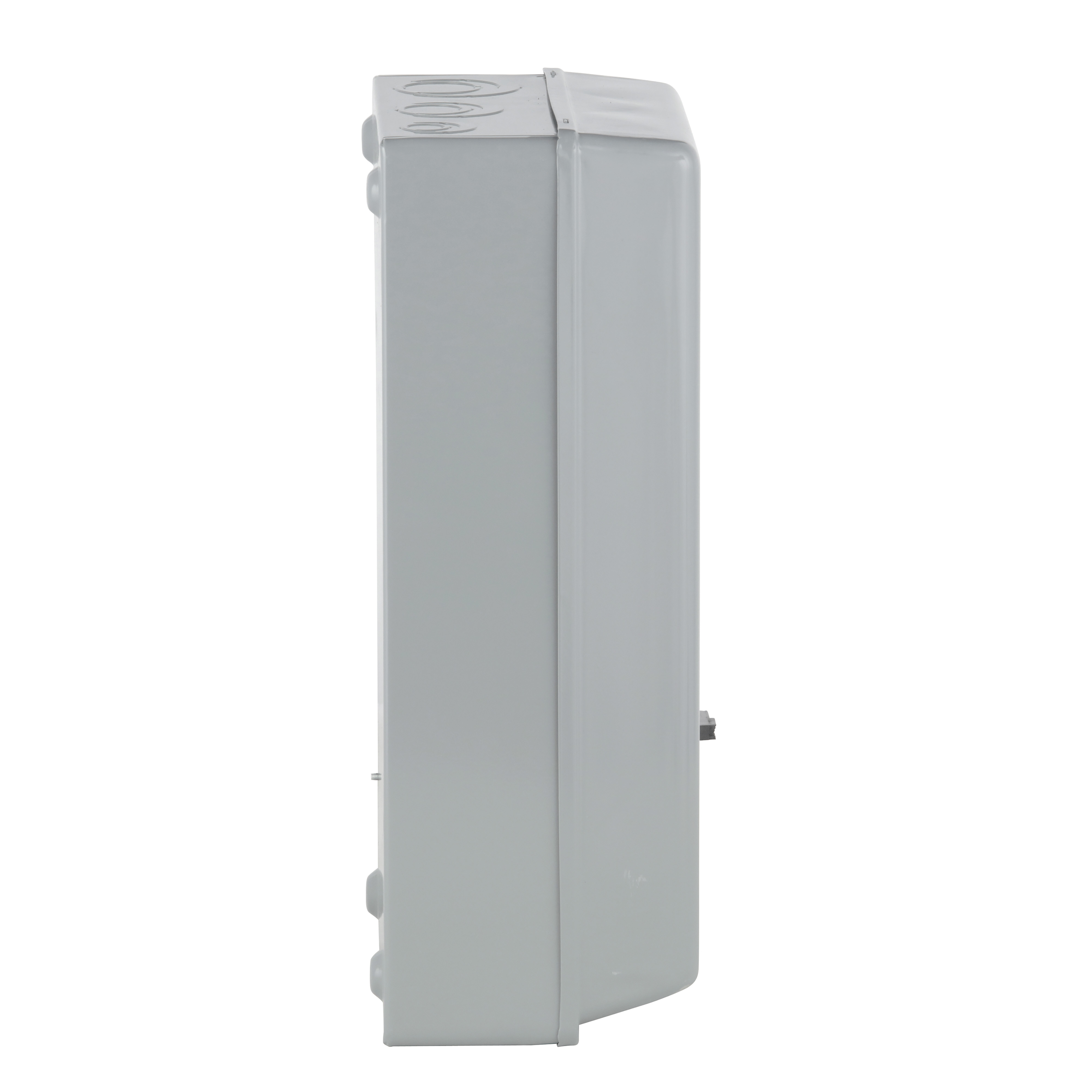

This starter is enclosed in a painted sheet steel NEMA 1 case, offering durable protection. It is ideal for industrial applications where reliable motor control is essential.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: 8536SEG1V02S
• Voltage Rating: 110/120 VAC
• Current Rating: 90 Amp
• Number of Poles: 3
• NEMA Size: 3
• Operating Frequency: 50/60 Hz
• Enclosure Type: NEMA 1 Painted Sheet Steel
• Dimensions: 21.81 inches tall, 11.44 inches wide, 8.38 inches deep
