Square D 8536SDO1V06H30 Starter 600VAC 45 Amp

Product Description

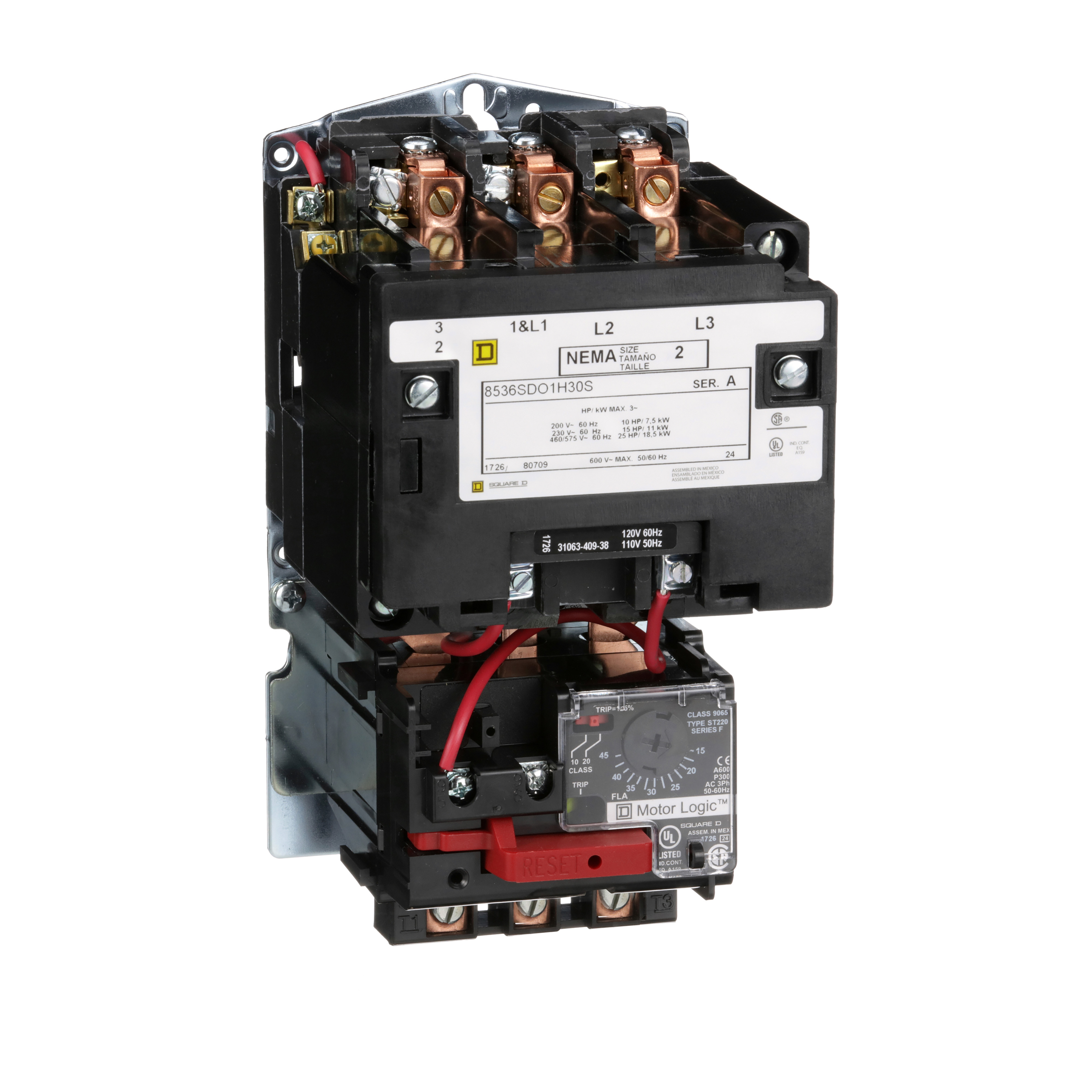

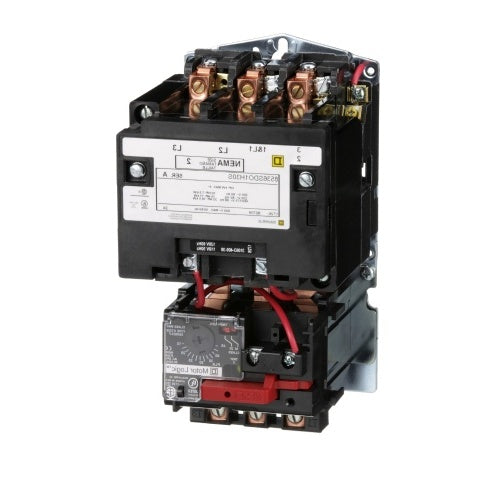

The Square D 8536SDO1V06H30 Type S NEMA motor starter is used for full voltage starting and stopping of AC squirrel cage motors. This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating. It features a Motor Logic overload relay with a 15A to 45A range to sense over current conditions and a 440/480 VAC 50/60 Hz operating coil.

• Used for full voltage starting and stopping of AC squirrel cage motors
• 3 pole NEMA Size 2 non-reversing starter
• Motor Logic overload relay with a 15A to 45A range

Product Highlights

This open type starter is UL listed and CSA certified, with a 100 kA maximum SCCR per UL508A when protected by an appropriate circuit breaker or fuse.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8536SDO1V06H30
• Country of Origin: Mexico

Technical Specifications

• Type: Full Voltage, Non Reversing
• Brand: SQUARE D
• Current: 45 Amp
• Voltage: 600 VAC
• Amperage: 45 Amp
• Enclosure: Open
• NEMA Size: 2
• Sub Brand: S
• Reset Type: SOLID STATE MOTOR LOGIC CLASS 10/20
• Applications: USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
• Coil Voltage: 440 V AC 50 Hz/480 V AC 60 Hz
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Line Rated Current: 45 A
• Manufacturer: Schneider Electric
• Power Rating/Voltage: 10 HP at 200 VAC 50/60 Hz, 15 HP at 230 VAC 50/60 Hz, 25 HP at 460/575 VAC 50/60 Hz 3 Phase, 7.5 KW at 200 VAC 50/60 Hz, 11 KW at 230 VAC 50/60 Hz, 18.5 KW at 460/575 VAC 50/60 Hz 3 Phase
• Current Rating: 45 Ampere
• Phase: 3
• Motor FLA: 15 to 45 Ampere
• Enclosure Type: Open
• Overloads: Class 10/20 Solid State Overload Relay
• Construction: Standard NEMA
• Approval: UL, CSA, CE
• Alternate Catalog Number: 8536SDO1V06H30
• Amperage Rating: 45
• Application: Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors
• Catalog Number: 8536SDO1V06H30
• Connection: Screw clamp terminals
• Connection Type: Screw Clamp
• EU RoHS Indicator: Y
• Frequency Rating: 50/60
• Motor Power: 10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC
• Number Of Poles: 3
• Operating Temperature: 0 to 40
• Overload Relay: Motor Logic™ Solid State
• Wattage: 7.5 kW at 200 VAC/11 kW at 230 VAC/18.5 kW at 460 VAC/18.5 kW at 575 VAC
• Starter Enclosure Type: Open
• Starter NEMA Size: 2
• Starter Coil Voltage: 480 VAC
• Starter HP: 10 HP @ 208 VAC 3 Phase
• Component: NEMA Starter
• Starter Overload Type: Thermal Overload Alloy
• Sub Component: Non-Reversing Starters
• Starter Poles: Three Pole
• Starter Amperage: 45 Amp
• Starter Actions: Type S
• MPN: 8536SDO1V06H30
• Condition: New
