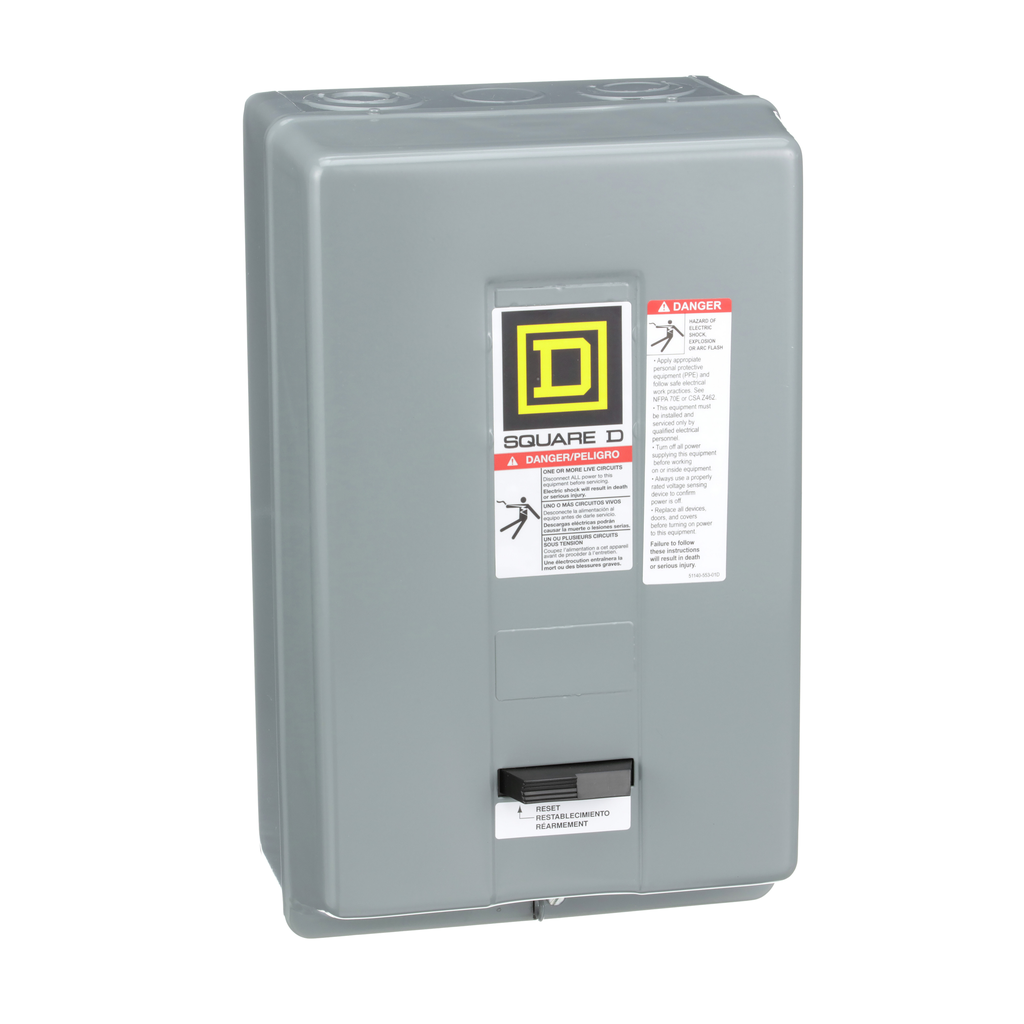

Square D 8536SDG1V03 Type-S Non-Reversing Motor Starter 45A 3 Pole 3 Phase 240VAC Coil

Product Description

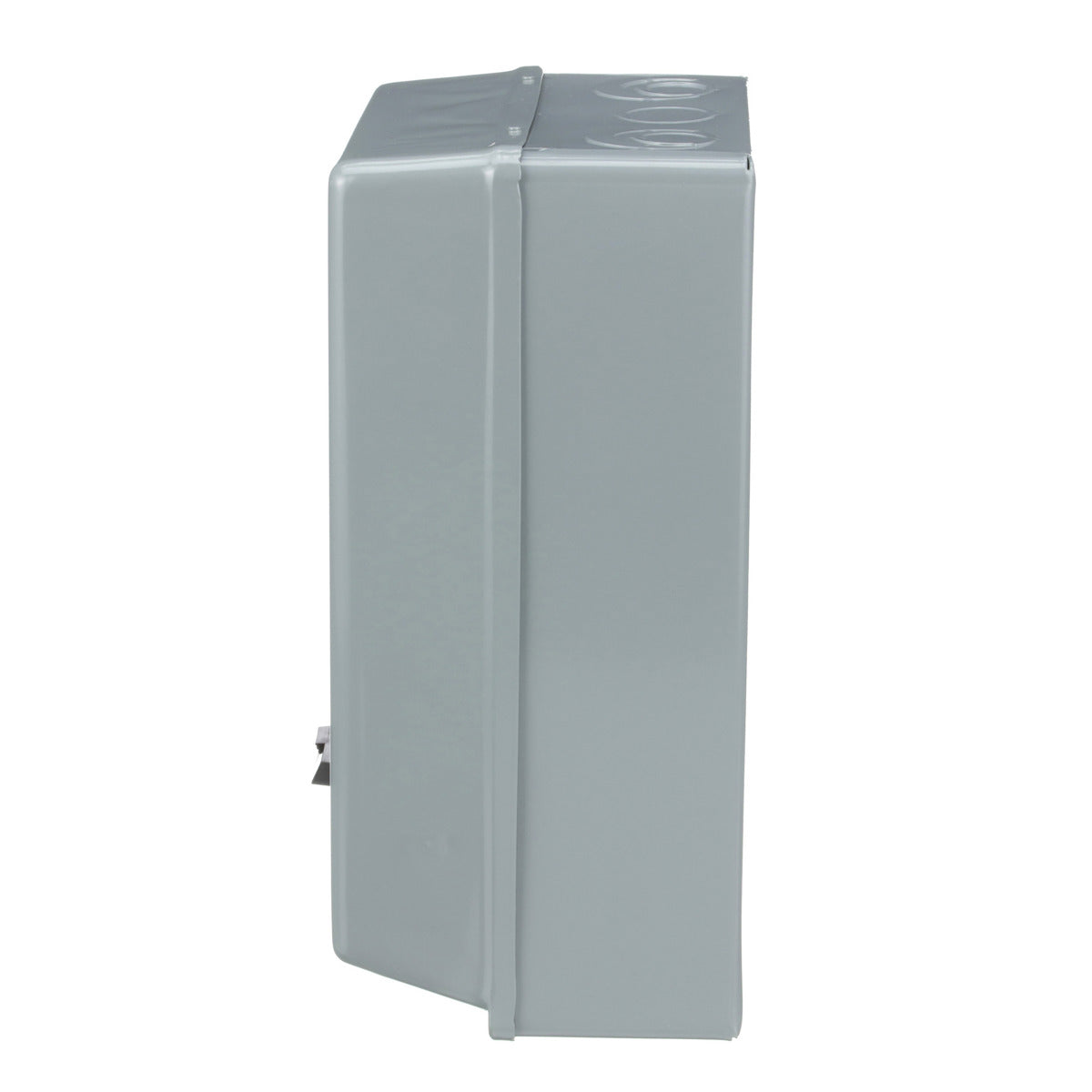

The Square D 8536SDG1V03 is a Type-S non-reversing motor starter designed for full voltage control of AC squirrel cage motors. Rated at 45 amperes, this motor starter operates with a 240 volt AC coil and can manage up to 810 amperes. The motor starter supports three-phase applications with horsepower ratings of 10 HP at two hundred volts, 15 HP at two hundred thirty volts, and 25 HP at four hundred sixty volts. Equipped with a melting alloy type overload relay, it uses Type B thermal units for sensing overcurrent conditions. The NEMA 1 enclosure is constructed from painted sheet steel and measures twelve point sixty-nine inches in height, seven point eighty-one inches in width, and six point thirty-one inches in depth. Accessories compatible with Type S starters are available.

• Type-S motor starter with melting alloy overload relay.
• Compatible with various voltages and has replaceable coils.
• UL listed and CSA certified.

Product Highlights

The Square D 8536SDG1V03 starter offers reliable control of AC motors, ideal for industrial and commercial applications requiring high operational safety standards.

Product Information

Standard Information

• Catalog Number: 8536SDG1V03
• Brand: Square D

Technical Specifications

• Rated Current: 45 A
• Number of Poles: 3 Pole
• Voltage Rating: 600 VAC
• Enclosure Type: NEMA 1 Paint
• Thermal Overload Type: Melting Alloy 3 Thermal Units
• Coil Voltage: 220/240 VAC at 50/60 Hz
• Country of Origin: Mexico
• Warranty Length: 18 months
