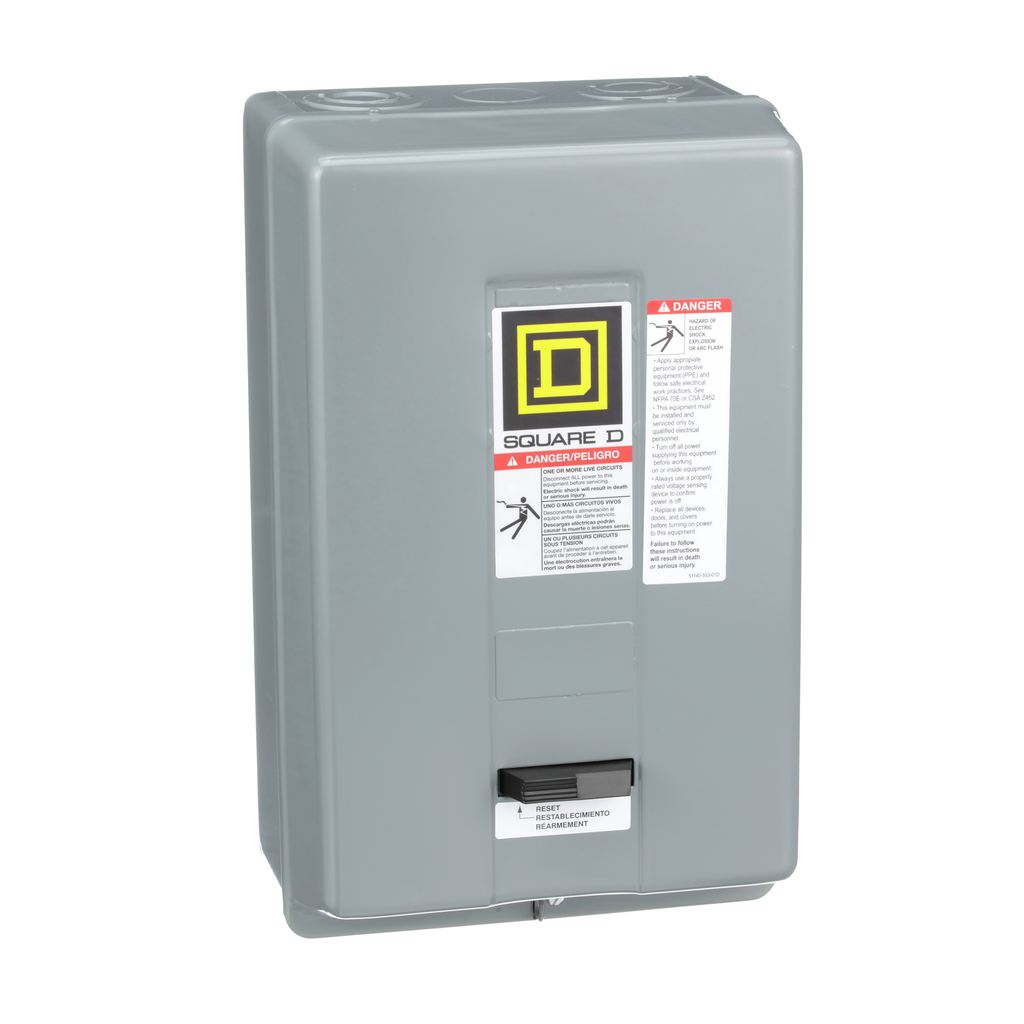

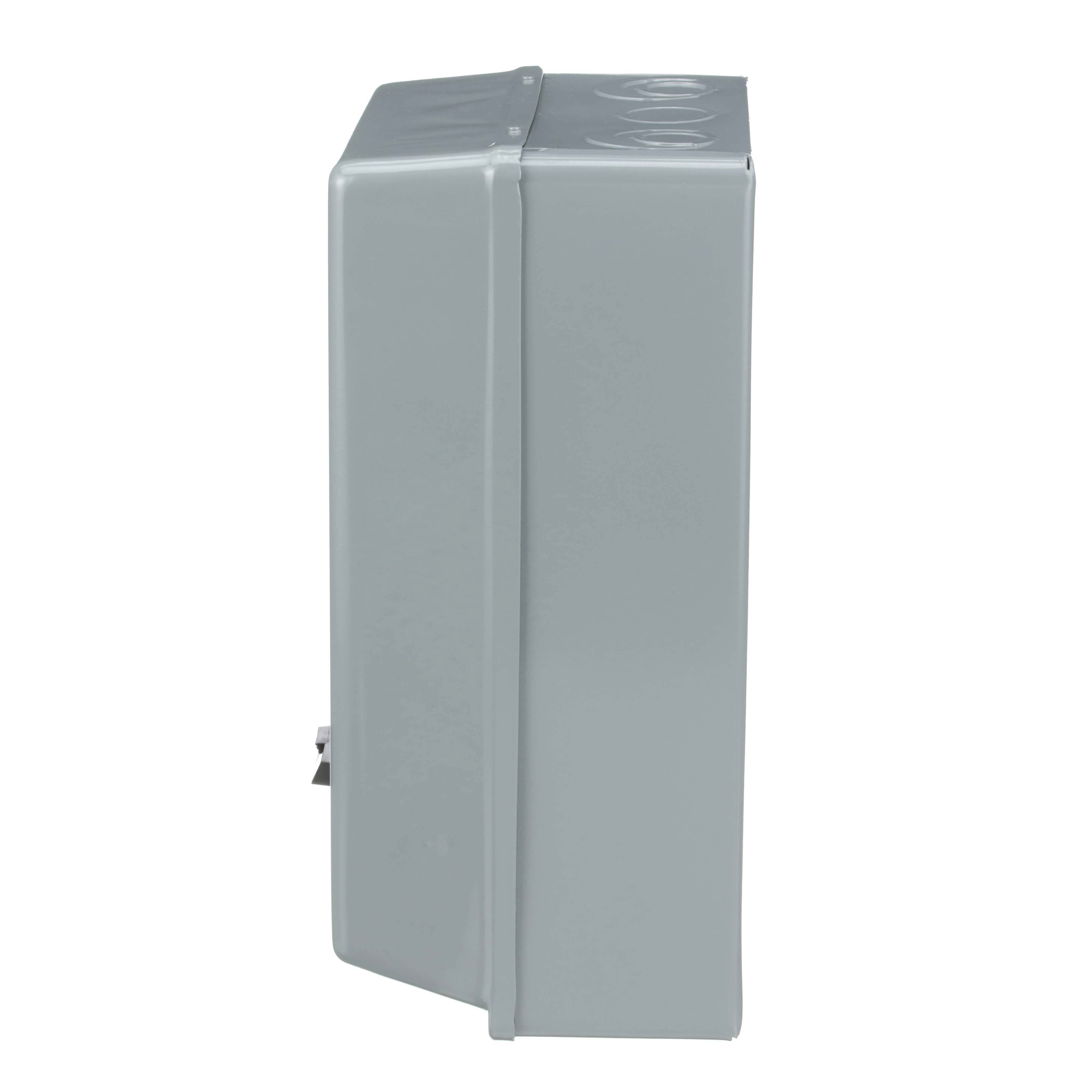

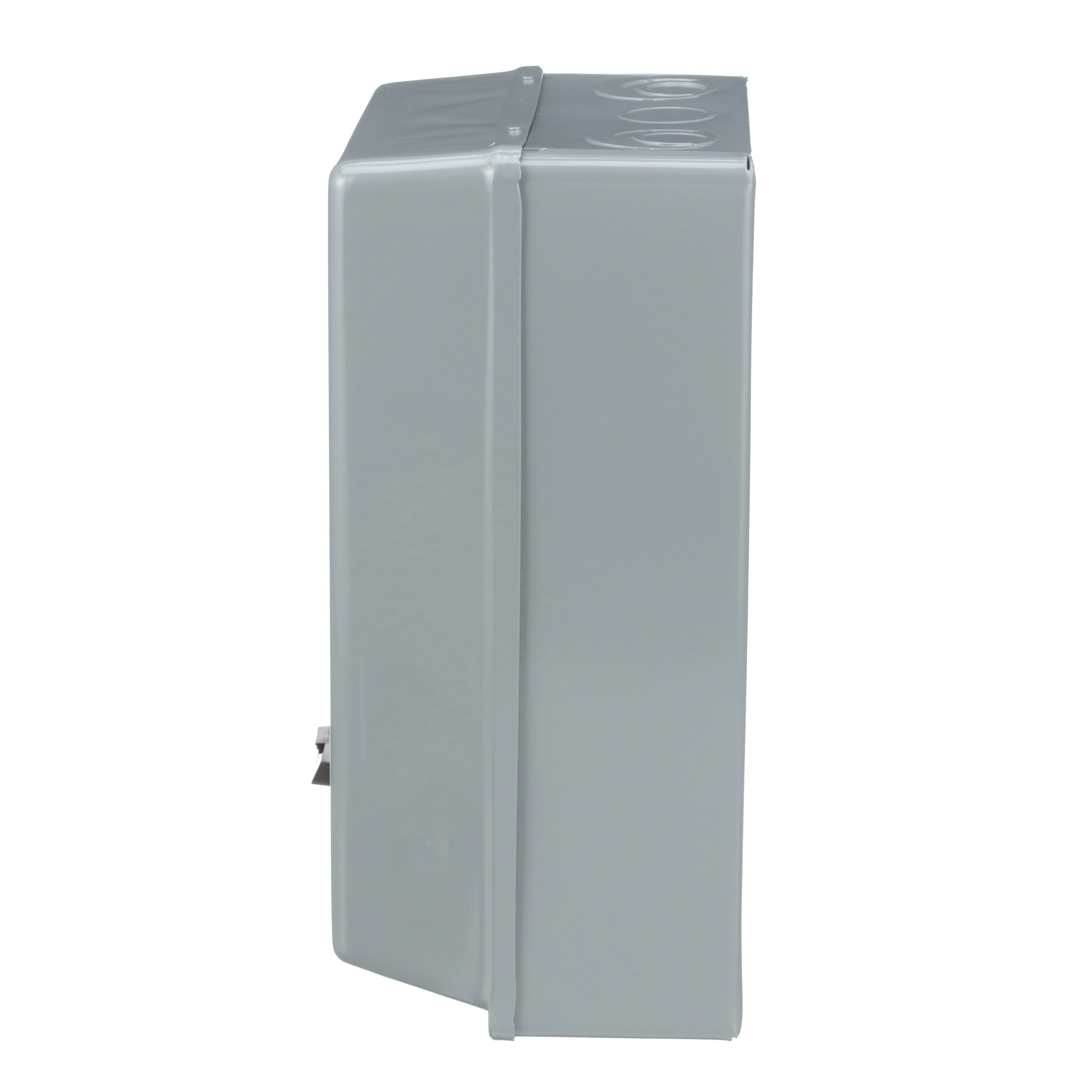

Square D 8536SDG1V02S Type-S Non-Reversing Motor Starter 45A 3Pole 3Phase 120VAC Coil

Product Description

Square D 8536SDG1V02S is a Type-S non-reversing motor starter designed for full voltage control of AC squirrel cage motors. It features a rating of 45 amperes suitable for various industrial applications. This 3-pole NEMA Size 2 starter operates at voltages up to 600 VAC and supports 10 HP at 200 VAC, 15 HP at 230 VAC, and 25 HP at 460 and 575 VAC. It includes a melting alloy type overload relay for current sensing and offers a maximum SCCR of 5 kA when appropriately protected. The operating coil is rated for 110/120 VAC at 50/60 Hz.

• Rated for 600 volts maximum and up to 810A
• Available in NEMA Size 00 to NEMA Size 7
• Includes a replaceable coil for easy maintenance

Product Highlights

This motor starter is UL listed and CSA certified. It provides reliable operation in controlling AC motors and ensures safety with its robust design.

Product Information

Standard Information

• Brand: Square D
• MPN: 8536SDG1V02S

Technical Specifications

• Current Rating: 45 Amp
• Voltage Rating: 600 VAC
• Enclosure: NEMA 1 Painted Sheet Steel
• Number of Poles: 3
• Number of Phases: 3 Phase
• Coil Voltage: 110 V AC 50 Hz; 120 V AC 60 Hz
• Thermal Overload Type: Melting alloy 3 thermal units
• Applications: For starting and stopping AC squirrel cage motors
