Square D 8536SCG3V06H30 NEMA Motor Start 27A (Size 1) Replacement MPN

Product Description

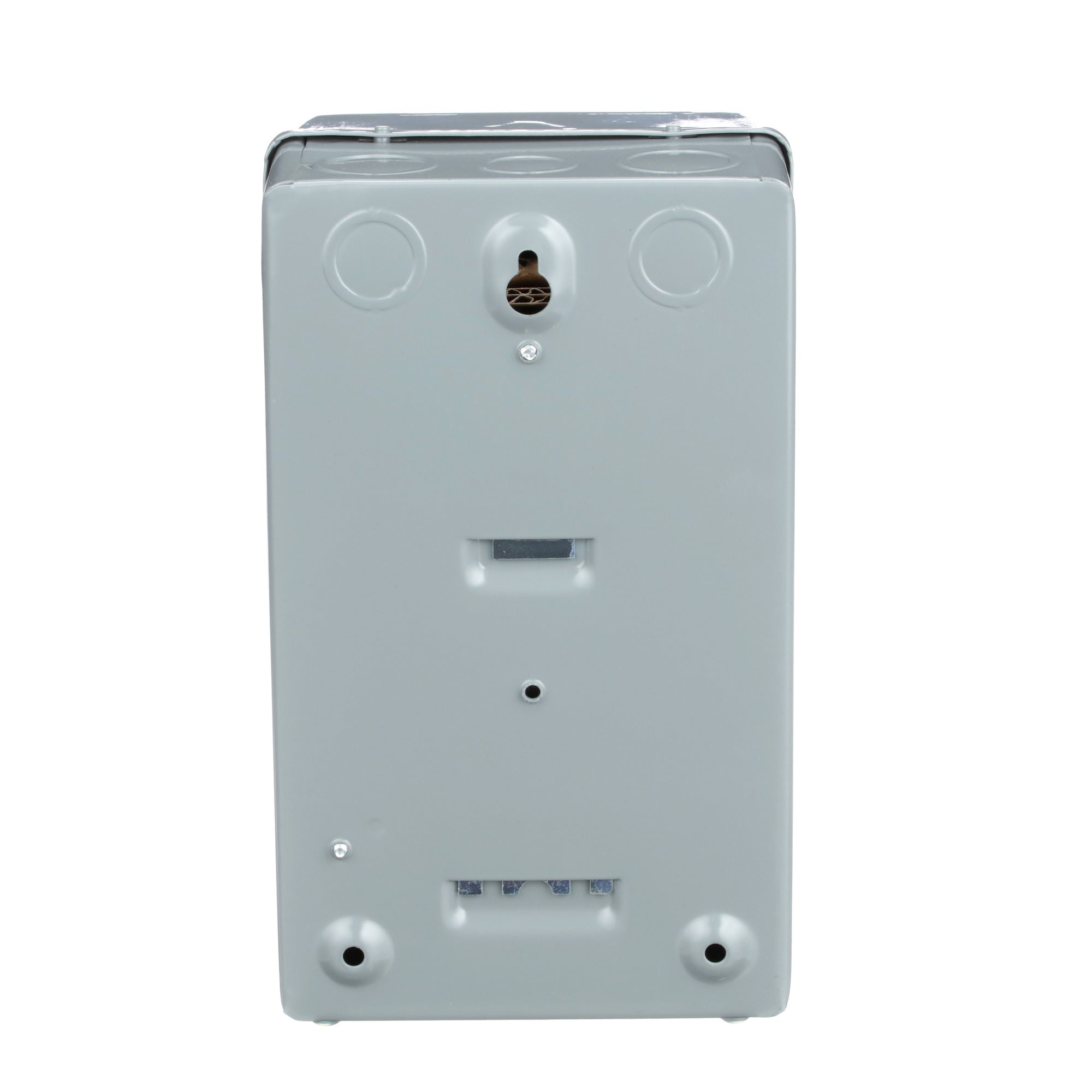

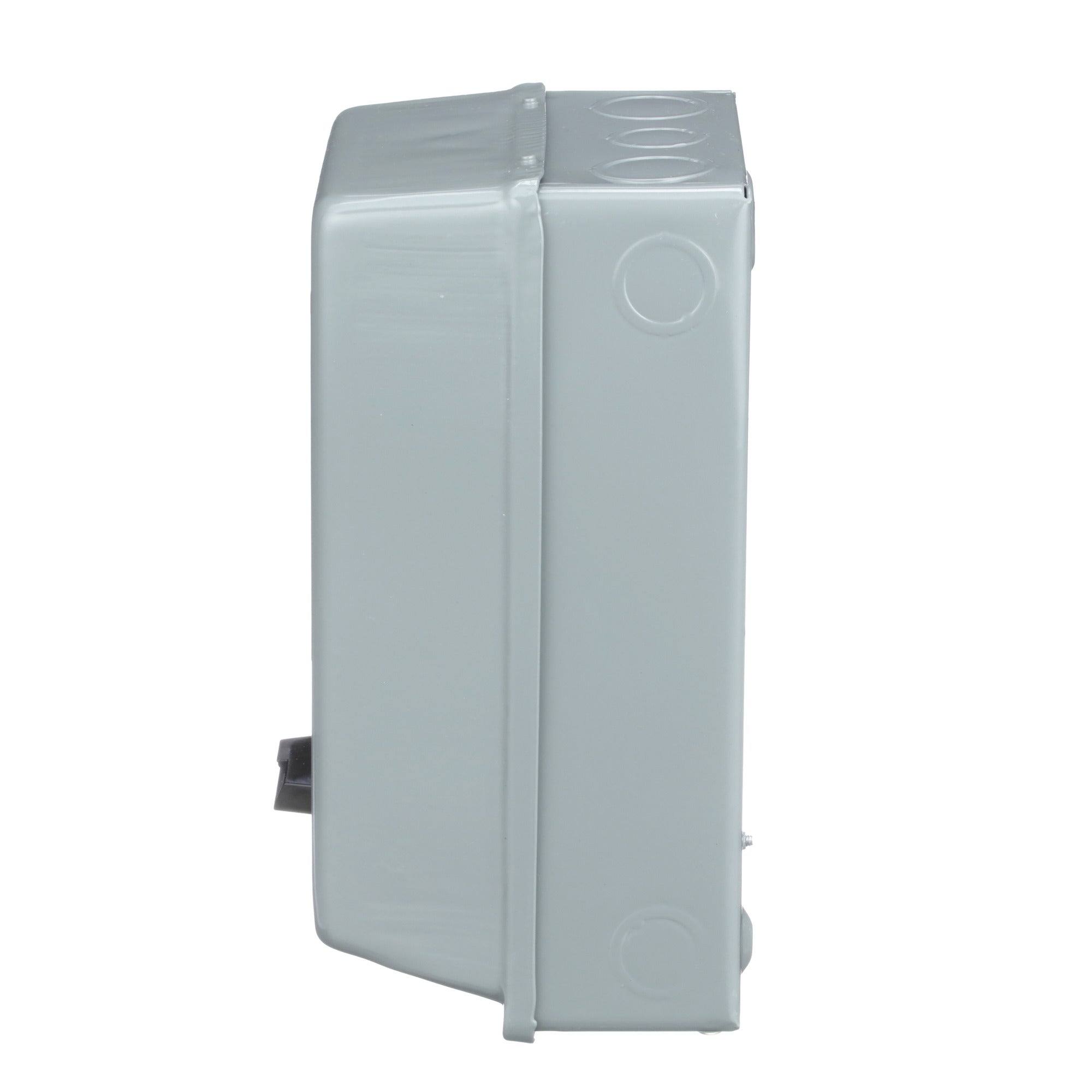

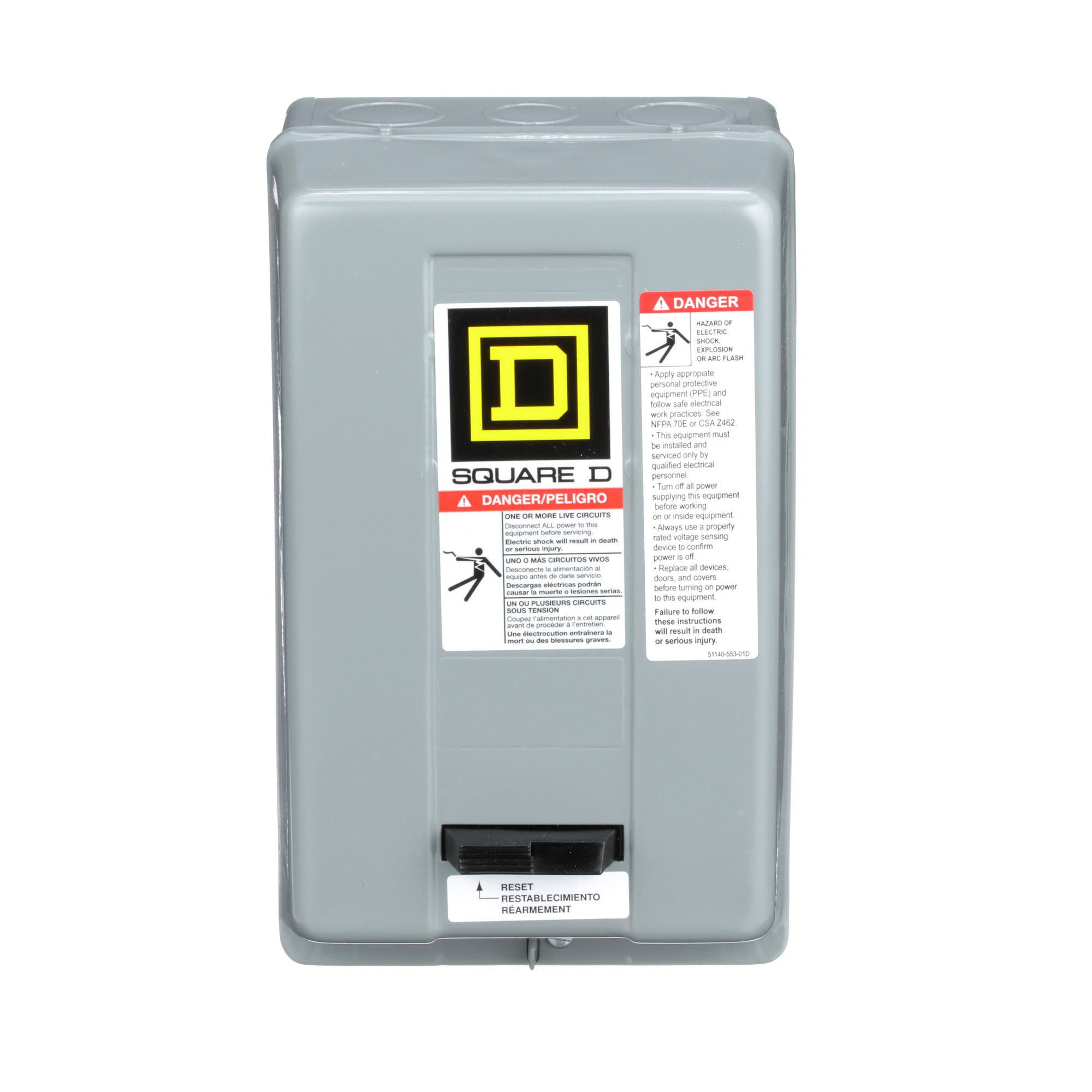

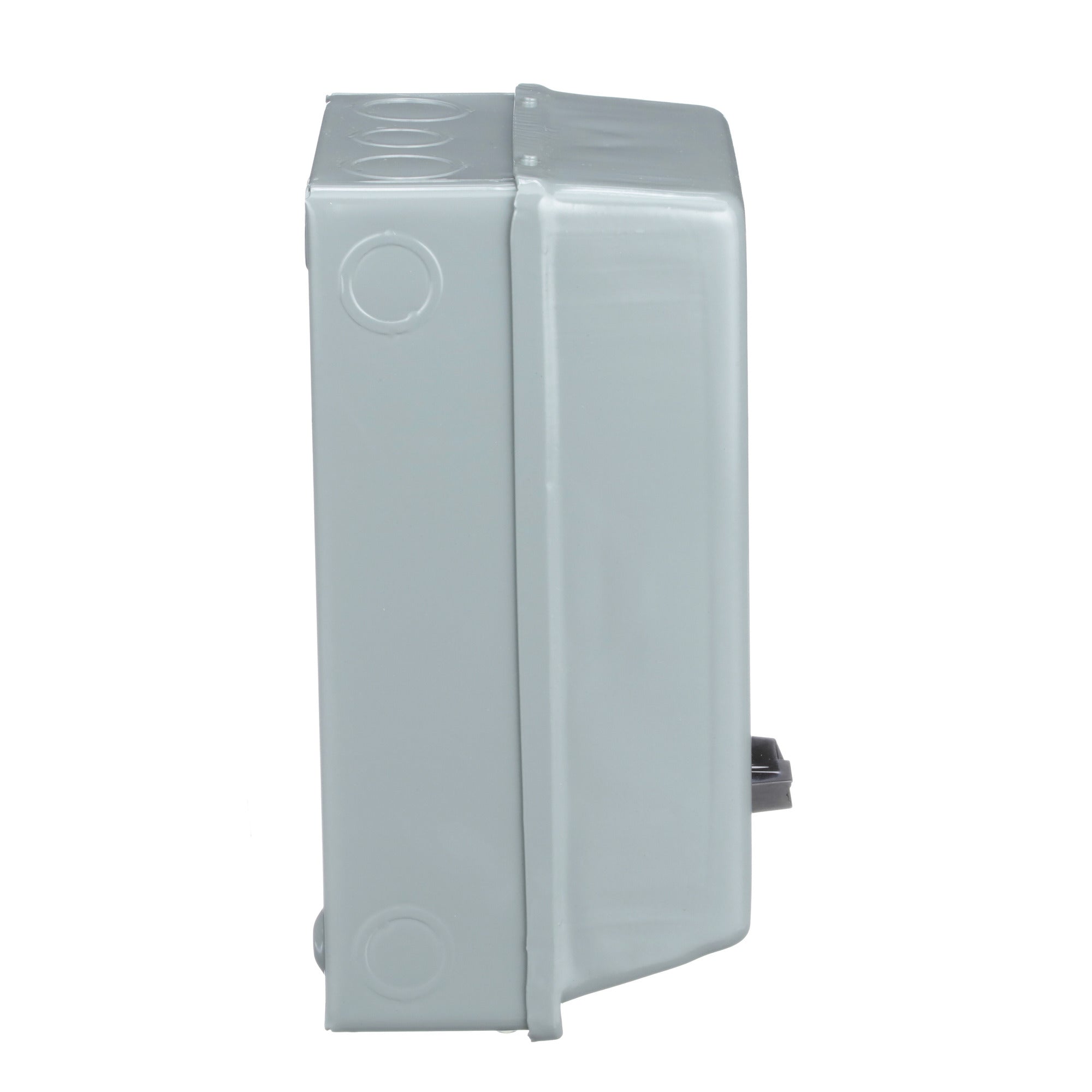

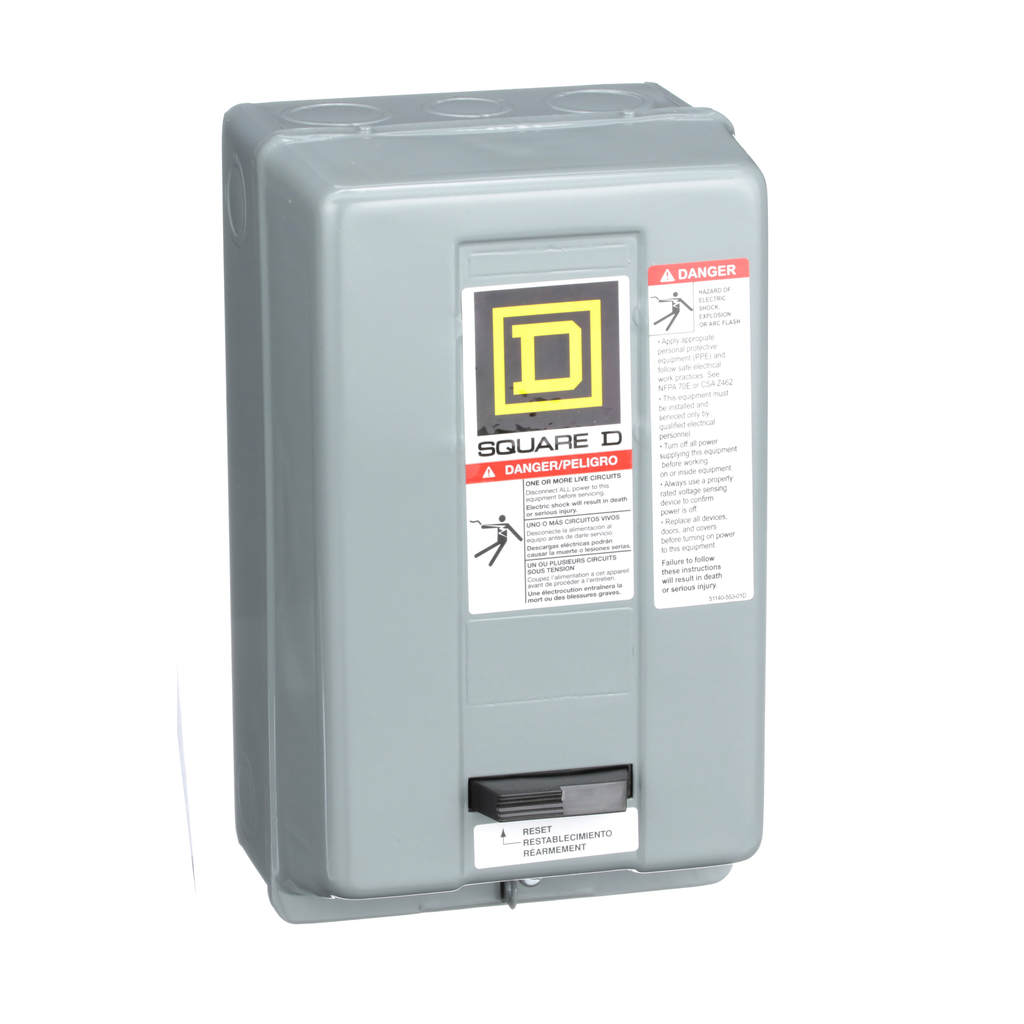

The Square D 8536SCG3V06H30 is a NEMA motor starter designed for the direct on-line starting and stopping of AC squirrel cage motors. This Type S motor starter operates at a current rating of 27 amperes and supports three-phase operations with power ratings of up to 10 horsepower at 460 and 575 volts AC. The device features a Motor Logic overload relay that effectively monitors overcurrent conditions within a range of 9A to 27A. Notably, the starter also possesses a high short circuit current rating (SCCR) of 100 kA, compliant with UL508A standards, making it suitable for various industrial applications. The enclosure is constructed from painted sheet steel, ensuring durability and protection, and measures ten inches in height, six inches in width, and five point fifty-six inches in depth. Accessories are available to enhance functionality, and this starter is UL listed and CSA certified.

• Type S NEMA motor starter with a 27 ampere rating
• 100 kA maximum SCCR
• Includes Motor Logic overload relay

Product Highlights

This motor starter ensures reliable performance in full-voltage applications.

Product Information

Standard Information

• Catalog Number: 8536SCG3V06H30
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Current Rating: 27 Amps
• Voltage Rating: 600 Volts
• Number of Poles: 3 Poles
• NEMA Size: 1
• Coil Voltage: 480 VAC 60 Hz / 440 VAC 50 Hz
• Enclosure Type: NEMA 1
• Country of Origin: Mexico
