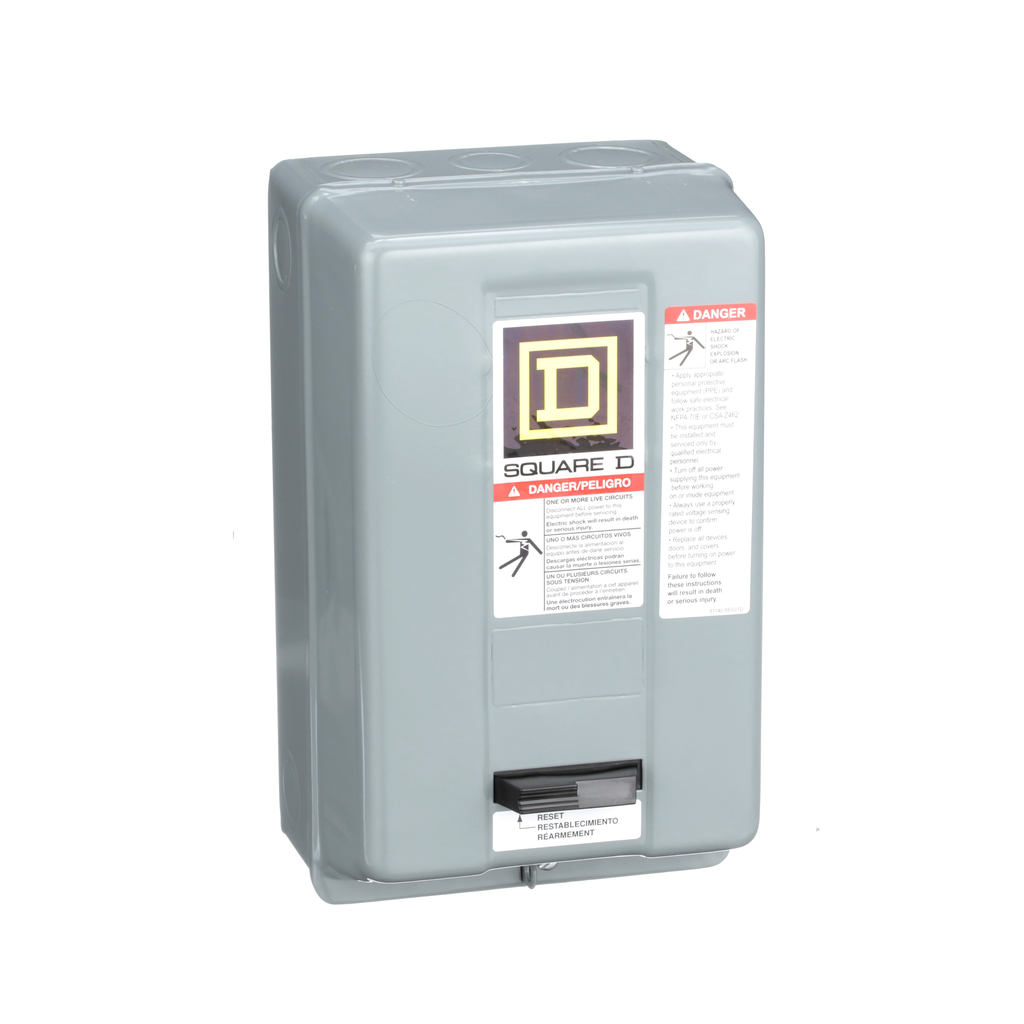

Square D 8536SCG3V06 Motor Control Starter 27 Amp Non-Reversing NEMA 1

Product Description

The Square D 8536SCG3V06 is a NEMA motor starter designed for full voltage starting and stopping of AC squirrel cage motors. This non-reversing motor starter supports ratings of up to 27 amperes with 3 phase capabilities. It operates efficiently at 200 and 230 volts for up to 7.5 horsepower and up to 10 horsepower at 460 and 575 volts.

• Full voltage motor control up to 810 amperes.
• Features a painted sheet steel NEMA 1 enclosure.
• Includes a melting alloy overload relay.

Product Highlights

This motor starter includes replaceable coils and wide accessibility to various accessories, ideal for motor control applications in industrial environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: 8536SCG3V06
• Current Rating: 27 Amps
• Voltage Rating: 600 Volts AC
• Horsepower Rating: 7.5 HP at 200/230 V, 10 HP at 460/575 V
• NEMA Size: 1
• Number of Poles: 3
• Enclosure Type: NEMA 1 Painted Sheet Steel
• Operating Coil: 440/480 VAC, 50/60 Hz
