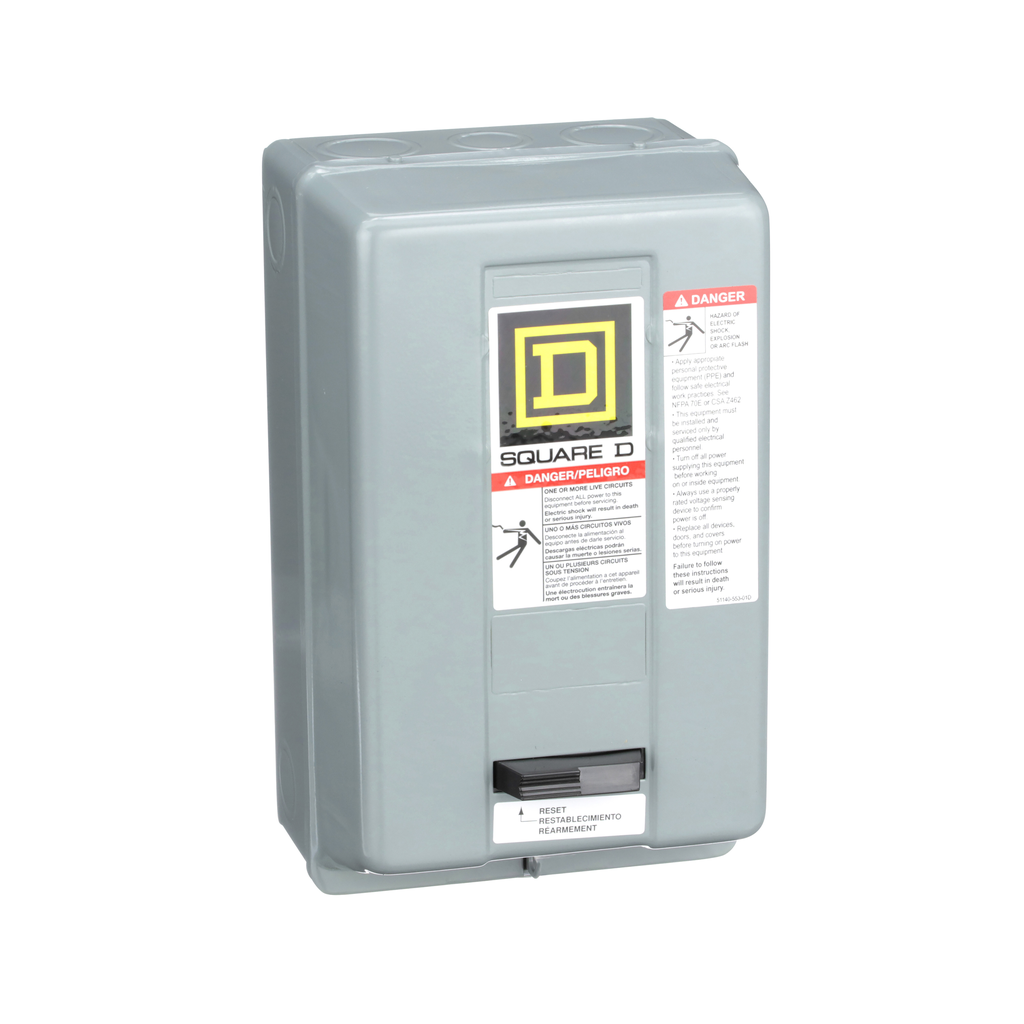

Square D 8536SBG2V08H30 208 VAC 18 Amp 5 Hp 3-Pole NEMA 1 Full Voltage Non-Reversing Magnetic Starter

Product Description

Square D 8536SBG2V08H30 is a non-reversing magnetic starter used for full voltage starting and stopping of AC squirrel cage motors. This 3-pole starter has a rating of 18 amperes and supports various motor applications. It is designed for 3-phase motors with ratings of 3 horsepower at 200 and 230 VAC and 5 horsepower at 460 and 575 VAC.

• Rated for 18 Amperes
• Works with 3 Phase Motors
• Includes Motor Logic overload relay

Product Highlights

This starter features a Motor Logic overload relay with a sensing range of 6 to 18 Amperes, ensuring protection against overcurrent conditions. It is suitable for a 208 VAC operating coil and includes a sturdy enclosure for protection.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Voltage: 600 VAC
• Amperage: 18 Amps
• Coil Voltage: 208@60Hz V
• Number of Phases: 3 Phase
• Number of Poles: 3 Pole
• SCCR: 100 kA

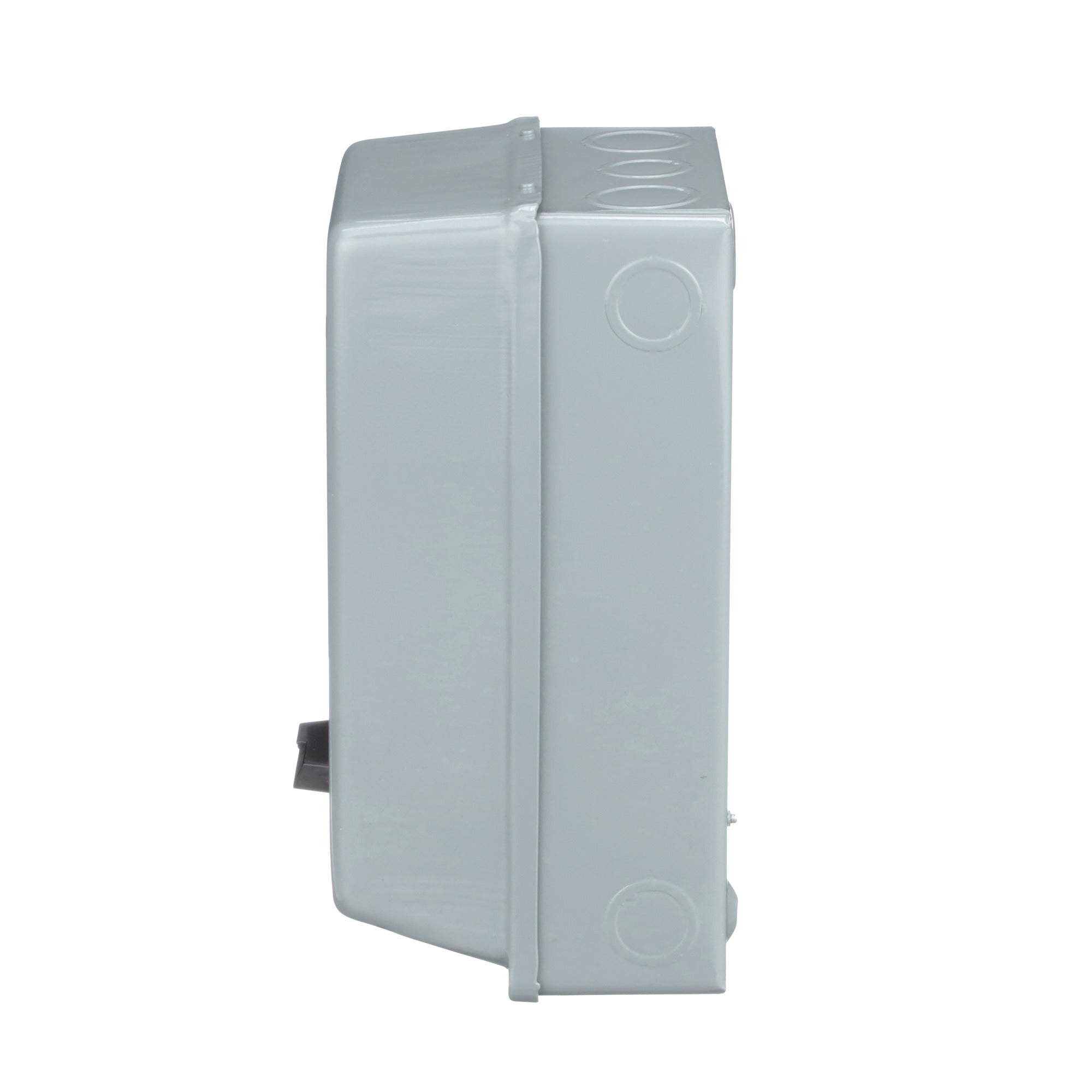

• Enclosure Type: NEMA 1 Painted Sheet Steel
• Dimensions: 10.00 inches tall, 6.00 inches wide, 5.56 inches deep
