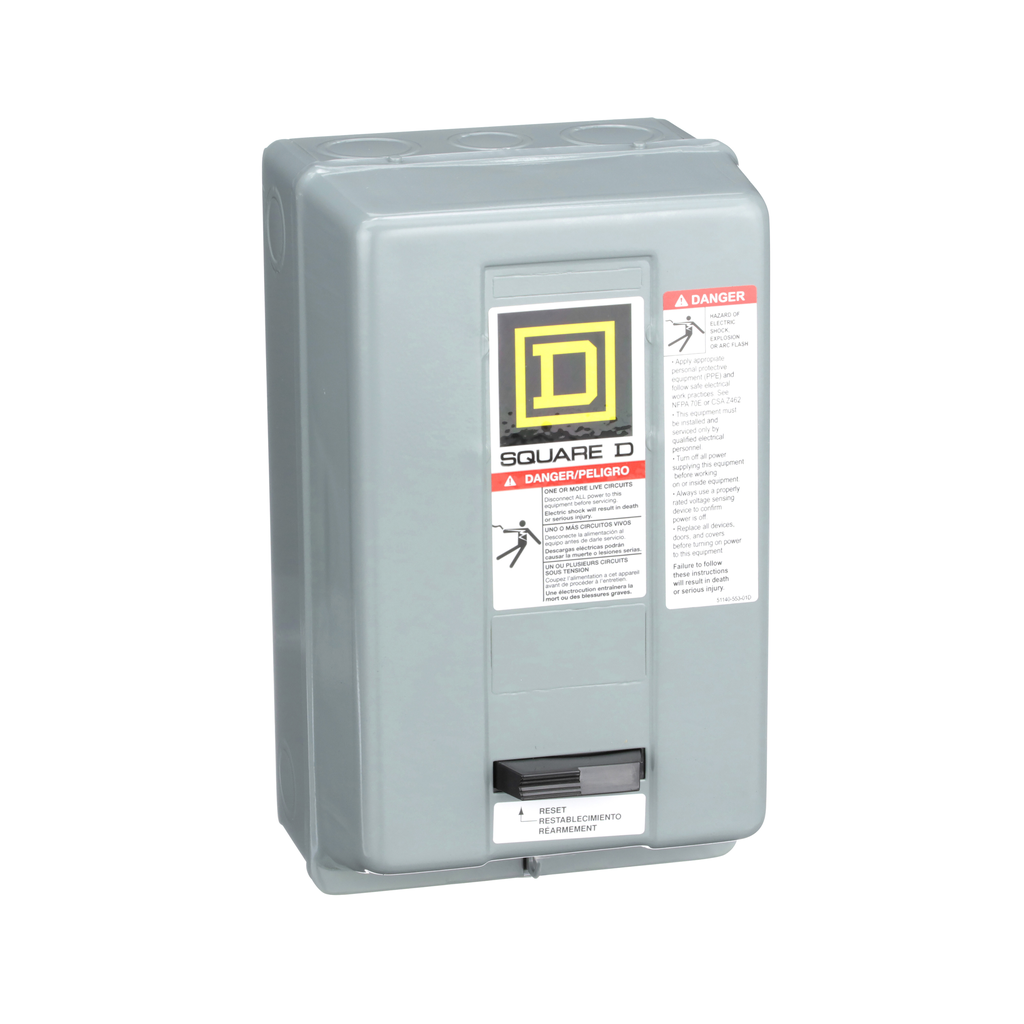

Square D 8536SBG2V06 Motor Starter 18A 3Pole NEMA Size 0 Melting Alloy 480VAC Coil

Product Description

The Square D 8536SBG2V06 Non-Reversing NEMA Motor Starter is designed to manage full voltage starting and stopping of AC squirrel cage motors. Utilizing a melting alloy overload relay, this device ensures optimal operational safety by sensing over-current conditions effectively.

• Robust 18 ampere, 3 pole motor starter.
• Operates with a coil voltage of 480 VAC.
• Encased in a durable NEMA 1 painted sheet steel enclosure.

Product Highlights

Equipped with a 5 kA maximum SCCR, the Square D starter provides reliable protection when coupled with a suitable circuit breaker or fuse. It features Type B thermal units for advanced motor protection and supports a 3 phase motor rating, capable of managing up to 5 HP at 460 and 575 VAC.

Product Information

Standard Information

• Brand: Square D
• Type: Motor starter; No control units

Technical Specifications

• Current: 18 Amp
• Voltage: 600 Volt
• Enclosure: NEMA 1 PAINTED SHEET STEEL
• NEMA Size: 0
• Reset Type: MELTING ALLOY, 3 THERMAL UNITS
• Coil Voltage: 440 V AC 50 Hz; 480 V AC 60 Hz
• Power Supply: 480VAC@60HZ - 440VAC@50HZ
• TC Connection: Screw clamp terminals
• Certifications: CSA, NEMA, UL Listed
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Country of Origin: Mexico
• Warranty Length: 18 months
