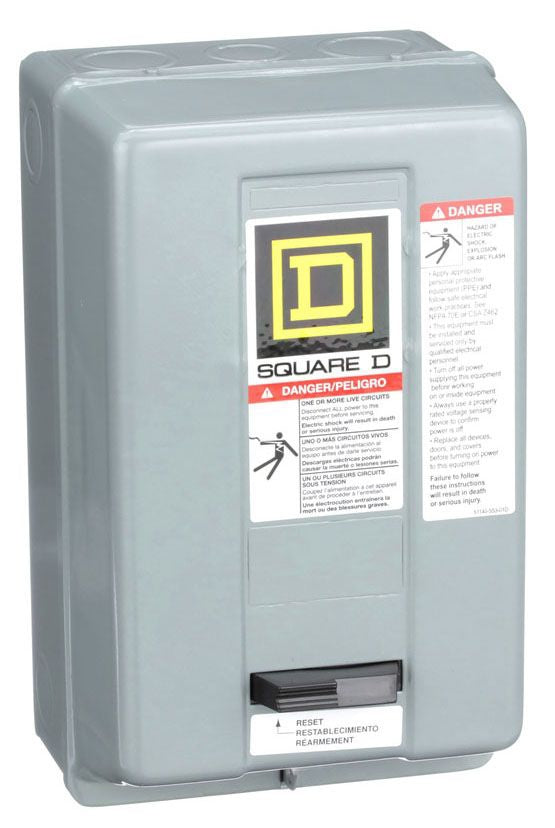

Square D 8536SBG2V02S 120V Starter

Product Description

The Square D 8536SBG2V02S is a full voltage starter designed for efficient motor control. This non-reversing starter operates on 110-120 volts AC and is suitable for multiple applications in industrial environments.

• Rated for 18 amps and supports up to 5 horsepower.
• Constructed with a NEMA 1 enclosure type for enhanced protection.
• Features a separate control circuit for operational flexibility.

Product Highlights

Square D is known for its reliable motor control solutions. The model 8536SBG2V02S meets industrial standards and provides consistent performance for motor applications.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590186460

Technical Specifications

• Enclosure Type: NEMA 1
• Phase: 3
• Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• Current Rating: 18 Ampere
• Power Rating/Voltage: 3 HP at 200/230 VAC, 5 HP at 460/575 VAC
• Size: NEMA 0
• Type: Full Voltage, Non-Reversing
• Construction Standard: NEMA
