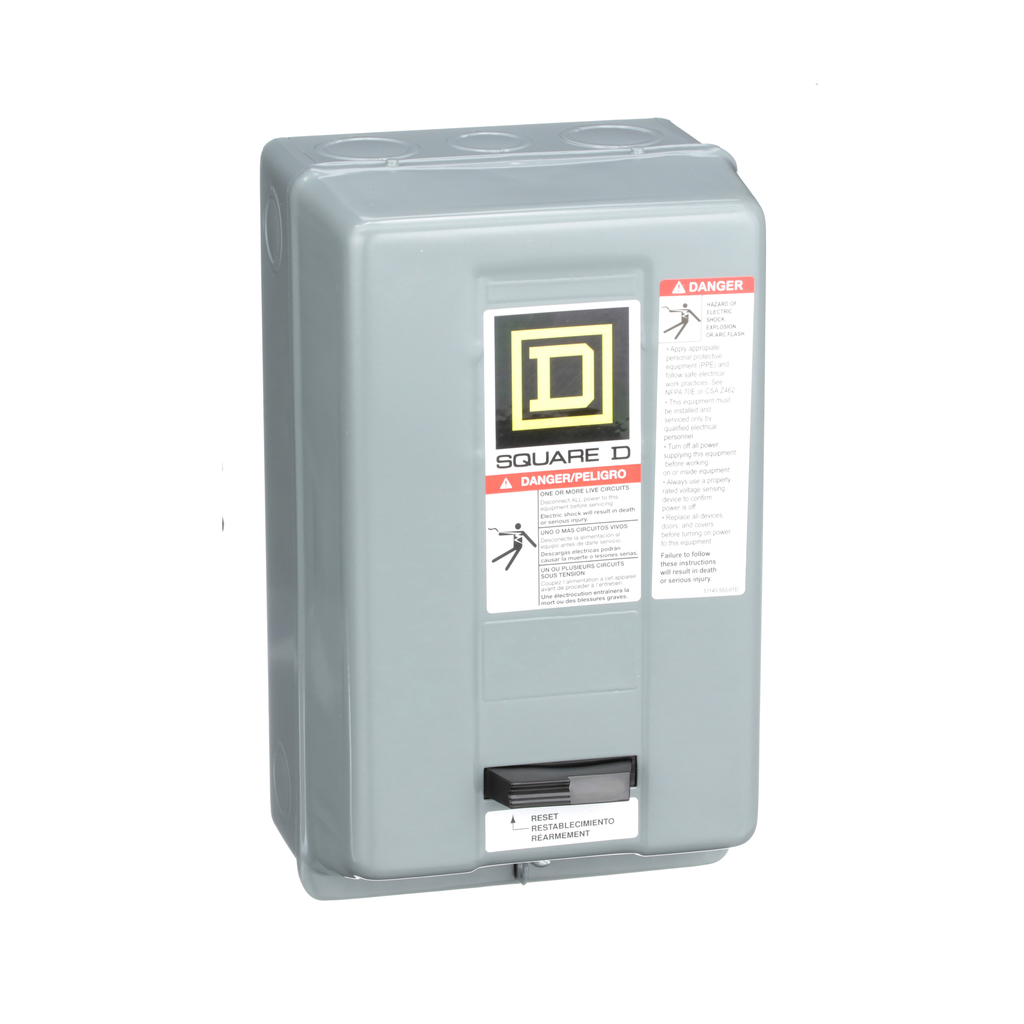

Square D 8536SBG2V02H30S Type-S Non-Reversing Motor Starter 18A 3Pole 3Phase 120VAC Coil NEMA-1

Product Description

The Square D 8536SBG2V02H30S Type-S Non-Reversing Motor Starter is designed for full voltage starting and stopping of AC squirrel cage motors. This starter has a three-pole configuration and is rated for eighteen amperes. It is suitable for three-phase applications with a distinct rating of three horsepower at two hundred and thirty volts AC and five horsepower at four hundred and sixty volts AC. Its motor logic overload relay range is from six to eighteen amperes, providing reliable over-current protection. This model includes a maximum short-circuit current rating of one hundred kA, ensuring safety when properly fused or protected.

• Operates with a 120VAC coil designed for fifty and sixty hertz.
• Utilizes a NEMA-1 enclosure made from painted sheet steel.
• Compatible with various accessories to enhance functionality.

Product Highlights

This motor starter is approved by UL and CSA, providing confidence in its reliability and safety standards.

Product Information

Standard Information

• Catalog Number: 8536SBG2V02H30S
• Manufacturer: Schneider Electric

Technical Specifications

• Amperage: 18 Amp
• Voltage: 600 VAC
• NEMA Size: 0
• Number of Poles: 3 Pole
• Country of Origin: Mexico
• Coil Voltage: 110V AC 50Hz; 120V AC 60Hz
• Enclosure: NEMA 1 painted sheet steel
