SQUARE-D 8536SAO12V06 CONTACTORS
SQUARE-D 8536SAO12V06 CONTACTORS

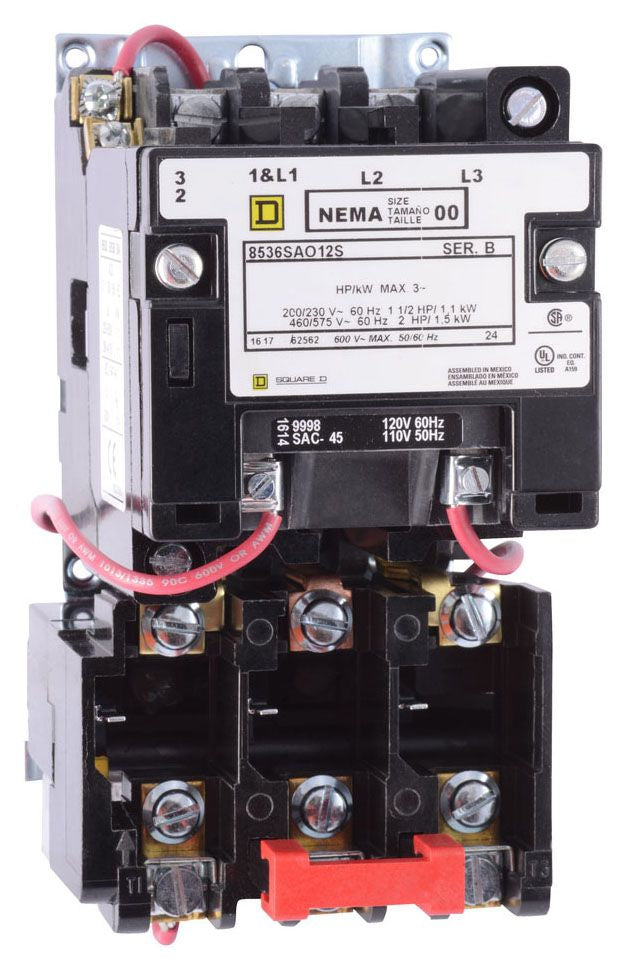

Square D 8536SAO12V06 Starter 600Vac 9Amp Nema +Options

Brand: SQUARE-D
SKU: 8536SAO12V06
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$14.99
$14.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D 8536SAO12V06 is a full voltage starter designed for motor control. This model operates at six hundred volts AC and is rated for nine amperes. It meets NEMA 00 size standards, suitable for non-reversing applications.

  • Open enclosure type for easy installation.
  • Compatible with NEMA construction standards.
  • Rated for a maximum of five kiloamps short-circuit current rating.

Product Highlights

This device provides a reliable solution for controlling motors in various applications.

Product Information

Standard Information

  • Manufacturer: Square D Co.
  • Brand: Square D Co.

Technical Specifications

  • Type: Full Voltage, Non Reversing
  • Enclosure Type: Open
  • Current Rating: 9 Ampere
  • Coil Voltage: 440 VAC at 50 Hz, 480 VAC at 60 Hz
  • Power Rating/Voltage: 1.5 HP at 200/230 VAC, 2 HP at 460/575 VAC
  • Size: NEMA 00
  • Model: 8536
  • Approval: UL, CSA
