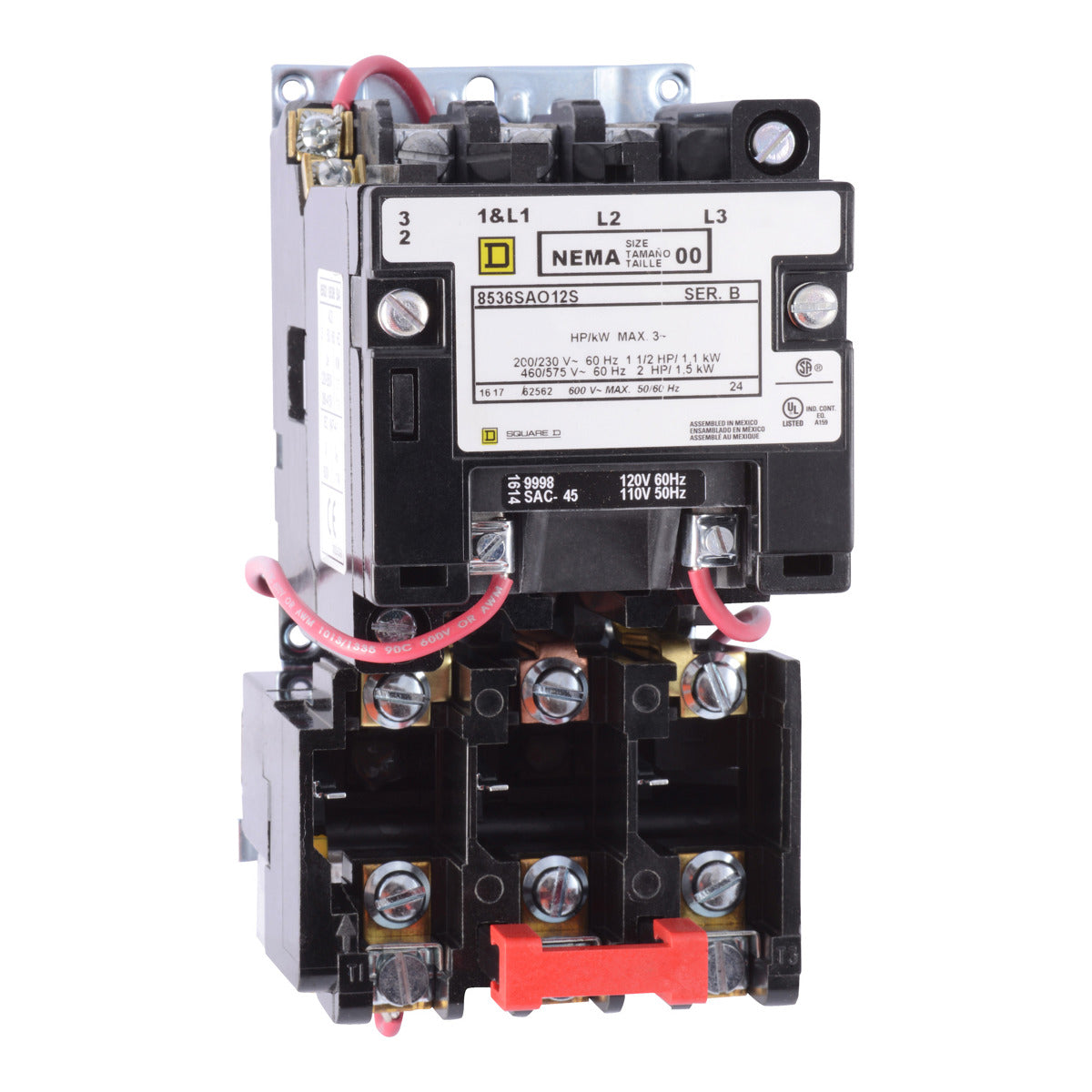

Square D 8536SAO12V06 9 Amp 600 VAC NEMA Starter Plus Options
Ships in 4 - 5 Weeks
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
- $284.50
- $284.50
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product DescriptionThe Square D 8536SAO12V06 by Schneider Electric is a 9-amp, 600-volt NEMA motor starter. It is designed for full-voltage starting and stopping of AC squirrel cage motors. This 3-pole, non-reversing starter has several key features.
- Full Voltage Starting and Stopping
- Melting Alloy Type Overload Relay
- Replaceable Coils
Product Highlights
This NEMA Size 00 starter is suitable for 3-phase applications with ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. It has a 5 kA maximum short circuit current rating per UL508A when protected by the appropriate circuit breaker or fuse. The device includes a 440/480 VAC 50/60 Hz operating coil and is an open device without an enclosure. UL listed and CSA certified.Product Information
Standard Information
-
Brand: Square D
-
MPN: 8536SAO12V06
Technical Specifications
Amperage
9 Amp
Coil Voltage
440 V AC 50 Hz;480 V AC 60 Hz
Depth
107.19 mm
Width
88.9 mm
Height
172.96 mm
Number of Poles
3 Pole
Number of Phases
3 Phase
Country of Origin
Mexico
SCCR
5 kA at 600 V AC
Certifications
UL Listed, CSA, NEMA
- Full Voltage Starting and Stopping
- Melting Alloy Type Overload Relay
- Replaceable Coils
Product Highlights
This NEMA Size 00 starter is suitable for 3-phase applications with ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. It has a 5 kA maximum short circuit current rating per UL508A when protected by the appropriate circuit breaker or fuse. The device includes a 440/480 VAC 50/60 Hz operating coil and is an open device without an enclosure. UL listed and CSA certified.Product Information
Standard Information
- Brand: Square D
- MPN: 8536SAO12V06
Technical Specifications
