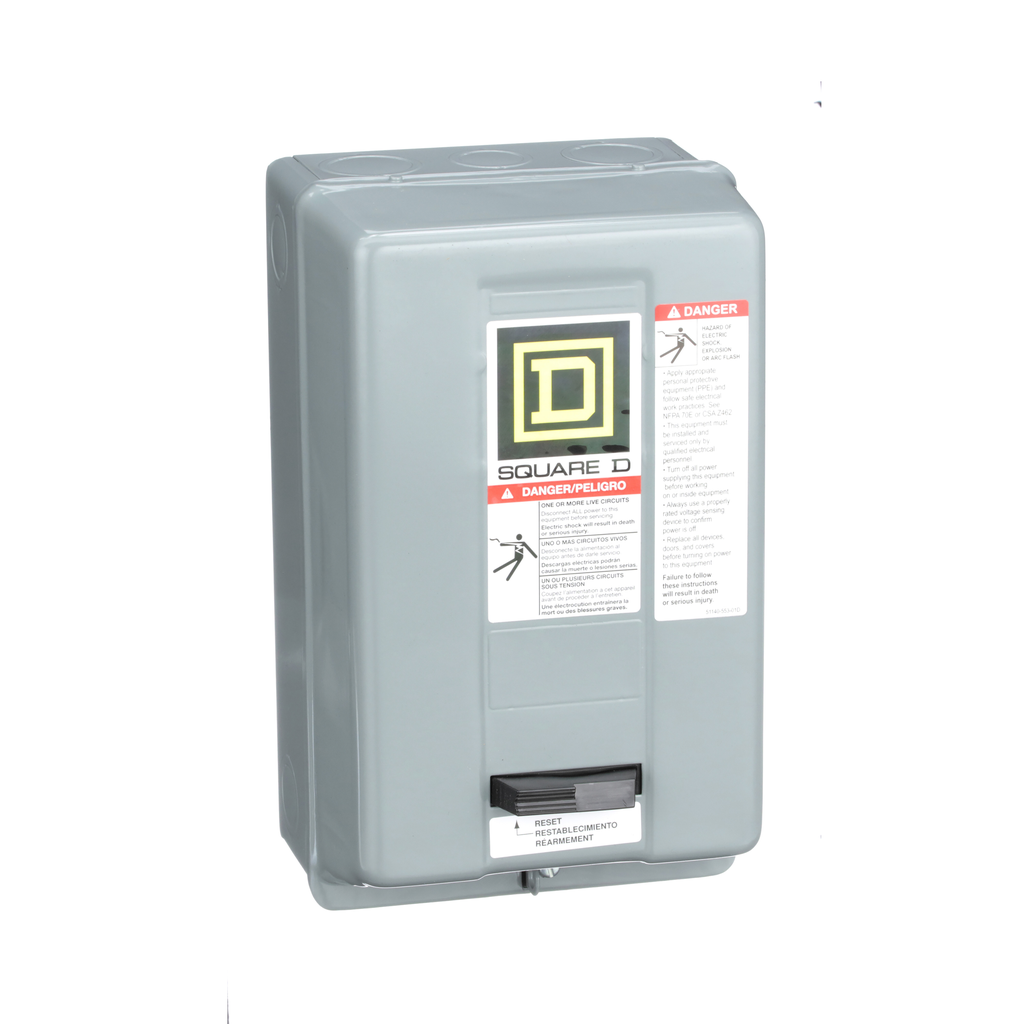

Square D 8536SAG12V02H30S Non-Reversing Motor Starter 9A Size 00 120VAC Coil

Product Description

The Square D 8536SAG12V02H30S is a Type S non-reversing motor starter designed for AC squirrel cage motors. This motor starter is rated for nine amperes and can handle three-phase ratings up to two horsepower at 460 and 575 volts. It offers a 100 kA maximum short circuit current rating per UL508A when used with the correct protection.

• Designed for full voltage starting and stopping of AC motors
• Features a Motor Logic overload relay with a range of three to nine amperes

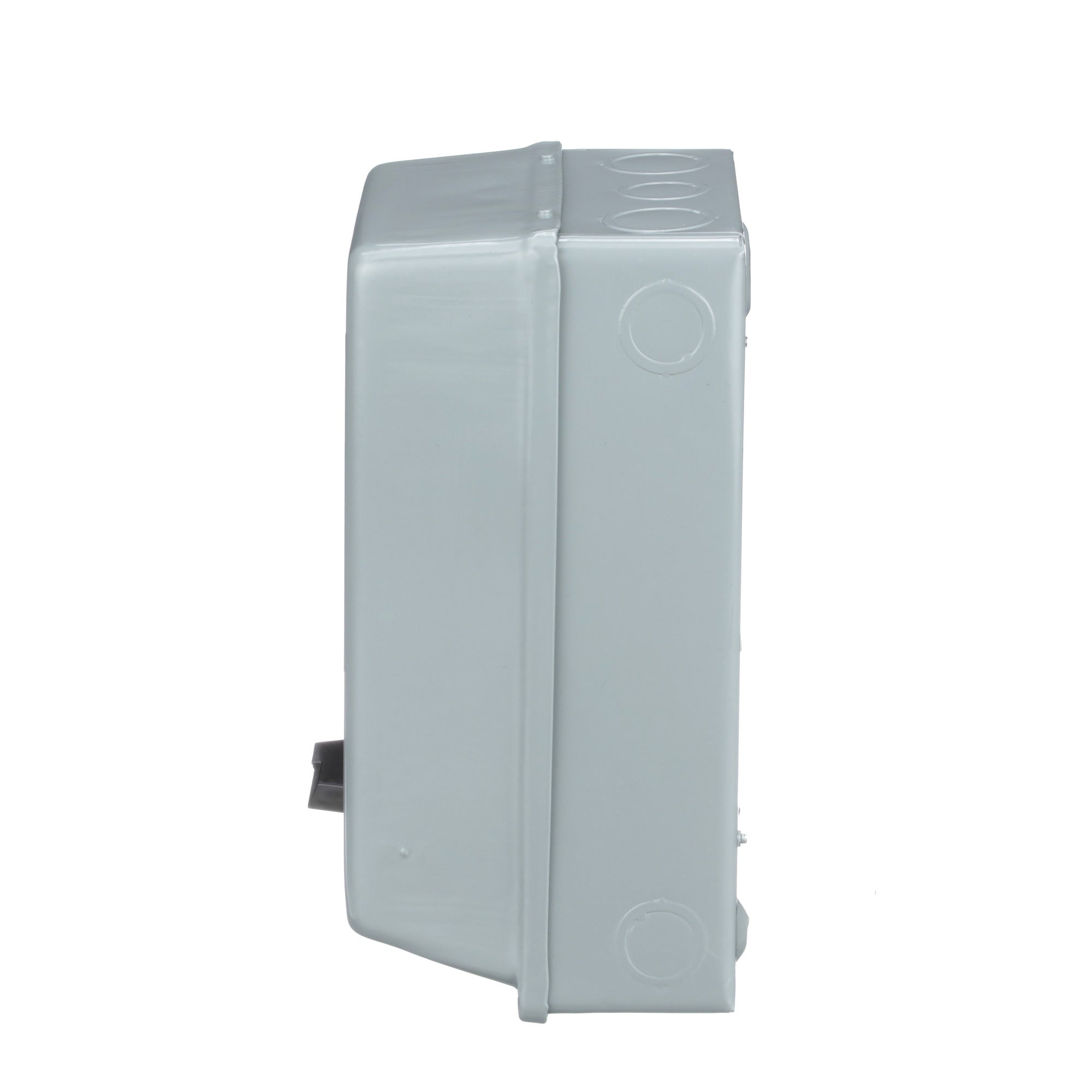

• Includes a painted sheet steel general purpose enclosure for protection

Product Highlights

Type S motor starters are suitable for various applications where reliable motor control is needed. This model includes replaceable coils for different voltages and is certified by UL and CSA.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8536SAG12V02H30S
• Voltage: 600 Volt
• Amperage: 9 Amp
• Enclosure: NEMA 1 Painted Sheet Steel
• NEMA Size: 00
• Coil Voltage: 110 V AC; 120 V AC
• Dimensions: 10 inches tall, 6 inches wide, 5.56 inches deep
• Country of Origin: Mexico
