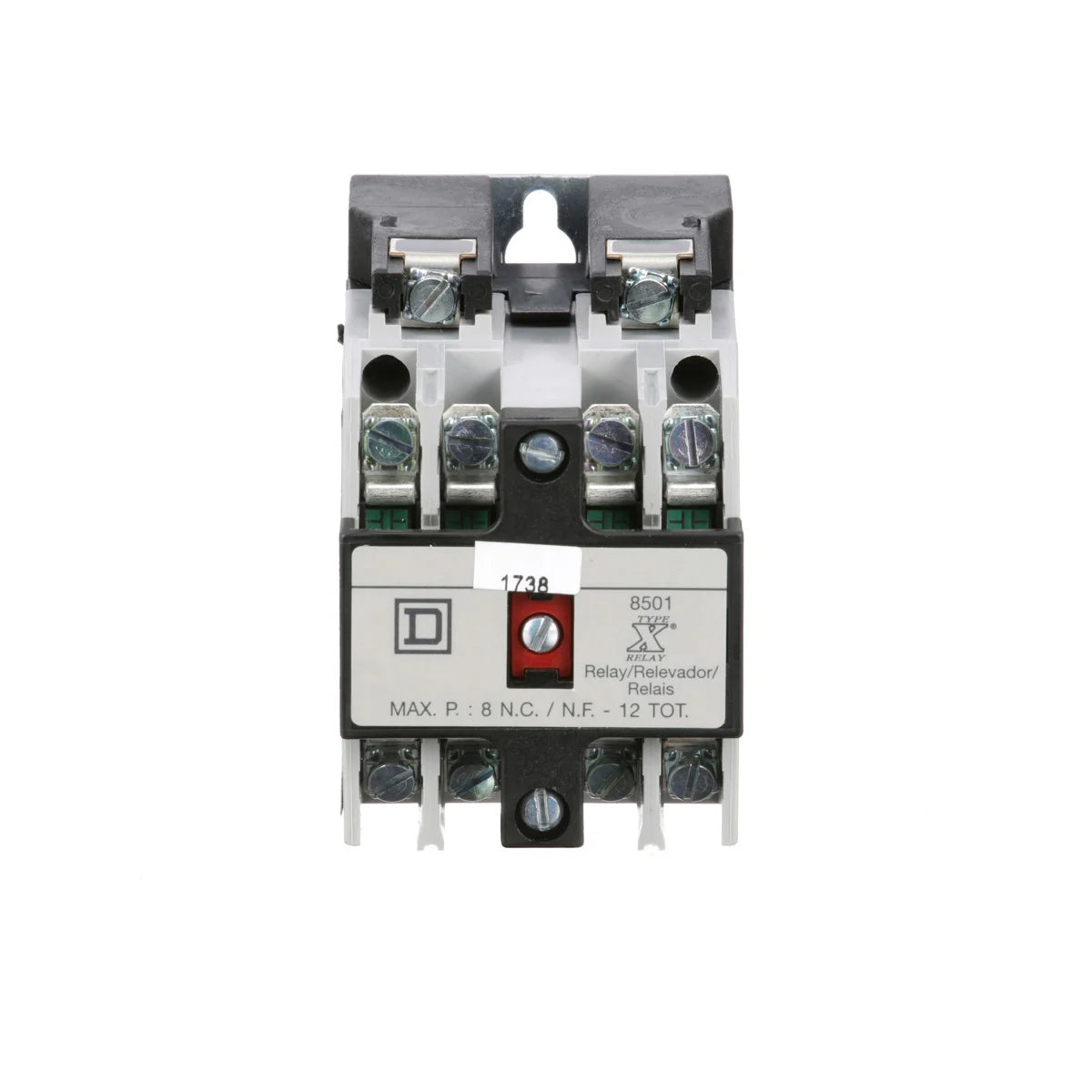

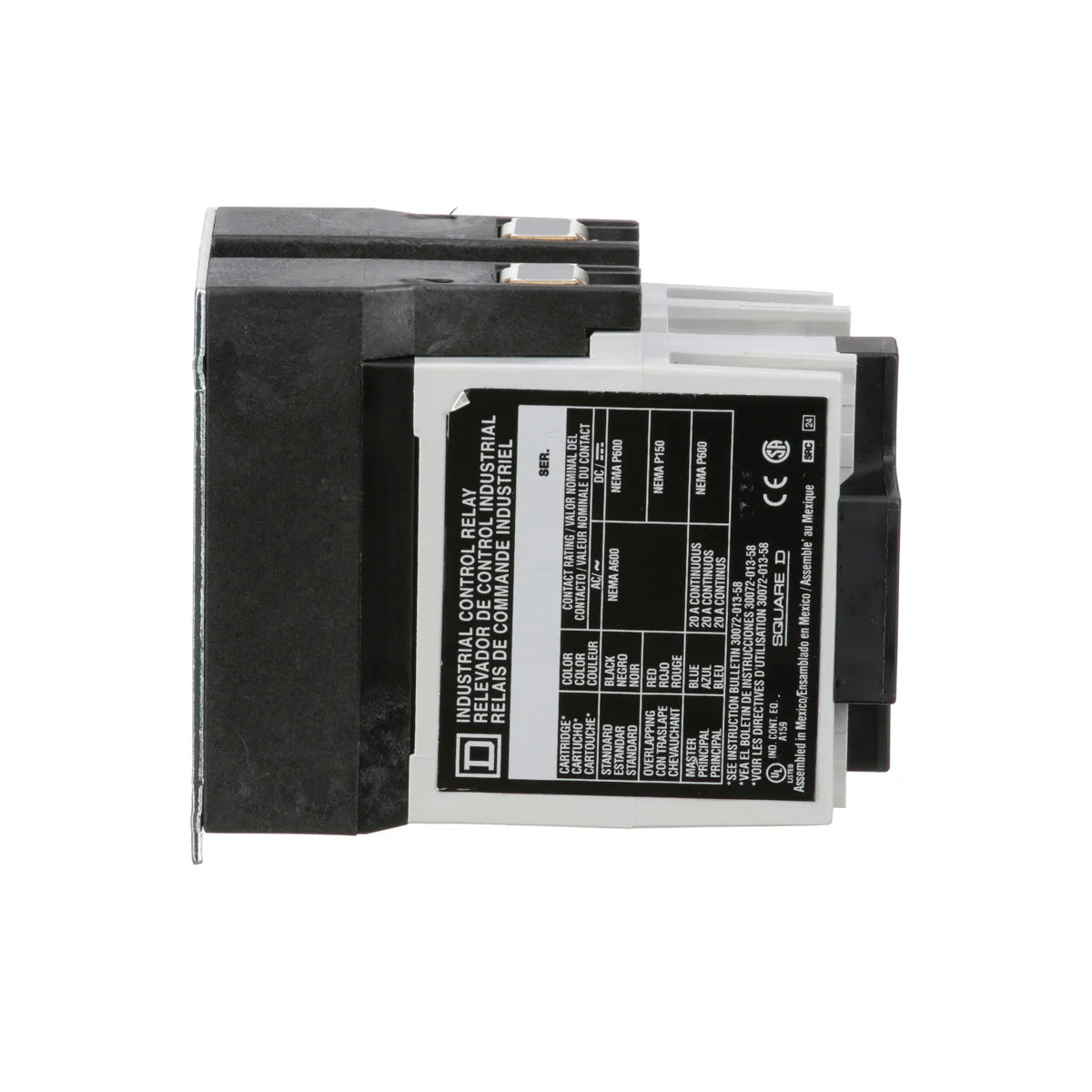

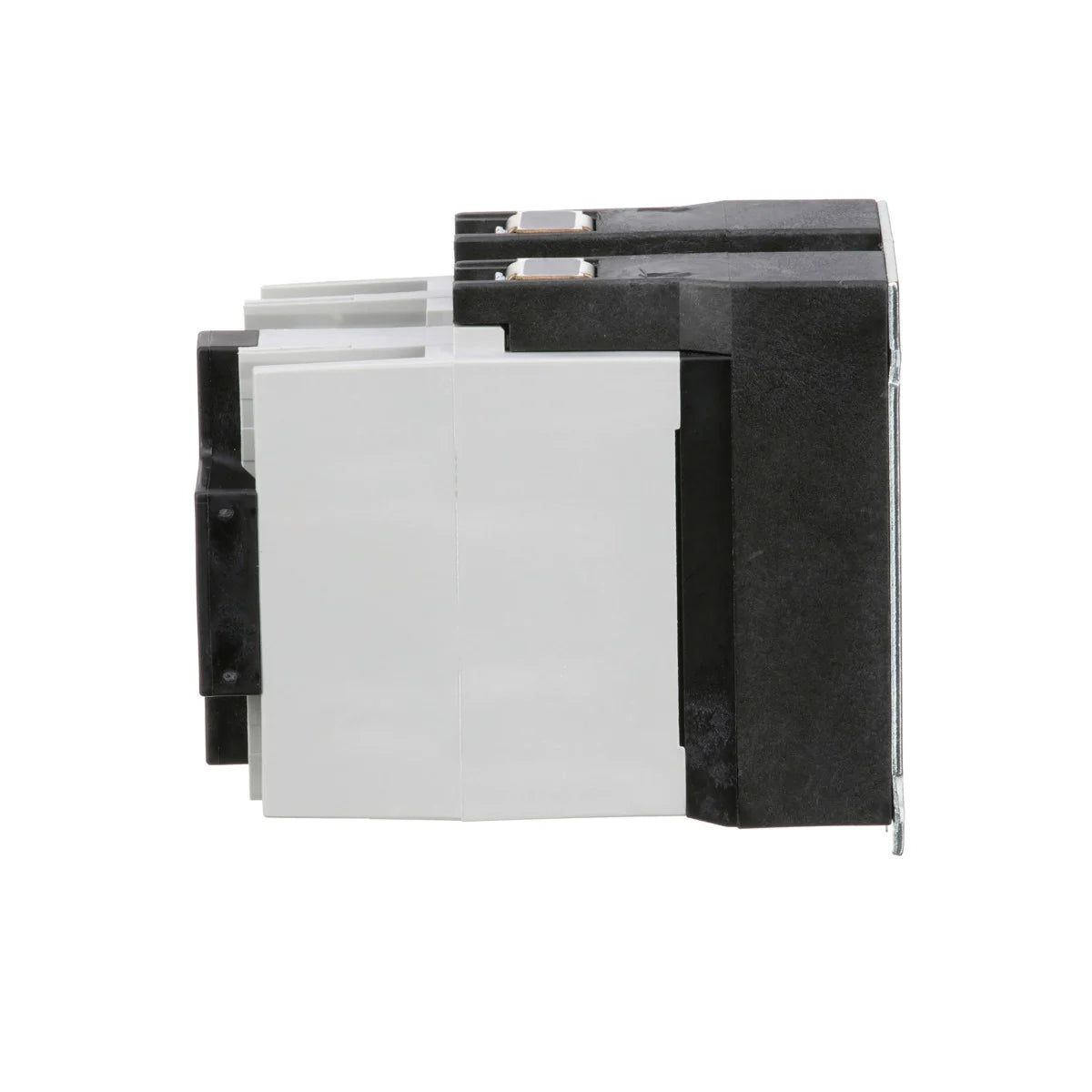

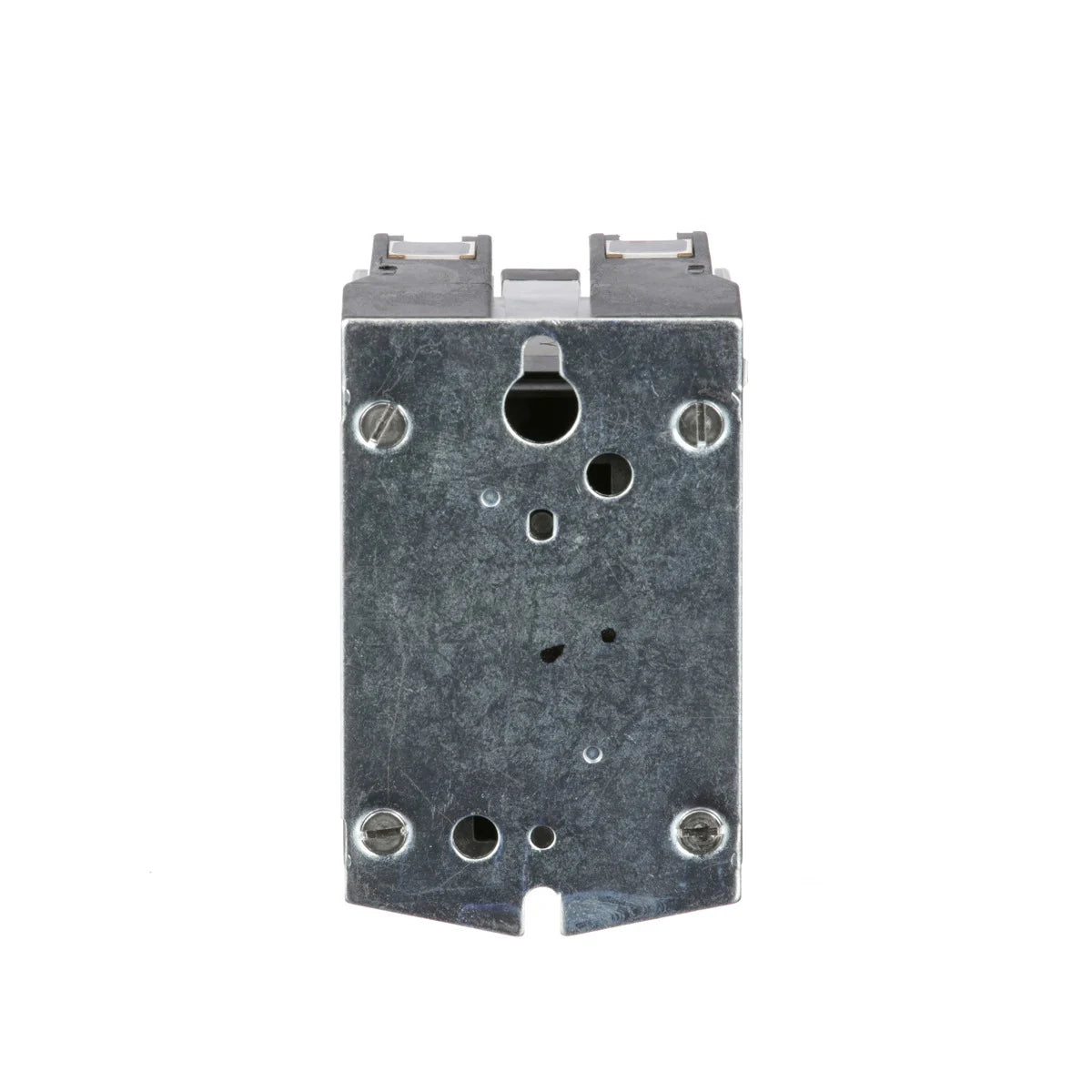

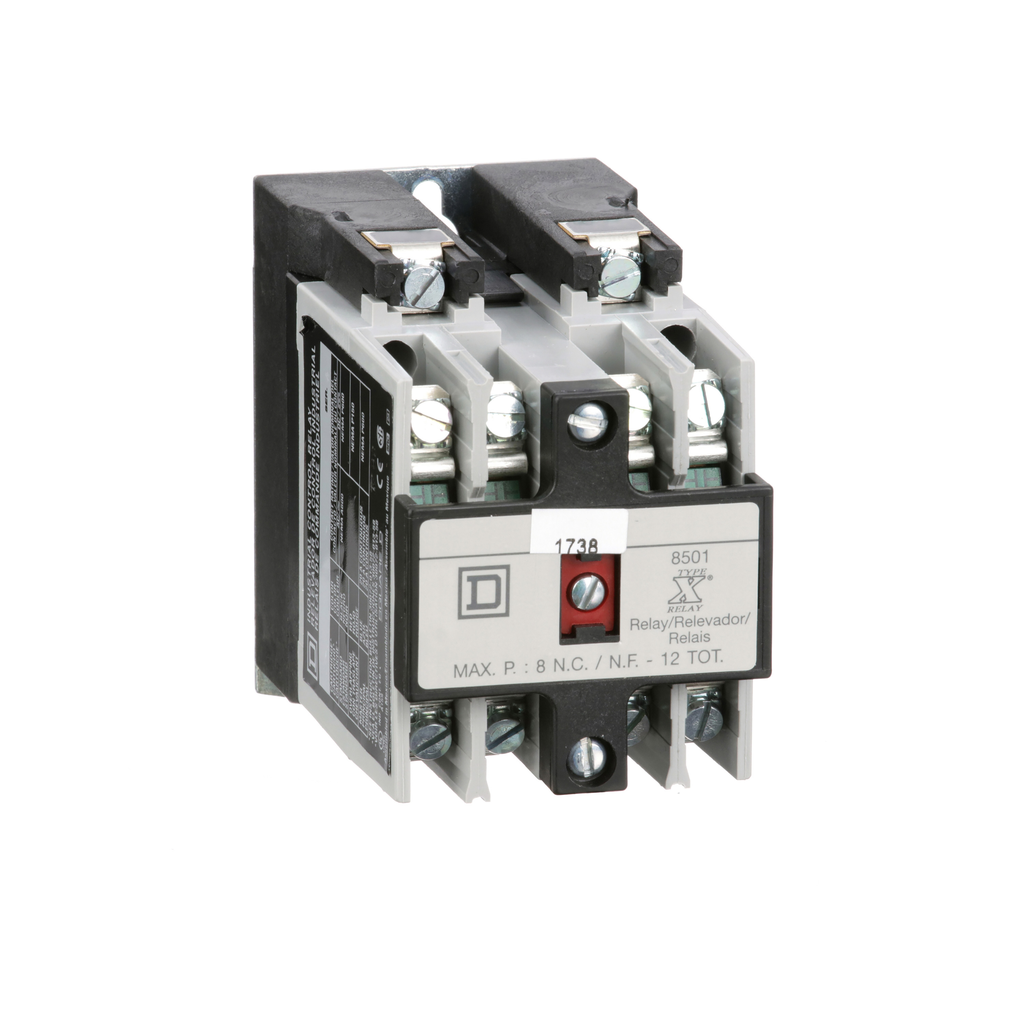

Square D 8501XO40V02Y414 110/120 VAC 10/5 Amp 4-Pole 4NO Panel Mount AC Operated Control Relay

Product Description

Square D 8501XO40V02Y414 is a control relay that operates on 110 to 120 VAC with a 10/5 amp rating. This relay is suitable for various automation control applications, providing reliable circuit logic management. The 8501X relay series features a modular structure which ensures ease of maintenance and flexibility in installation. The design allows for straight-through wiring, simplifying the installation process. This relay is also built with plug-in contact cartridges that enable quick conversion and replacement without the need to remove existing wiring.

• Operates on 110/120 VAC, suitable for AC control.
• Features four normally open contacts for versatile use.
• Constructed for durability and ease of access for maintenance.

Product Highlights

The Square D 8501XO40V02Y414 relay offers a complete line of reliable components, making it ideal for prolonged use in demanding conditions while ensuring compliance with UL and CSA standards.

Product Information

Standard Information

• Catalog Number: 8501XO40V02Y414
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Coil Voltage: 110 V AC 50 Hz; 120 V AC 60 Hz
• Current Rating: 10 Amp
• Number of Poles: 4 Pole
• Contact Configuration: 4 Normally Open Contacts
• Operating Temperature: -40 to 160 Degrees F
• Warranty: 18 months
• Country of Origin: Unknown
