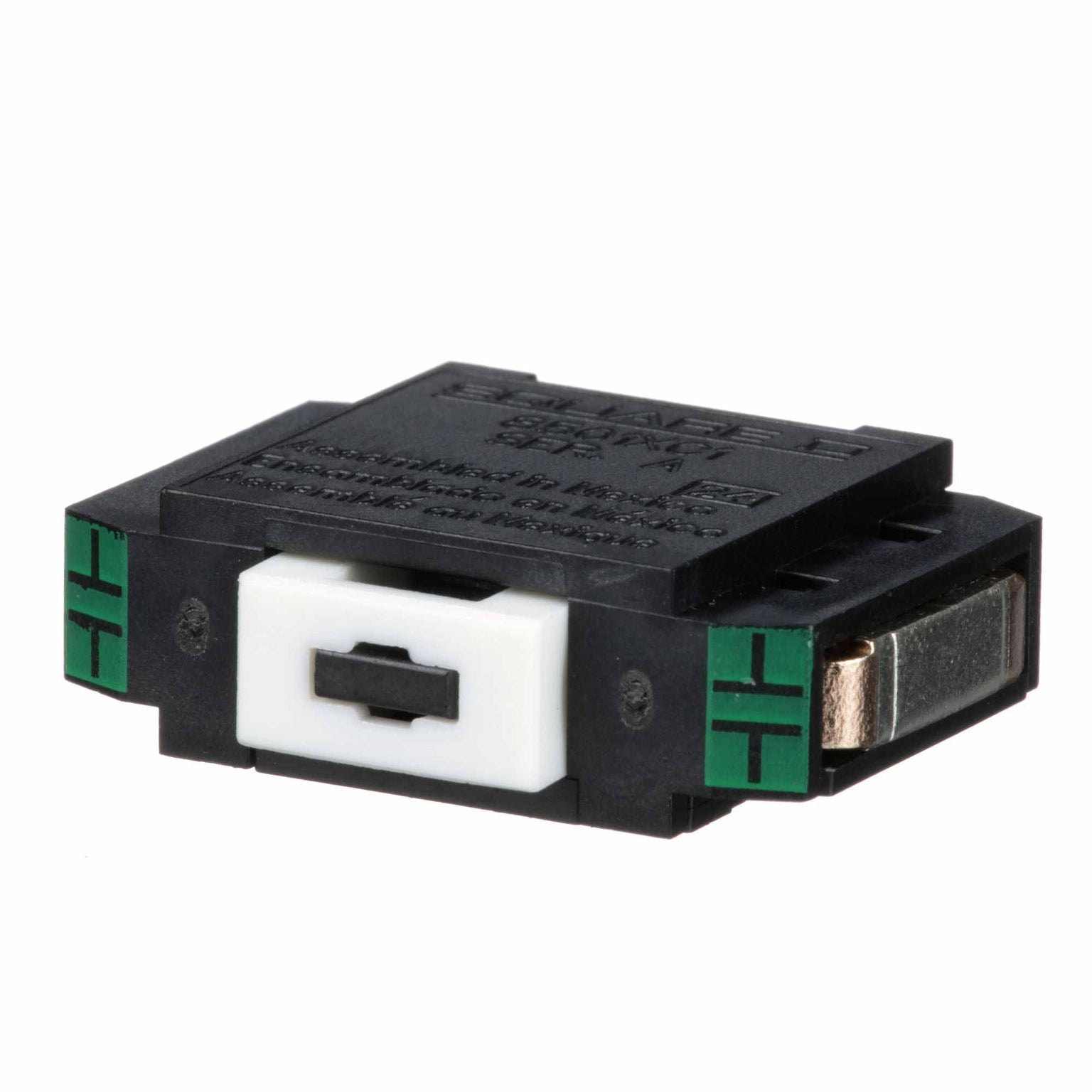

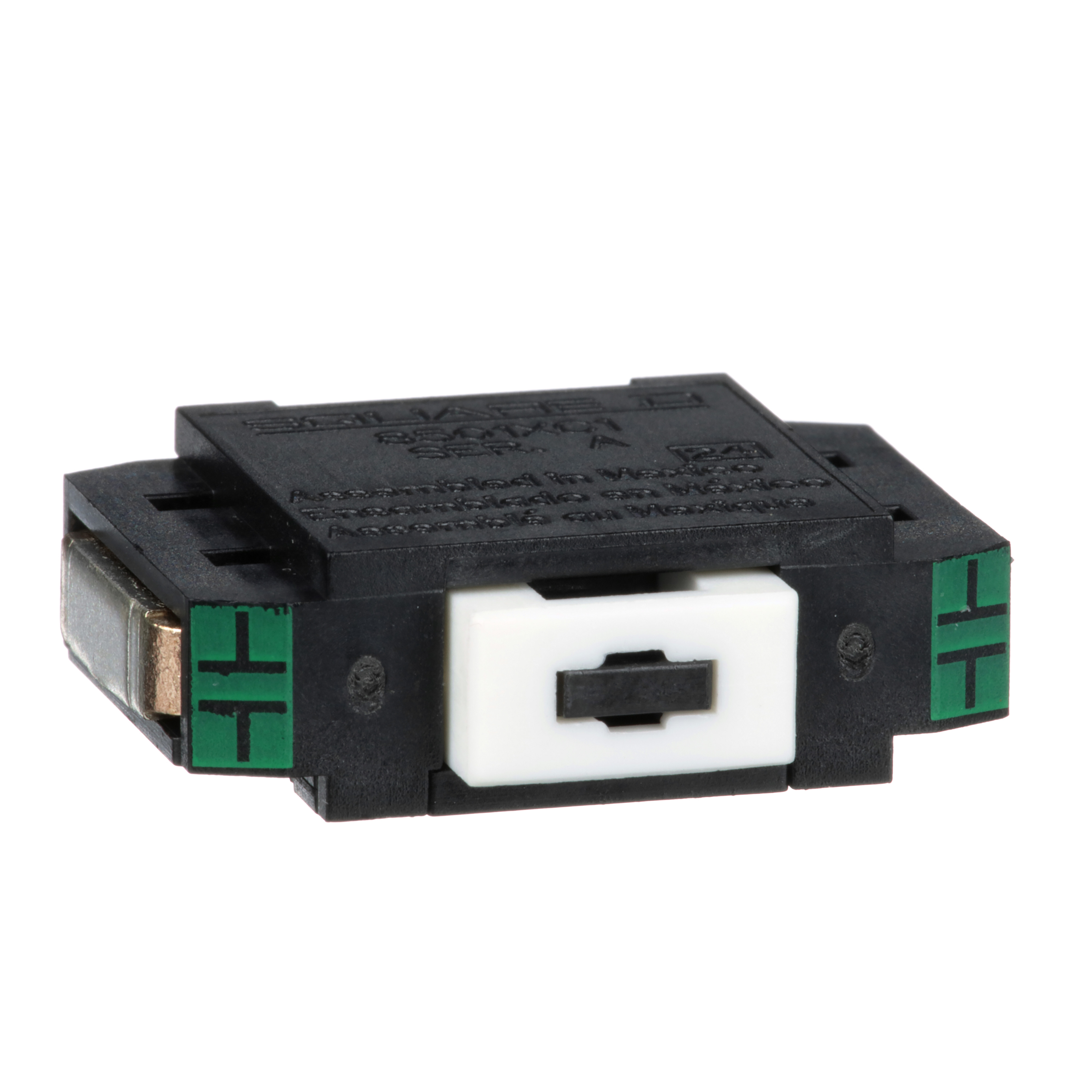

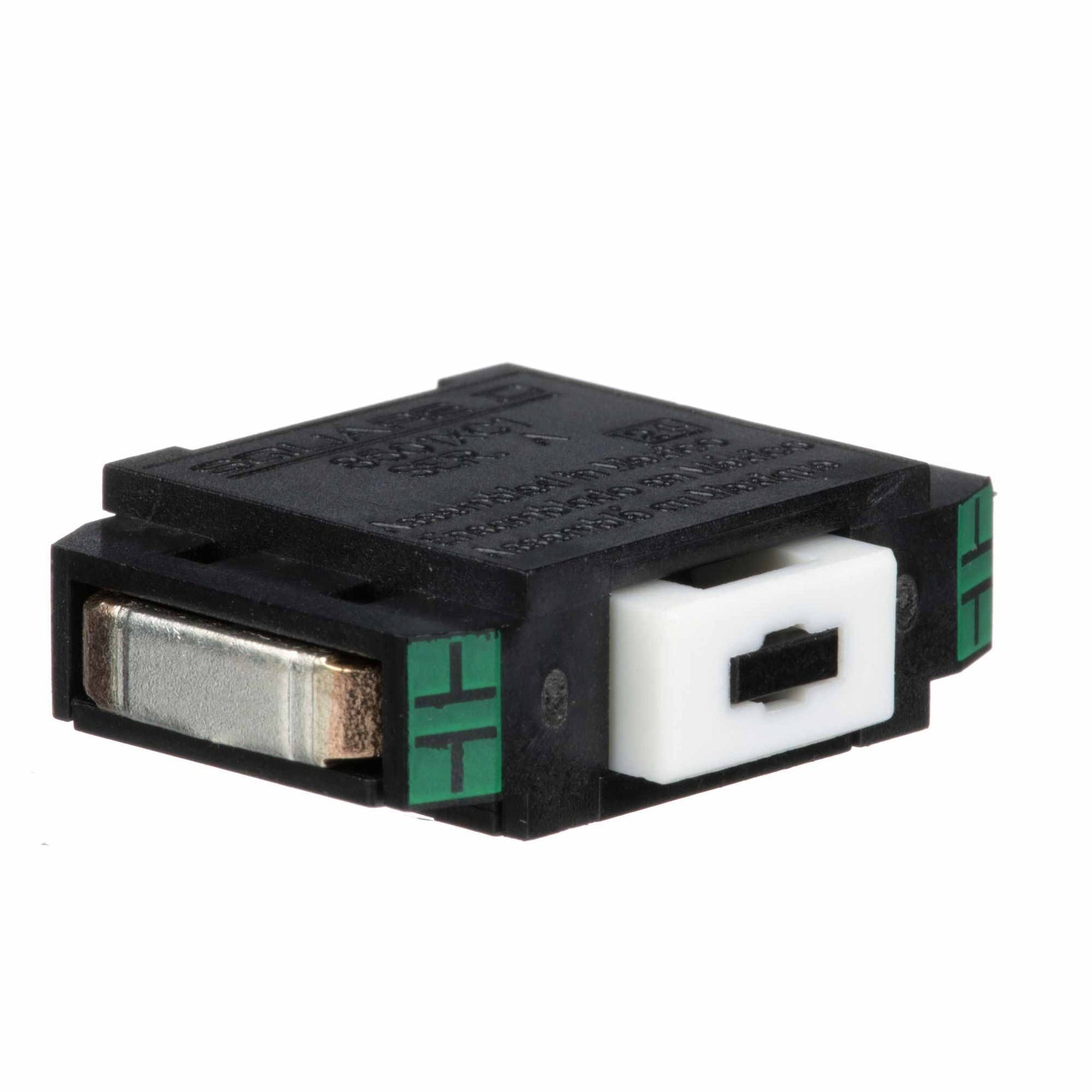

Square D 8501XC1 standard contact cartridge 10A 600VAC

Product Description

The SQUARE D 8501XC1 is a standard contact cartridge designed for use with 8501 Type X control relays. This cartridge can be installed in any standard relay, adder deck, or timer attachment. It can be configured as a normally open (NO) or normally closed (NC) contact without rewiring. The plug-in design facilitates easy contact conversion or replacement.

• Rated for 10A resistive at 600V AC and 24V DC
• Can be installed as NO or NC contact
• Plug-in design for easy contact conversion

Product Highlights

The 8501XC1 contact cartridge is ideal for applications requiring long life, high reliability, and ease of maintenance. UL listed and CSA certified.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8501XC1
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 8501XC1
• Manufacturer: Schneider Electric
• Brand: Square D
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901537175
• GTIN: 00785901537175
• Type: Standard Cartridge
• Used On: Class 8501 NEMA Type Industrial Control Relay
• Approval: UL (Canada and US), CSA
• IGCC: 5367
• Contact Configuration: 1 NO 1 standard contact cartridge
• Rated Breaking Capacity: 6 A 120 V AC inductive control circuit UL 508;3 A 240 V AC inductive control cir
• Rated Short-circuit Making Cap: 60 A 120 V AC inductive control circuit UL 508;30 A 240 V AC inductive control c
• Contact Form: SPST-NO
• Function: Replacement Contact Module
• Number of Contacts: 1
• Numeric ID: 4079255
• Series: 8501 Series
• UPC Code: 785901537175
• Voltage Rating: 600 V AC
• Amperage Rating: 10 A
• Number of Poles: 1
• Suitable For Use With: 8501 Type X Control Relay
• Mounting Type: Surface
