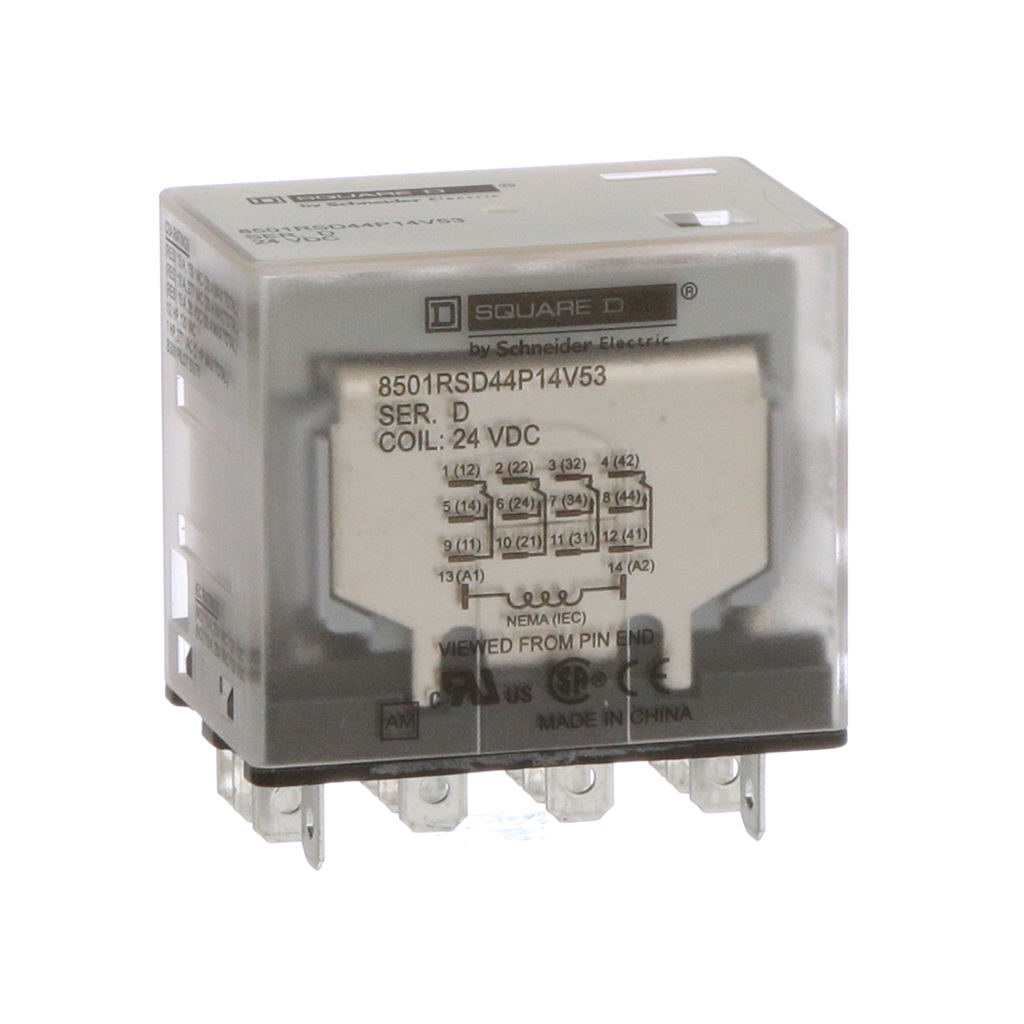

SCHNEIDER ELECTRIC 8501RSD44P14V53 RELAYS & SWITCHES

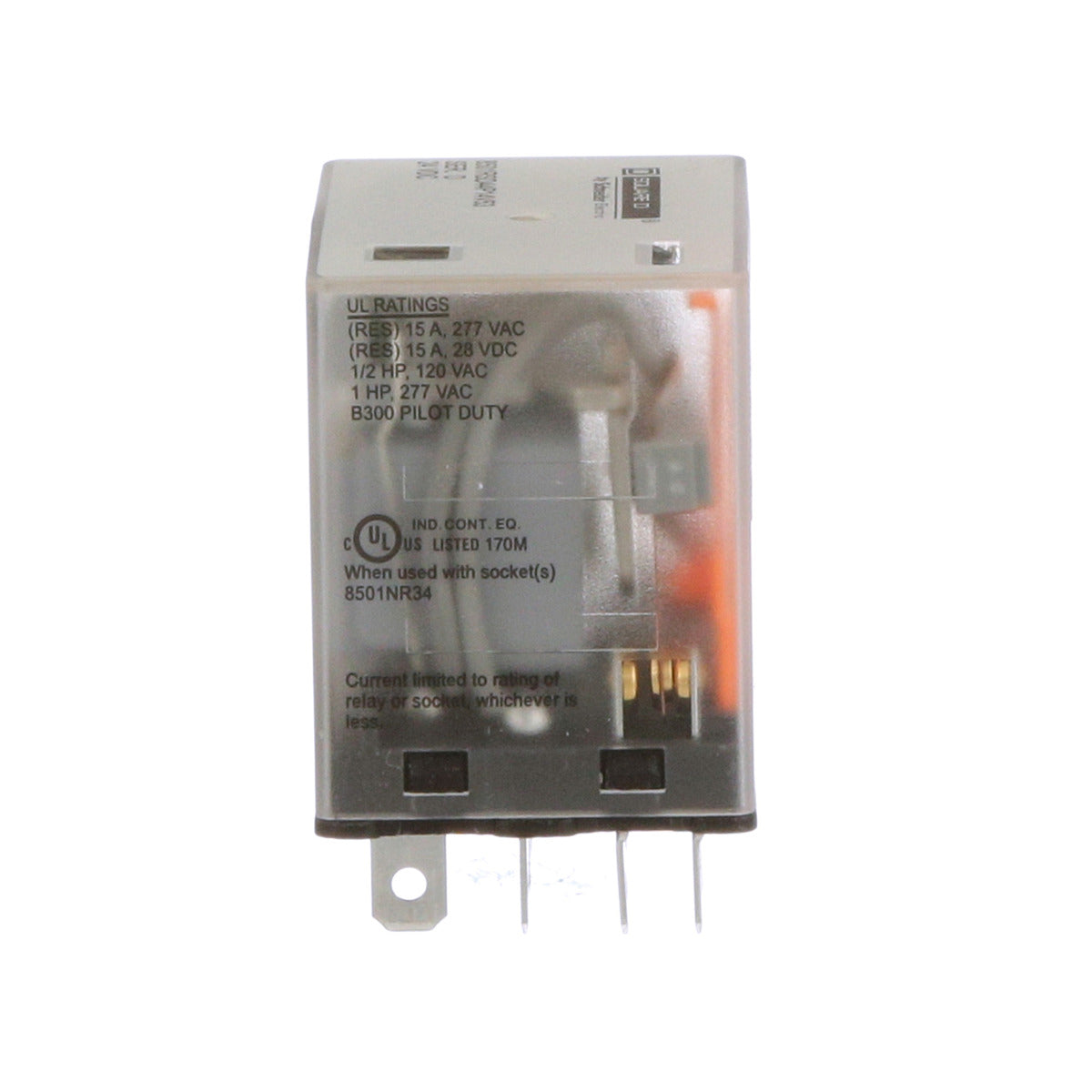

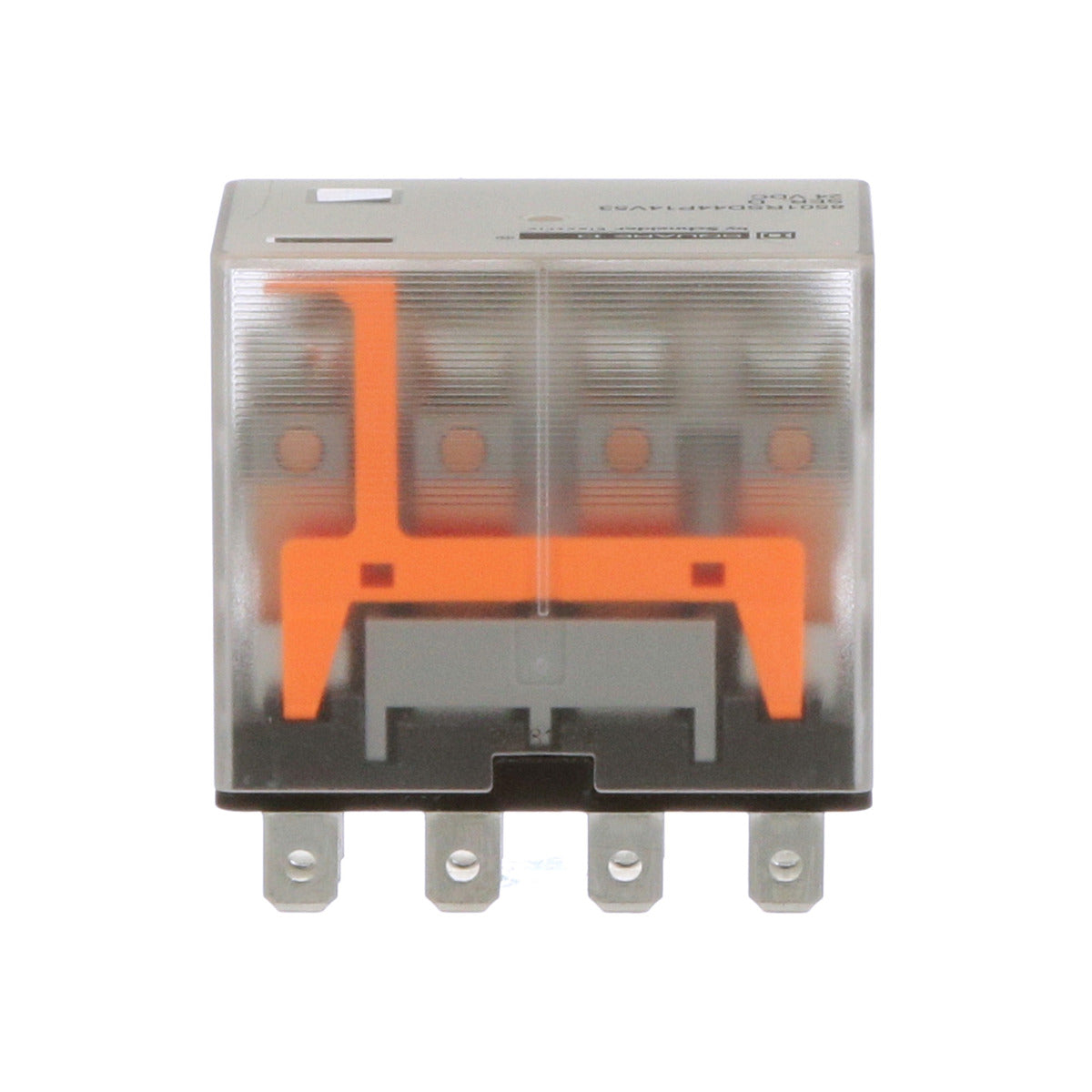

SCHNEIDER ELECTRIC Square D 8501RSD44P14V53 24 VDC 10 Amp 4PDT 4CO Socket Mount DC Operated Miniature Plug-In Relay
SCHNEIDER ELECTRIC Square D 8501RSD44P14V53 24 VDC 10 Amp 4PDT 4CO Socket Mount DC Operated Miniature Plug-In Relay
SCHNEIDER ELECTRIC 8501RSD44P14V53 RELAYS & SWITCHES
Square D 8501RSD44P14V53 24 VDC 10 Amp 4PDT 4CO Socket Mount DC Operated Miniature Plug-In Relay
Square D 8501RSD44P14V53 24 VDC 10 Amp 4PDT 4CO Socket Mount DC Operated Miniature Plug-In Relay

Square D 8501RSD44P14V53 24 VDC 10 Amp 4PDT 4CO Socket Mount DC Operated Miniature Plug-In Relay

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: 8501RSD44P14V53
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D 8501RSD44P14V53 is a miniature plug-in relay designed for control circuit logic applications. This relay facilitates easy replacement by plugging into a compatible relay socket, specifically the 8501NR34 or 8501NR34B sockets. It features a 4PDT contact arrangement with both normally open and normally closed contacts.

  • 15 ampere resistive rating at 277 VAC
  • 1 HP rating at 277 VAC
  • UL recognized with Square D relay sockets

Product Highlights

This relay operates on a nonreplaceable 24 VDC coil and has a green LED indicator. It is suitable for applications requiring reliability and easy maintenance, with a wide variety of coil voltages available.

Product Information

Standard Information

  • Brand: Square D
  • Manufacturer: Schneider Electric
Technical Specifications
Catalog Number
8501RSD44P14V53
Operating Temperature
-40 to 131 Degrees F
Width
1.6 inches
Height
1.1 inches
Depth
1.6 inches
Contact Configuration
4PDT
Coil Voltage
24 VDC
Certifications
UL Listed, CSA Certified
