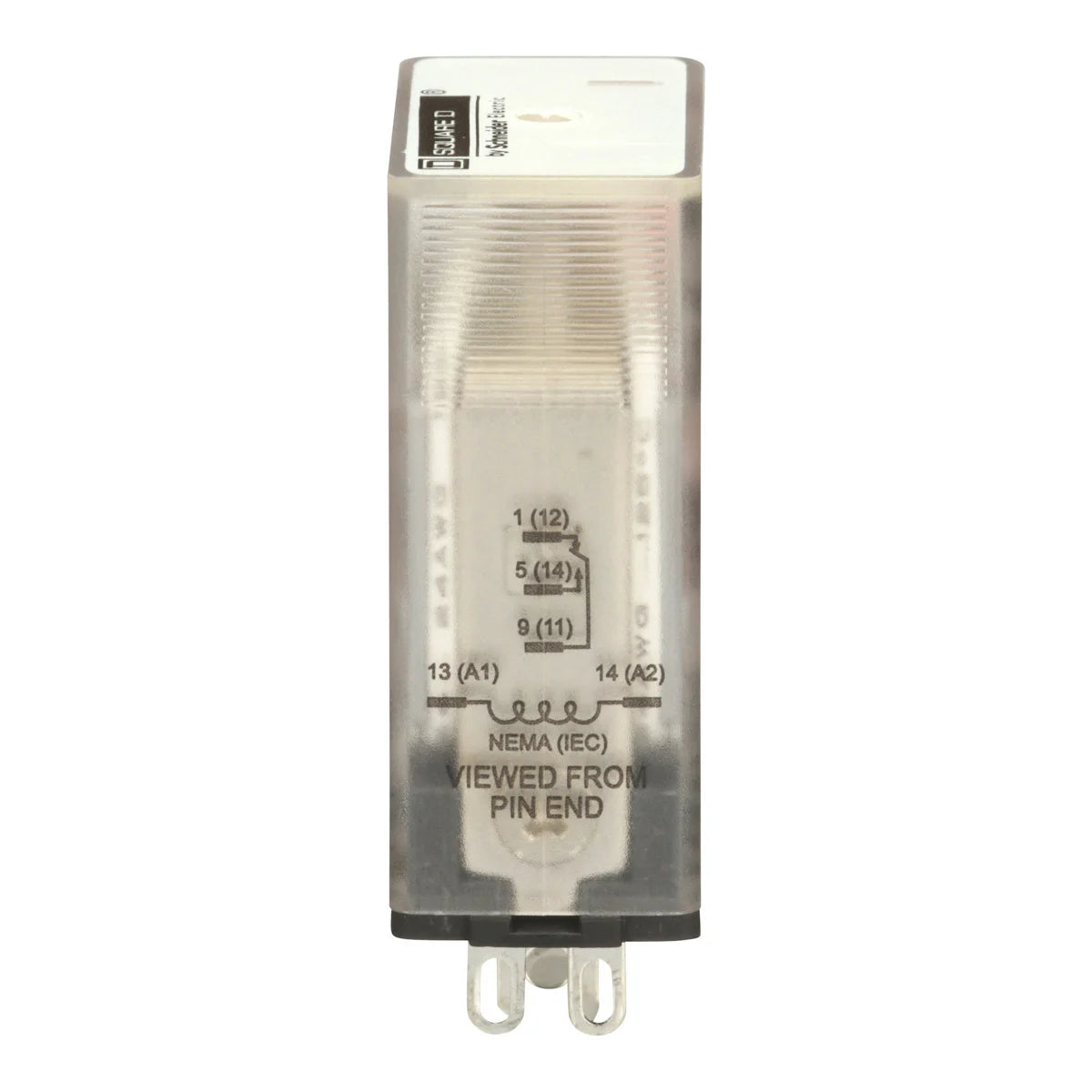

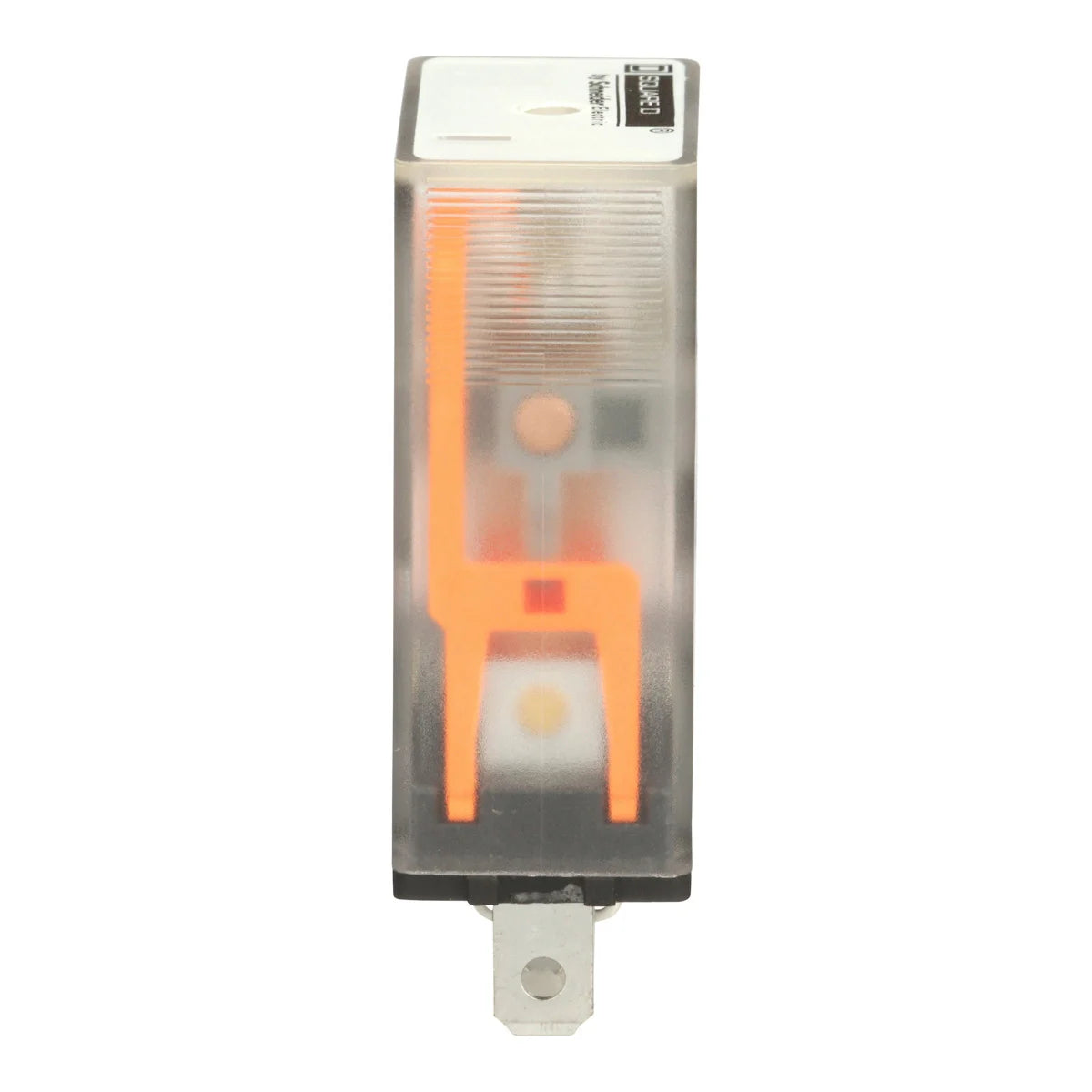

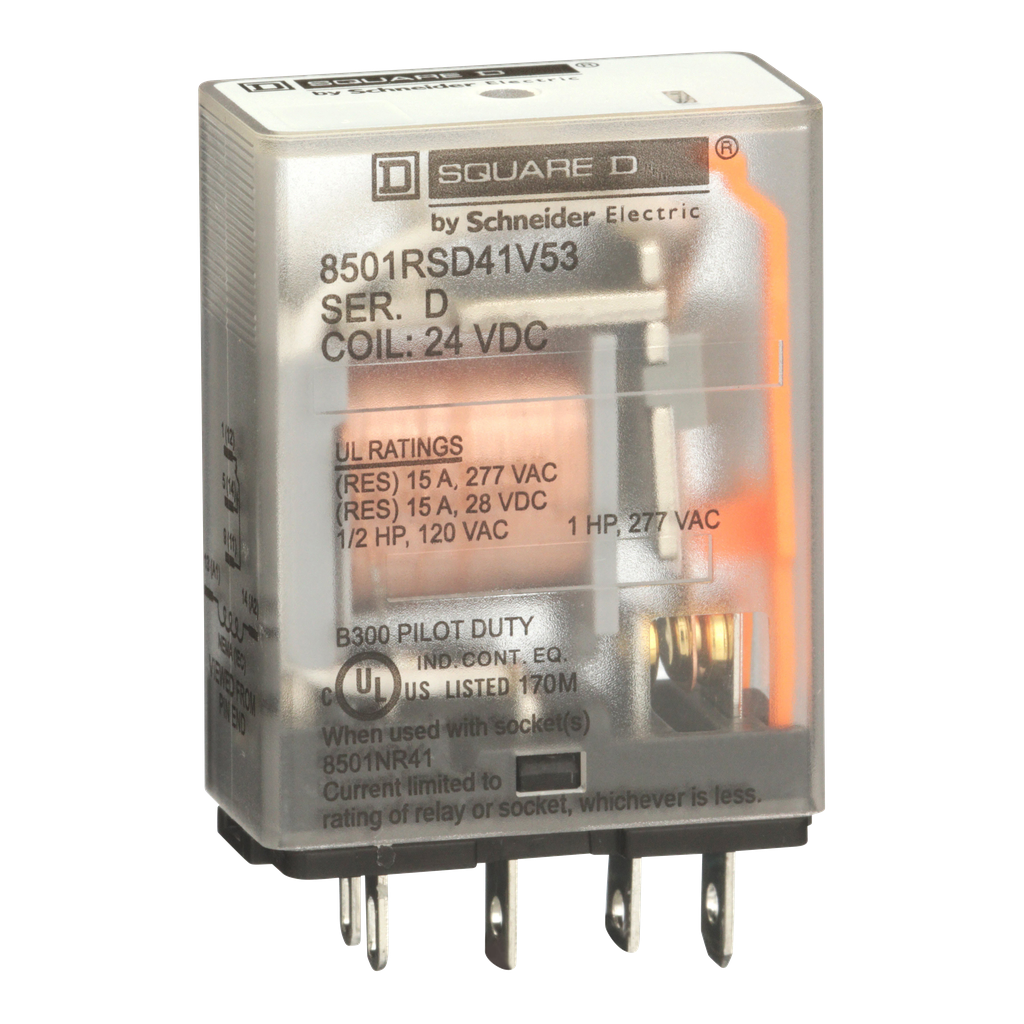

Square D 8501RSD41V53 24 VDC 12 Amp SPDT 1CO Socket Mount DC Operated Miniature Plug-In Relay

Product Description

The Square D 8501RSD41V53 is a miniature plug-in relay designed for control circuit logic applications. This relay easily plugs into an 8501NR41 or 8501NR41B relay socket, simplifying replacements. It features a single pole double throw contact arrangement with both normally open and normally closed contacts.

• 15 ampere resistive rating at 277 VAC and 120 VAC
• 1 HP rating at 277 VAC and 1/2 HP rating at 120 VAC
• Operates on a 24 VDC coil voltage

Product Highlights

The 8501RS relay is UL listed and CSA certified, ensuring reliability in various applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8501RSD41V53
• Amperage: 15 Amp
• Coil Voltage: 24 VDC
• Contact Configuration: SPDT
• Depth: 1.65 inches
• Width: 0.55 inches
• Height: 1.07 inches
• Operating Temperature: -40 to 131 degrees F
