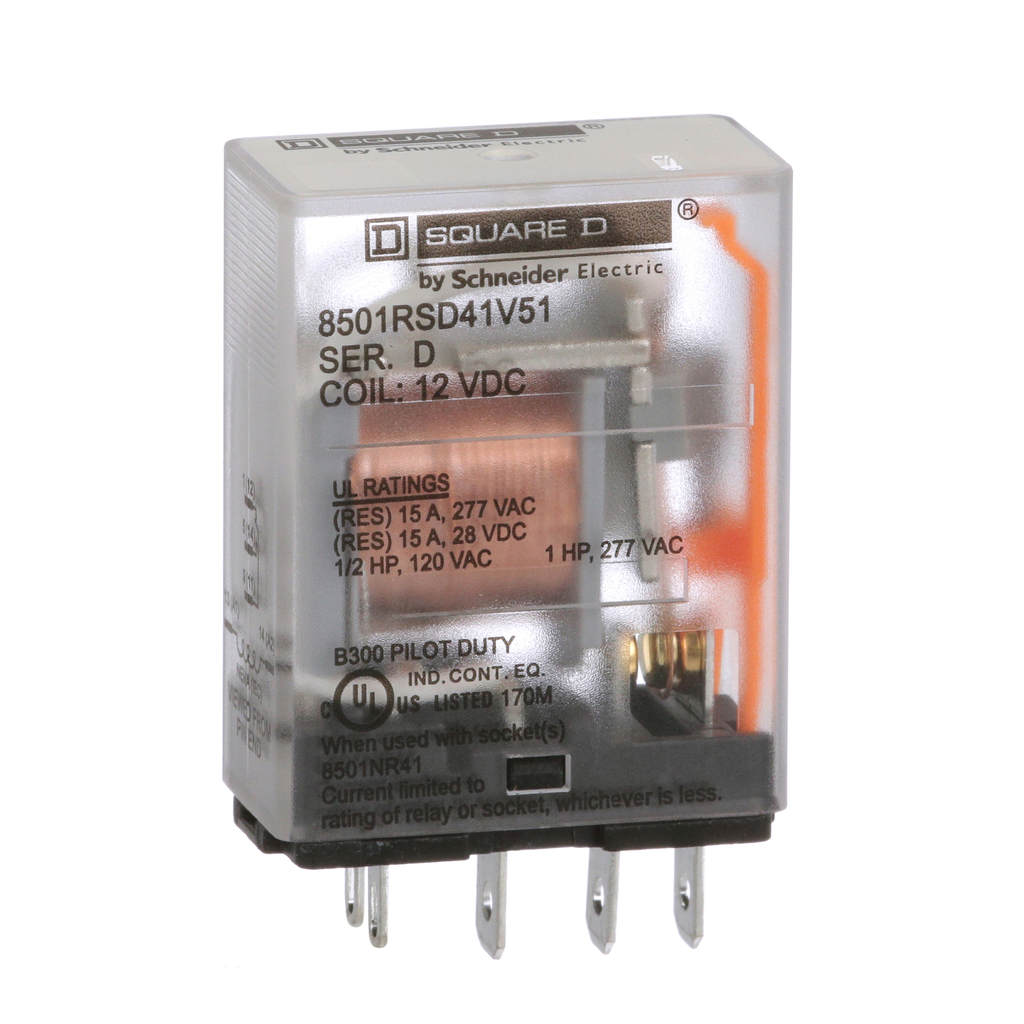

Square D 8501RSD41V51 12 VDC 12 Amp SPDT 1CO Socket Mount DC Operated Miniature Plug-In Relay

Product Description

Square D 8501RSD41V51 is a miniature plug-in relay designed for control circuit logic applications. This relay fits into 8501NR41 or 8501NR41B relay sockets for easy installation and replacement. It features SPDT contact arrangements with both normally open and normally closed contacts, and can handle up to fifteen amperes resistive load at 277 VAC and 120 VAC. It is available with a nonreplaceable twelve VDC coil. The relay is UL listed, recognized by CSA, and meets various industrial standards.

• Coil voltage: 12 VDC
• Contact configuration: SPDT
• Operating temperature: -40 to 131 degrees Fahrenheit

Product Highlights

Ideal for control circuit logic and other automation tasks, this relay is compatible with a wide range of coil voltages.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8501RSD41V51
• Width: 0.55 inches
• Height: 1.07 inches
• Depth: 1.65 inches
• Amperage: 15 Amp
• Country of Origin: China
• Warranty: 18 months
• Certifications: CE, CSA, UL Listed, UL Recognized
