Product Description

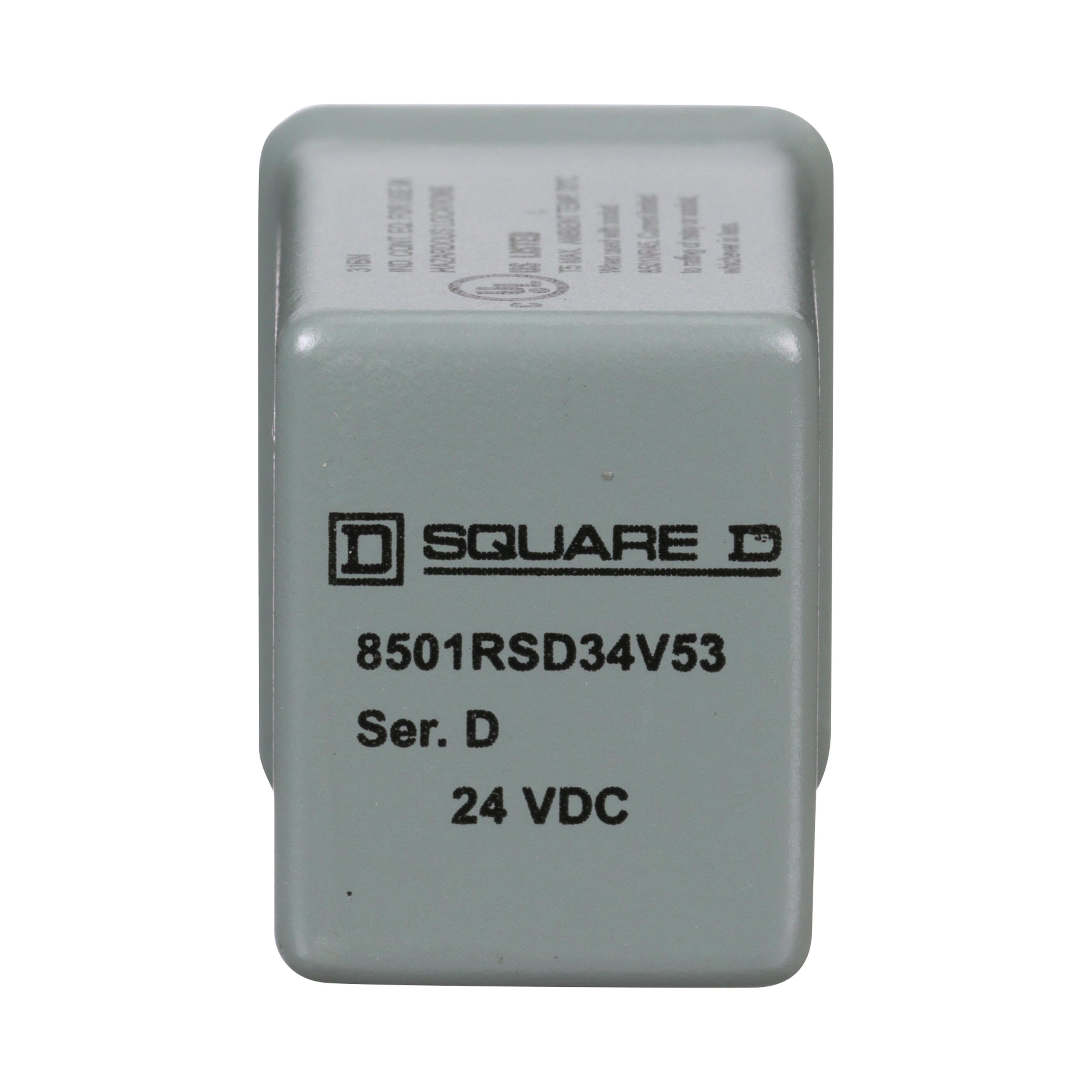

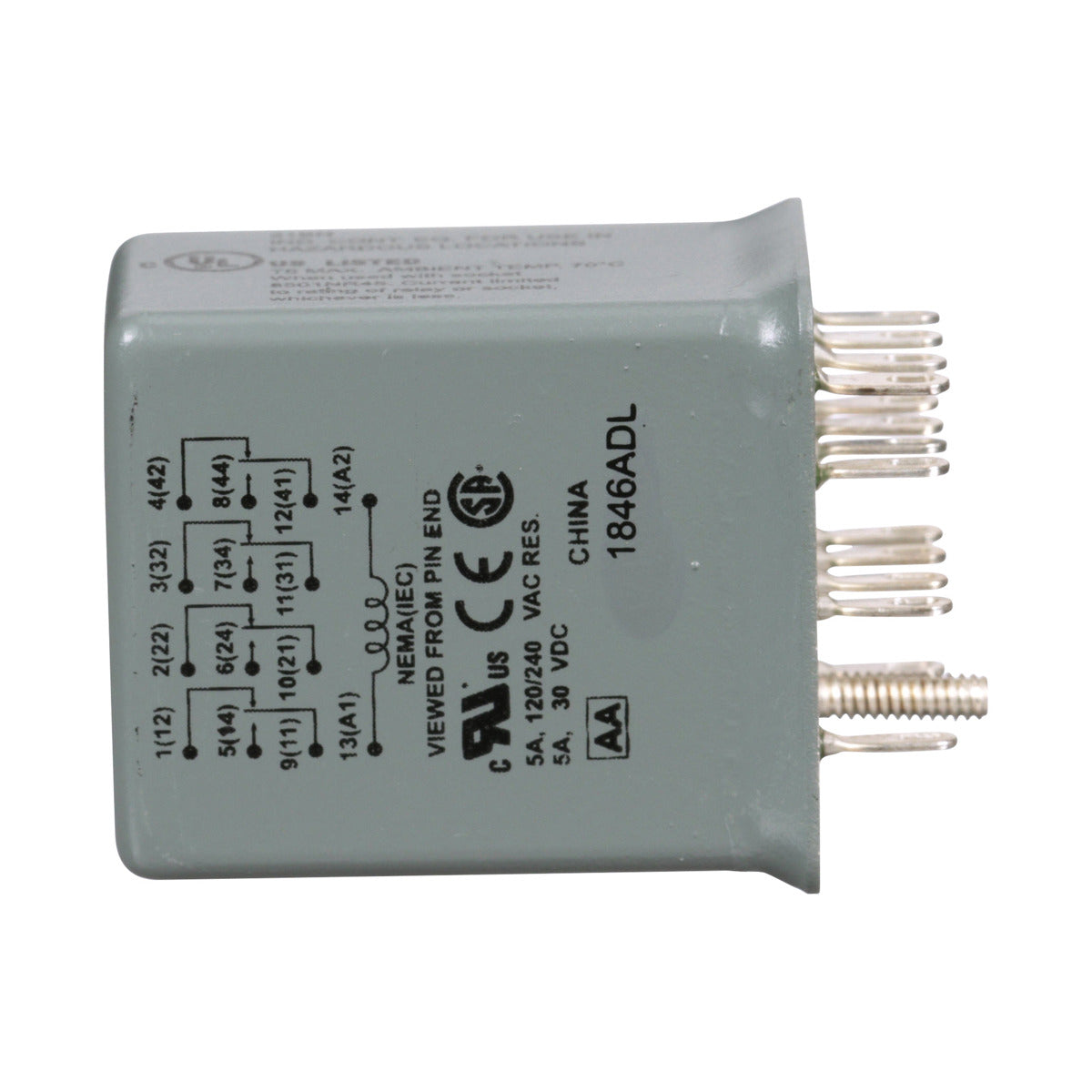

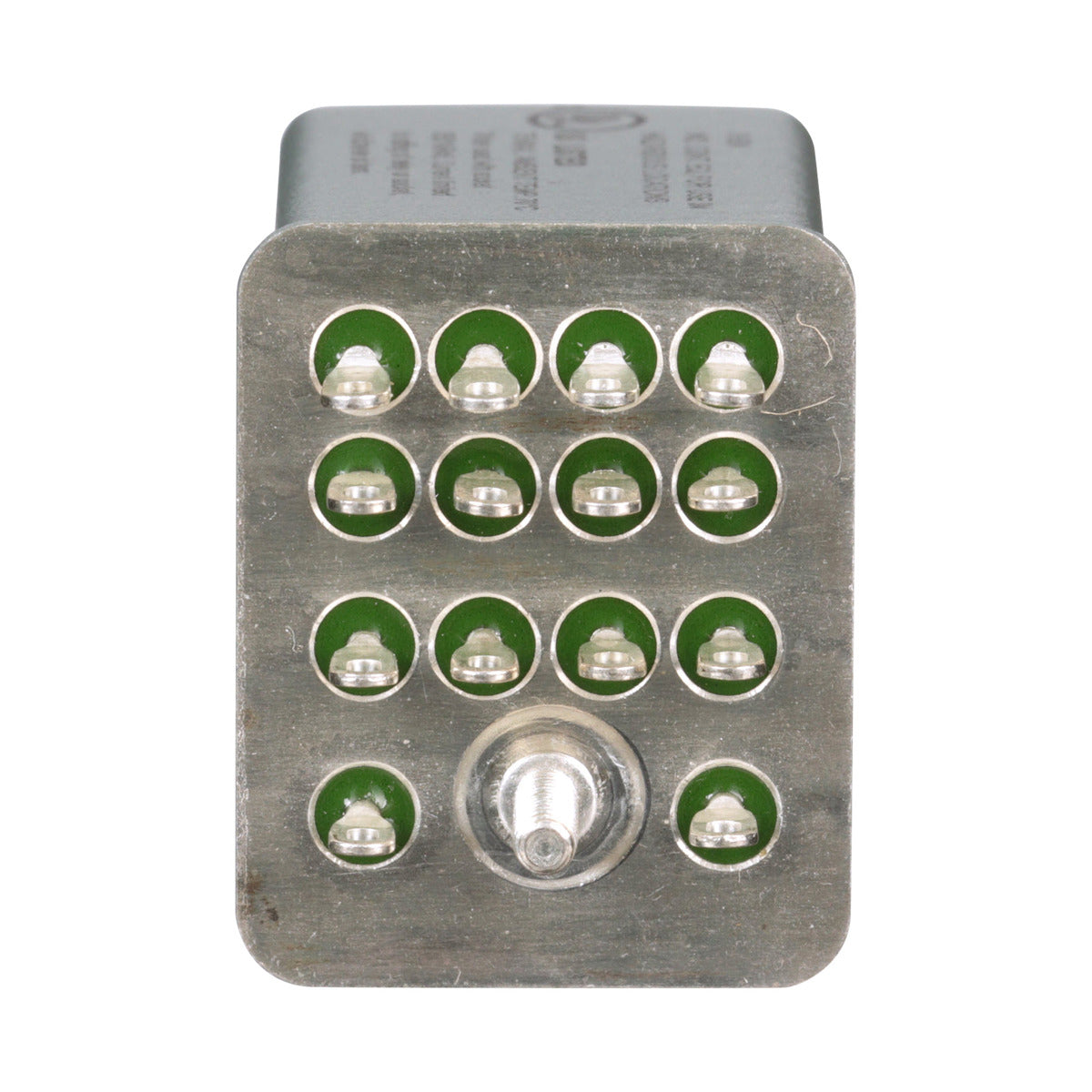

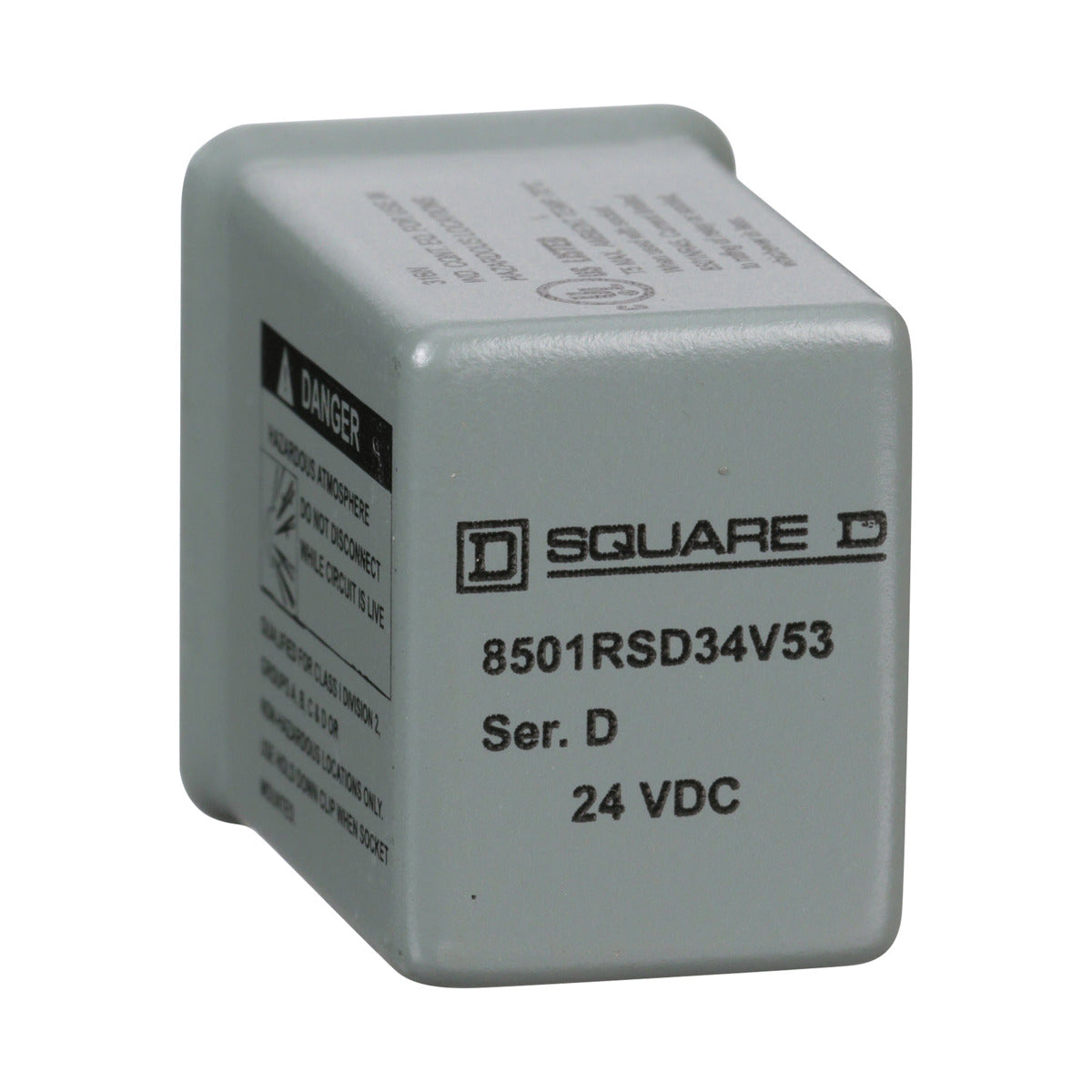

The SQUARE D 8501RSD34V53 is a miniature plug-in relay designed for use in Class 1 Division 2 hazardous locations. This relay plugs into an 8501NR45 or 8501NR45B relay socket for easy replacement. It features 4PDT contact arrangements with four normally open and four normally closed contacts. The contacts have a 5 Amp resistive rating at 240 VAC, 120 VAC, and 30 VDC and a 24 VDC nonreplaceable coil.

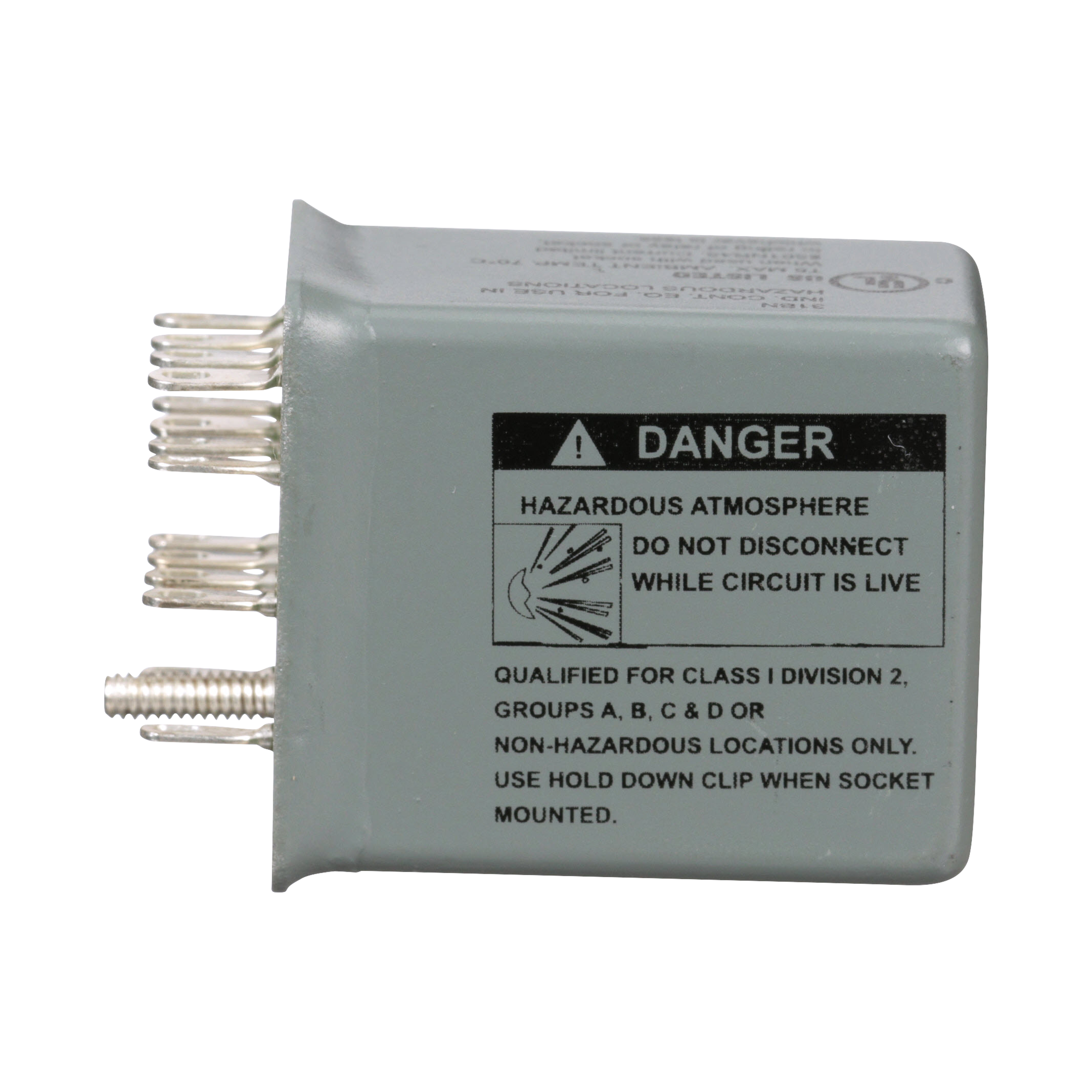

- Designed for use in Class 1 Division 2 hazardous locations
- Plugs into an 8501NR45 or 8501NR45B relay socket
- 5 ampere resistive rating at 240 VAC, at 120 VAC and at 30 VDC
Product Highlights
Miniature plug-in relay with 4PDT contacts, a 5A resistive rating, and a 24 VDC coil. UL listed and CSA certified.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 8501RSD34V53
-
Country of Origin: China
Technical Specifications
-
Type: Miniature Relay;Low voltage;4PDT
-
Brand: Square D
-
Depth: 38.9 mm
-
Width: 23.1 mm
-
Height: 29.4 mm
-
Amperage: 5 Amp
-
Applications: 8501NR45
-
Mounting Type: Socket
-
TC Connection: SPADE
-
Certifications: CE,CSA,UL Listed,UL Recognized
-
Contact Material: Hermetically Sealed Silver Tin Oxide
-
Contact Configuration: 4PDT
-
Operating Temperature: -40-131 Adegrees F
-
Manufacturer: Schneider Electric
-
Country of Origin: China
-
Made in USA: No
-
Special Features: Without test button;No indicator
-
UPC: 785901031895
-
GTIN: 00785901031895
-
Contact Voltage Rating: 240 VAC at 50/60 Hz, 30 VDC
-
Contact Current Rating: 5 Ampere
-
Coil Voltage: 24 VDC
-
Terminal Type: Spade
-
Mounting: Plug-In/Socket
-
Approval: UL (Canada and US), CE
-
Contact Form: 4PDT
-
Contacts: 4 NO; 4 NC
-
Resistive Load: 5A at 240 VAC
-
Blade: 14
-
IGCC: 5359
-
Shape Of Pin: Spade
-
Operating Time: 20 ms - pick-up;20 ms - drop-out
-
Pickup Voltage: 24 V DC
-
Contacts Material: Hermetically sealed silver tin oxide
-
Rated Power In Hp: Not rated
-
Rated Breaking Capacity: 5 A 120 V AC resistive control circuit UL 508;5 A 240 V AC resistive control cir
-
Maximum Switching Voltage: 30 V DC;240 V AC
-
Current Rating: 5 A
-
Manufacturer Part Number: 8501RSD34V53
-
Relay Type: General Purpose
-
Series: 8501 Series
-
Frequency: 50/60 Hz
-
Terminal: Spade
-
Pole: 4
-
Pins: 14
-
Temperature: -40 to 131 deg F
-
product range: 8501R
-
product type: Miniature Relay
-
[Uc] control circuit voltage: 24 V DC
-
pilot light: No indicator
-
manual operator: Without test button
-
horsepower rating: Not rated
-
breaking capacity: 5 A 120 V AC resistive control circuit UL 508;5 A 240 V AC resistive control circuit UL 508;5 A 30 V DC resistive control circuit UL 508
-
ambient temperature range - operational: -40…131 °F (-40…55 °C)
-
product certifications: UL Listed;UL Recognized;CSA;CE
-
Category: 21143-8501 R
