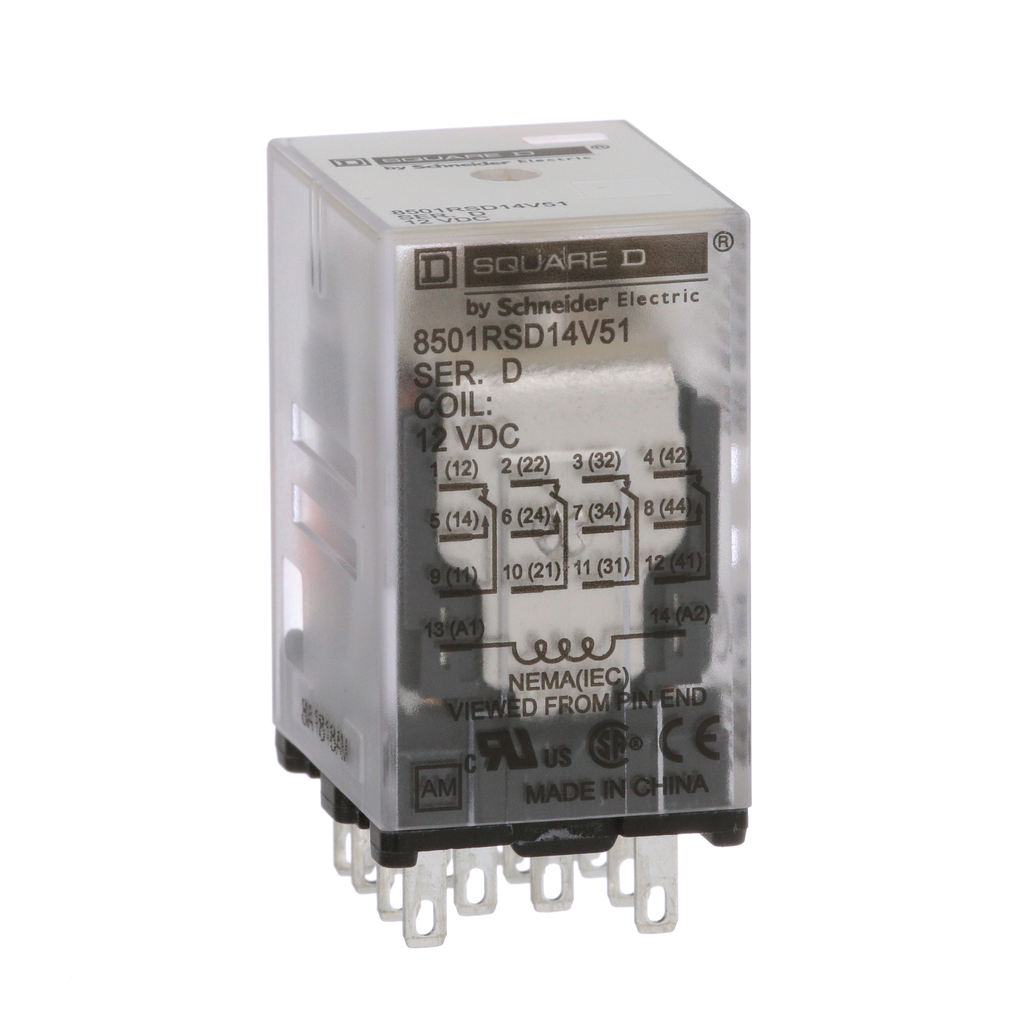

Square D 8501RSD14V51 12 VDC 5 Amp 4PDT 4CO Socket Mount DC Operated Miniature Plug-In Relay

Product Description

The Square D 8501RSD14V51 is a miniature plug-in relay designed for control circuit logic applications. This relay connects easily to a relay socket, allowing quick replacements. It is compatible with the 8501NR45 and 8501NR45B relay sockets. The relay offers 4PDT contact configurations, with four normally open and four normally closed contacts. The contact ratings include six amperes at 277 VAC, eight amperes at 120 VAC, and 30 VDC. It can handle one-third horsepower at 120 VAC and one-half horsepower at 277 VAC. The relay features a non-replaceable 12 VDC coil and is available in various coil voltage options. The 8501RS model is UL listed when used with compatible Square D relay sockets and is recognized by UL and CSA.

• Compatible with 8501NR45 and 8501NR45B sockets
• Four normally open and closed contacts
• Variety of coil voltage options

Product Highlights

This relay is essential for control circuit applications due to its easy plug-in design and solid contact ratings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501RSD14V51
• Coil Voltage: 12 VDC
• Contact Configuration: 4PDT
• Operating Temperature: -40 to 131 degrees F
• Amperage Rating: 5 Amp
• Country of Origin: China
• Certifications: CE, CSA, UL Listed
• Warranty: 18 months
