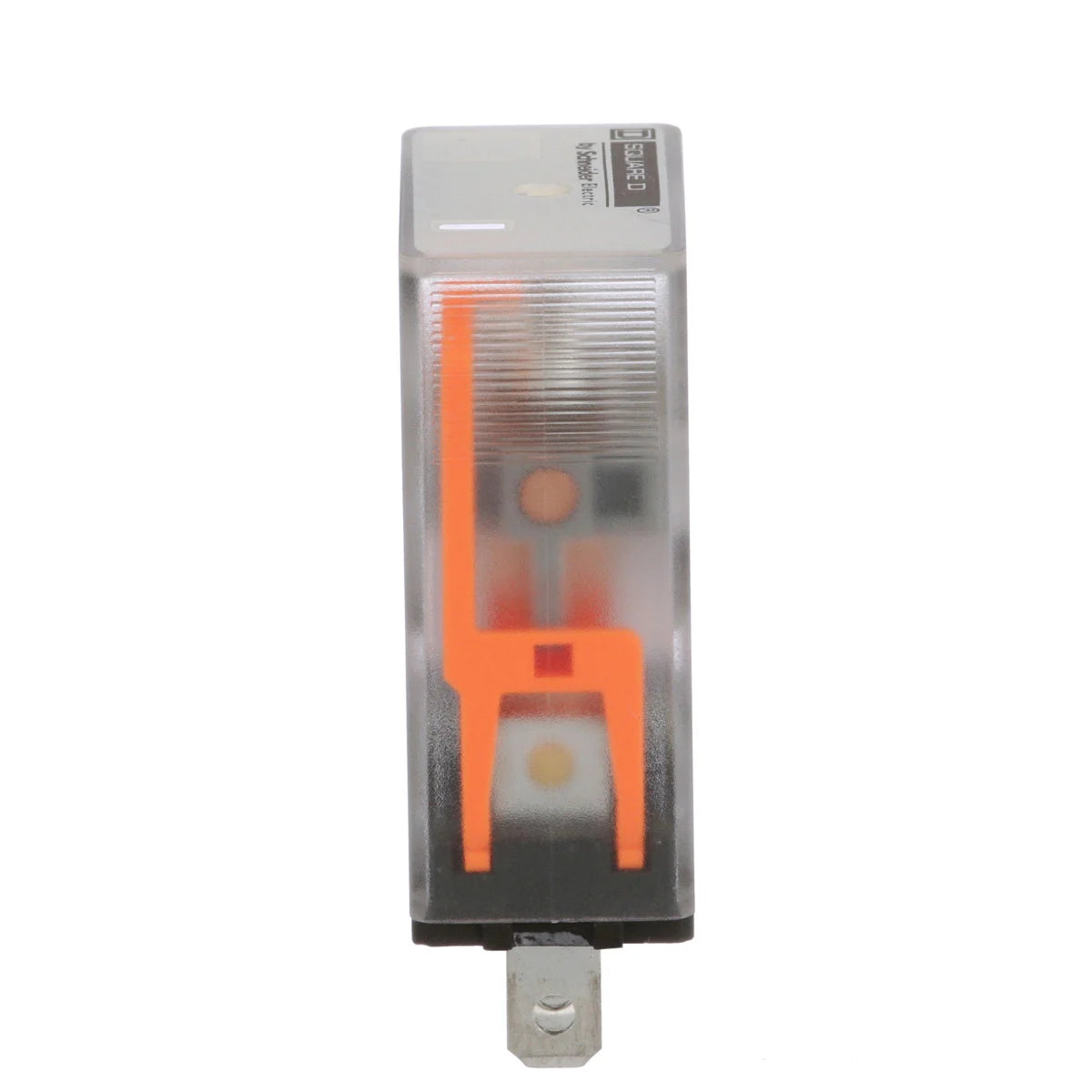

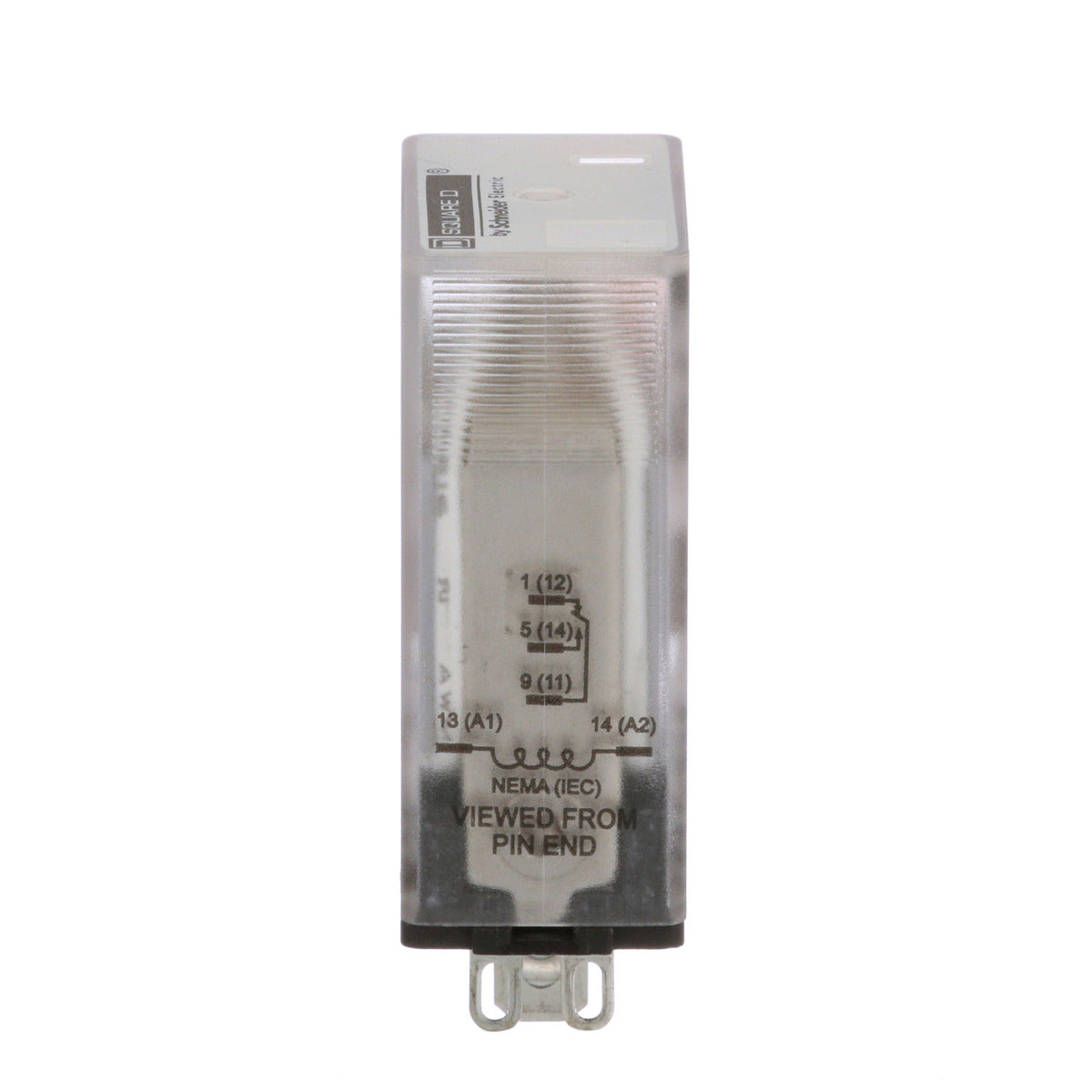

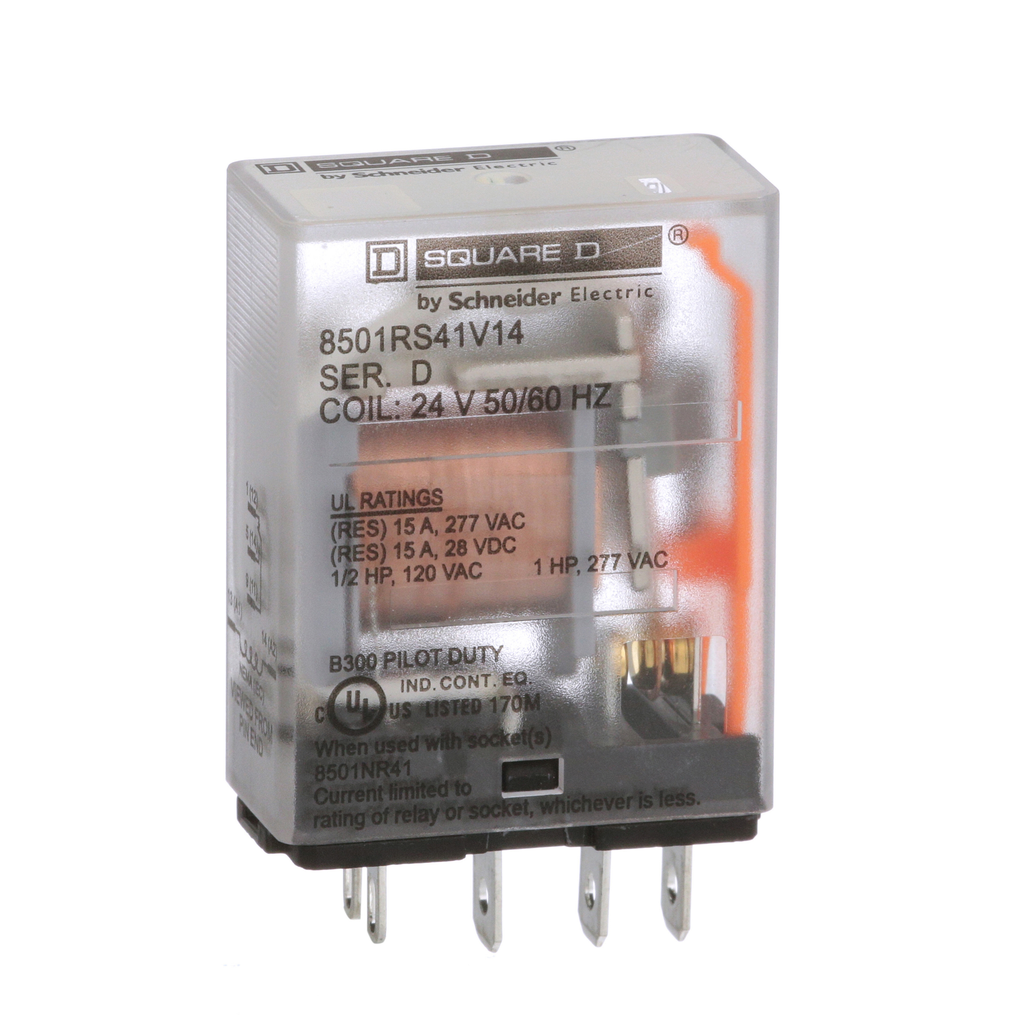

Square D 8501RS41V14 24 VAC 12 Amp SPDT 1CO Socket Mount AC Operated Miniature Plug-In Relay

Product Description

The Square D 8501RS41V14 is a miniature plug-in relay designed for control circuit logic applications. It is compatible with relay socket models 8501NR41 and 8501NR41B, allowing for easy replacement. The relay features single pole double throw (SPDT) contact arrangements with one normally open contact and one normally closed contact. The relay can manage up to 15 amperes of resistive load at 120 VAC and 277 VAC, as well as up to one horsepower at 120 VAC and 277 VAC. The coil operates at 24 VAC and is nonreplaceable, enhancing reliability and maintenance ease.

• Miniature plug-in design ensures simple installation and replacement.
• SPDT contacts rated for various voltages and loads.
• UL listed and CSA certified for safety and quality.

Product Highlights

Ideal for control applications, providing reliable performance in various settings.

Product Information

Standard Information

• Catalog Number: 8501RS41V14
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Depth: 41.8 mm
• Width: 14 mm
• Height: 27.3 mm
• Amperage: 10@240VAC-15@120VAC Amp
• Contact Configuration: SPDT
• Operating Temperature: -40 to 131 Degrees F
• Country of Origin: China
• Certifications: CE, CSA, UL Listed, UL Recognized
• Warranty Length: 18 months
