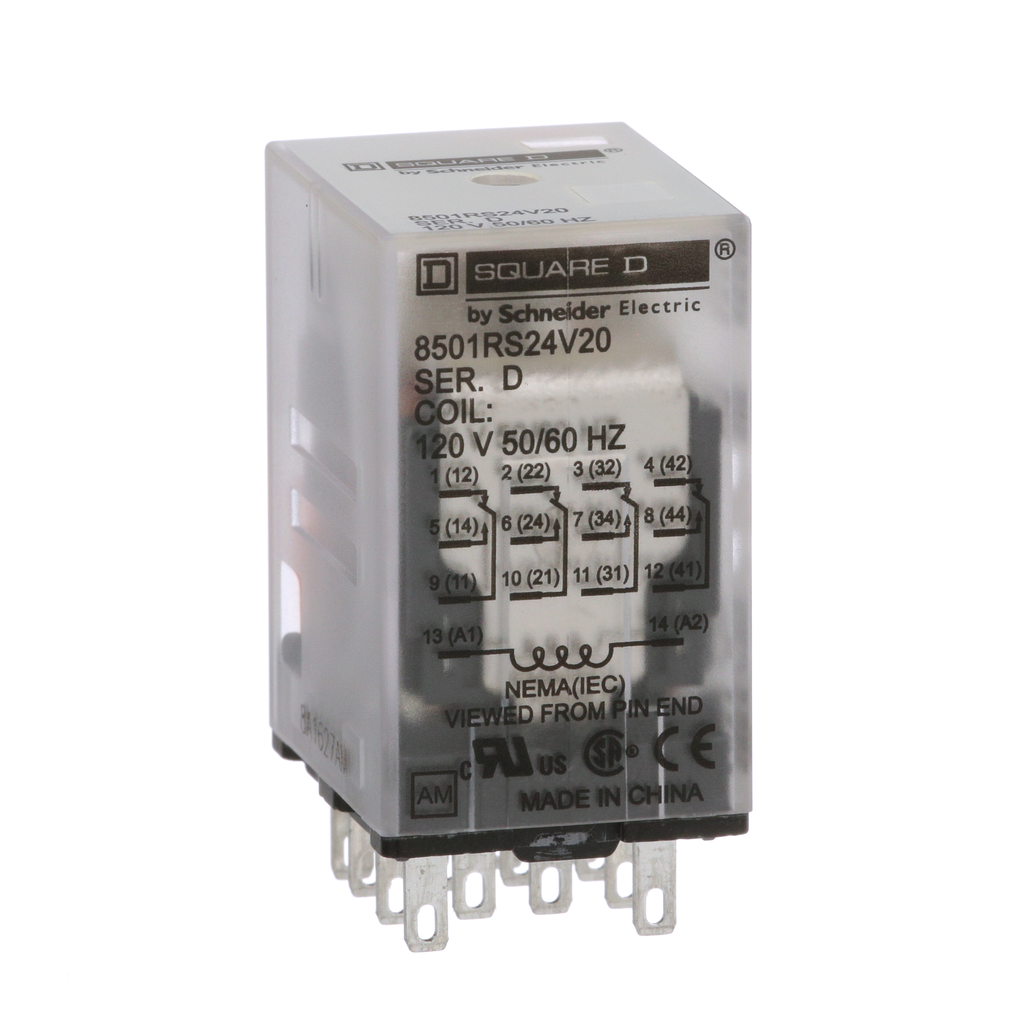

Square D 8501RS24V20 Plug In Relay 120 VAC 1 Amp 4PDT 4CO

Product Description

The Square D 8501RS24V20 is a miniature plug-in relay designed for control circuit logic applications. This relay easily plugs into compatible sockets, such as the 8501NR45 or 8501NR45B, facilitating quick replacement. It features four normally open and four normally closed contacts in a 4PDT contact arrangement, providing versatility for various logic control tasks.

• 3 Amp resistive rating at 277 VAC
• 122 VAC, 30 VDC operation with a 1/16 HP rating
• Nonreplaceable coil with a 120 VAC voltage

Product Highlights

The 8501RS24V20 is UL listed and recognized by CSA for safety, ensuring reliable performance in industrial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8501RS24V20
• Mounting Type: Socket
• Amperage: 1 Amp
• Country of Origin: China
• Warranty Length: 18 months
• Operating Temperature: -40 to 131 degrees F
• Contact Configuration: 4PDT
• Contact Material: Gold Plated Bifurcated Silver
