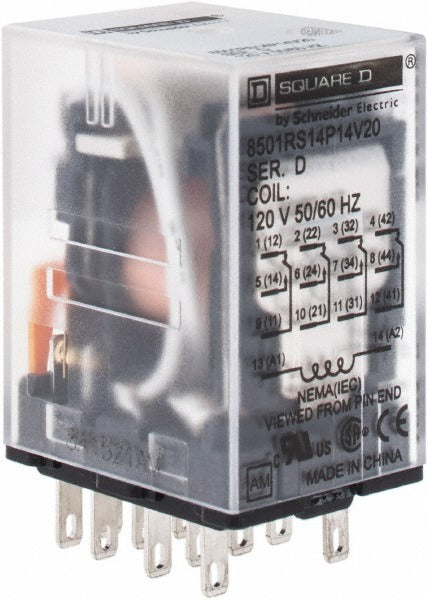

Square D 8501RS14P14V20 General Purpose Relay 4PDT

Product Description

The SQUARE D 8501RS14P14V20 is an electromechanical plug-in general purpose relay rated for 5 amps at 240 VAC with a 4PDT contact form. It operates on a 120 VAC coil at 50/60 Hz and is designed for industrial and commercial control circuit applications. The plug-in terminal type allows for fast installation and removal without rewiring. With a motor load rating of 1/6 horsepower at 120/240 volts, this relay handles light motor switching as well as standard control circuit functions. Electricians and controls technicians use this relay in panel-mounted relay sockets for automation, HVAC controls, and machine control wiring.

This relay fits residential and light commercial control panel applications where a compact, socketed general purpose relay is required. It is well suited for use in HVAC control systems, building automation panels, and industrial equipment requiring multi-pole switching. The plug-in design makes it a practical choice for applications that benefit from fast field replacement without disturbing the surrounding wiring harness.

Key Features

• 4PDT contact form provides four independent switching poles for flexible circuit control
• Plug-in terminal type allows tool-free relay swap without rewiring the socket
• Rated 5 amps at 240 VAC for light-duty motor and resistive load switching
• 120 VAC coil operates at both 50 Hz and 60 Hz for broad application compatibility
• Motor load rating of 1/6 hp at 120/240 volts supports small motor switching
• Meets CE, CSA, RoHS, and UL Recognized standards for use in certified installations

Compatibility

Designed as an OEM-style plug-in general purpose relay for use in standard relay sockets accepting 4PDT plug-in relays with matching terminal configurations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or inserting the relay. Verify the socket contact rating and coil voltage match this relay before installation. Do not exceed the relay contact or motor load ratings for the intended circuit.
