Square D 8501NR62 300 VAC 10 Amp Din Rail/Direct Panel Mount Double Tier Relay Socket

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: 8501NR62
Availability: In Stock

Ships same day if ordered by 12 pm
$36.53
$36.53
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

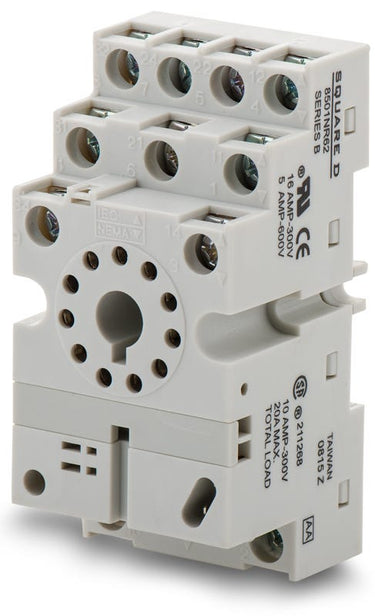

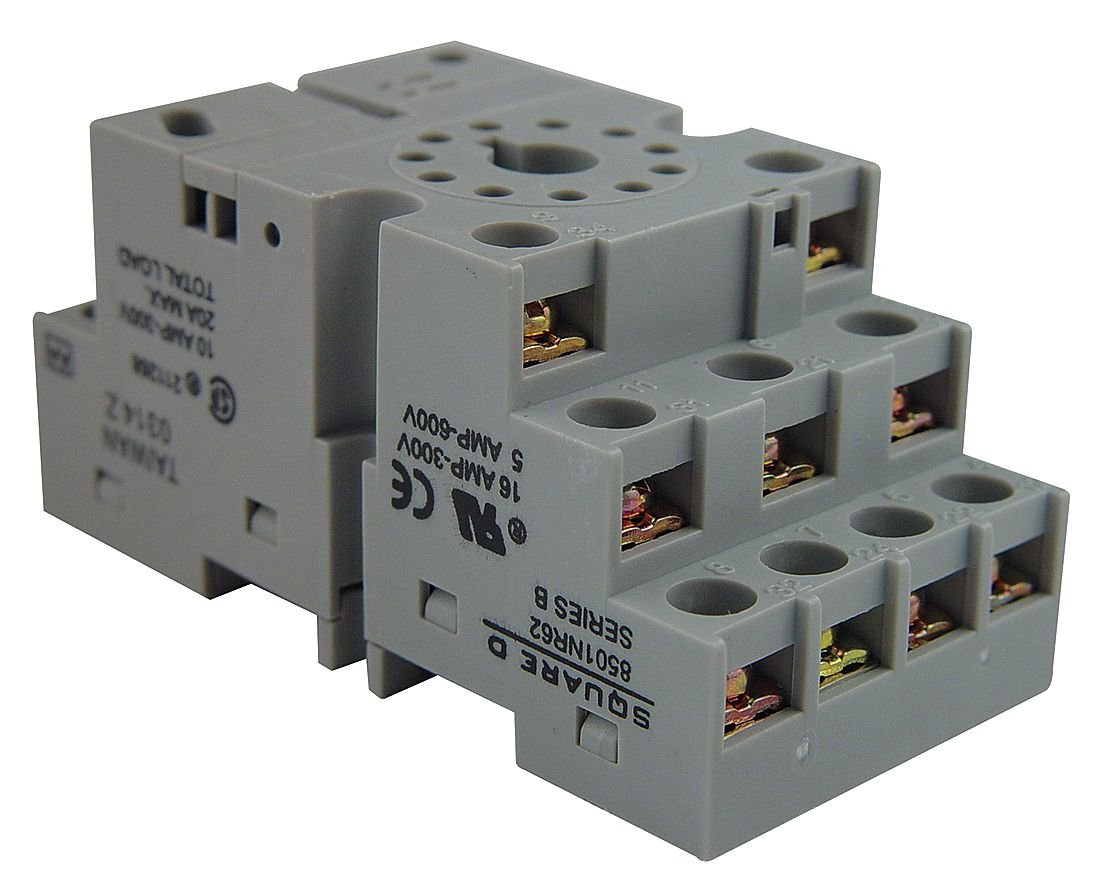

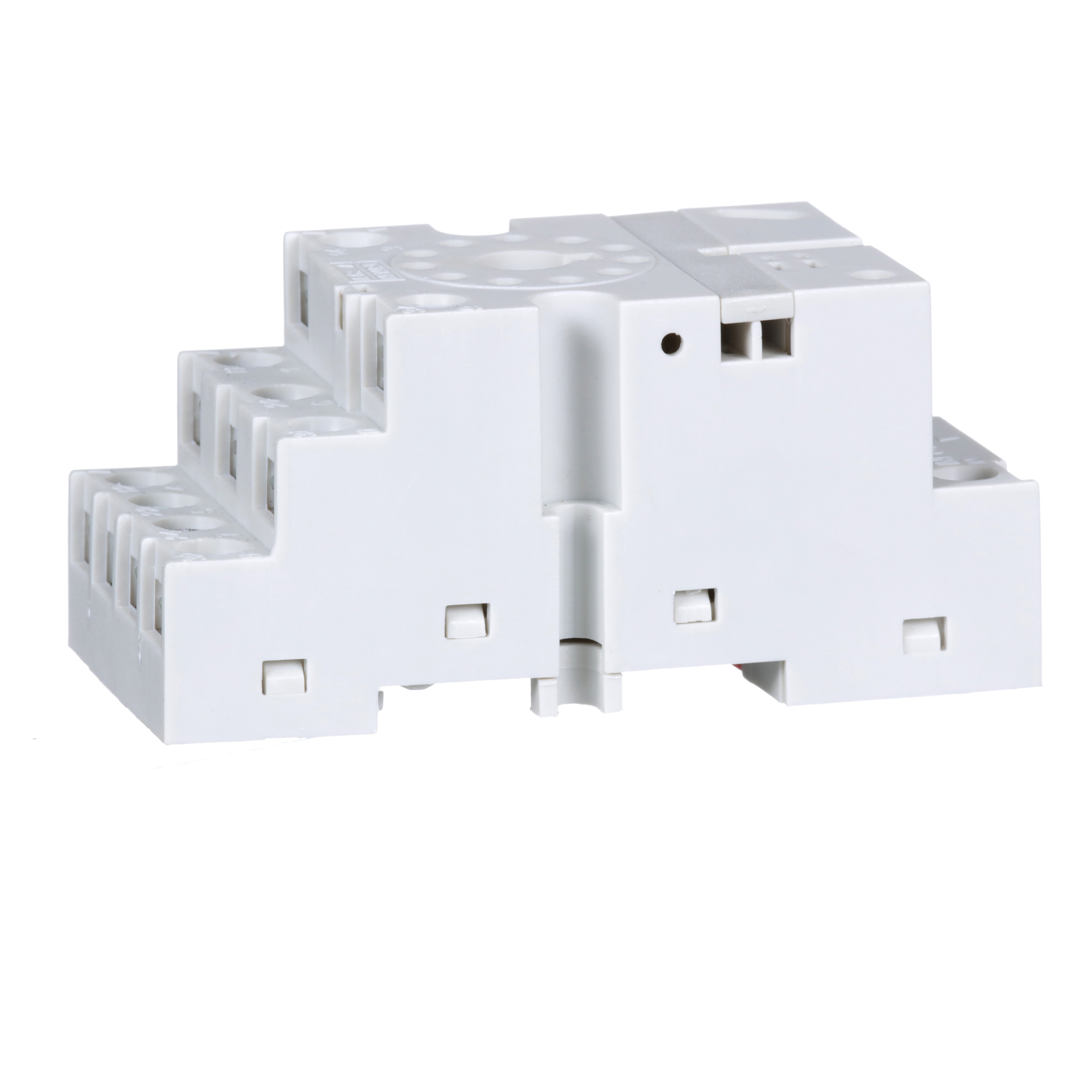

The Square D 8501NR62 plug-in relay socket is designed for wiring 8501K plug-in relays. It can be mounted on a 35mm DIN rail or directly to a panel. The 8501KPR13 and 8501KPDR13 relays and 9050JCK timers are compatible with this 11-pin tubular socket. The socket terminals feature pressure wire clamps for a secure connection and stacked terminals to save panel space. It is UL component recognized and CSA certified.

  • Designed for proper wiring of 8501K plug in relays
  • Can be mounted on 35mm DIN rail or directly to a panel
  • Compatible with 8501KPR13 and 8501KPDR13 relays and 9050JCK timers

Product Highlights

The Square D 8501NR62 relay socket ensures secure connections and saves space with its stacked terminals. It is compatible with various relays and timers.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: 8501NR62
  • Country of Origin: USA
Technical Specifications
Type
Relay Socket
Brand
Square D
Depth
37 mm
Width
38 mm
Height
81 mm
Amperage
5-16 Amp
Mounting Type
DIN Rail,Panel
Certifications
CE,CSA,UL Recognized
Number of Pins
11
CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Taiwan
Line Rated Current
16 A
Catalog Number
8501NR62
Manufacturer
Schneider Electric
Made in USA
No
Contact Rating
16A @ 300VAC
Terminal Type
11 Pin Tubular, Screw Clamp
Approval
UL (Canada and US), CSA, CE
Used On
8501K/R Series Plug-In Relay, 8430 MPS Phase Failure Relay, 9050JCK Timer
Wire Size
22 to 12 AWG
Amps
10
Volts
300
Item
Relay Socket
Socket Type
Elevator, Finger Safe
Base Style
Octal
Contact Form
3PDT
Mounting
DIN Rail, Surface
Socket Code
B
Electrical Connection
Screw Clamp
Status Indicator
None
Standards
CE, CSA, RoHS, UL Recognized
Series
8501
Mpn
8501NR62
Upc
785901583714
Gtin
785901583714
Alternate Catalog Number
8501NR62
ARRA Compliant
N
Buy American Compliant
N
EU RoHS Indicator
Y
Voltage Rating
300/600 VAC
Amperage Rating
5 to 16 A
Suitable For Use With
Class 8501 Series Miniature Plug-In Relay
