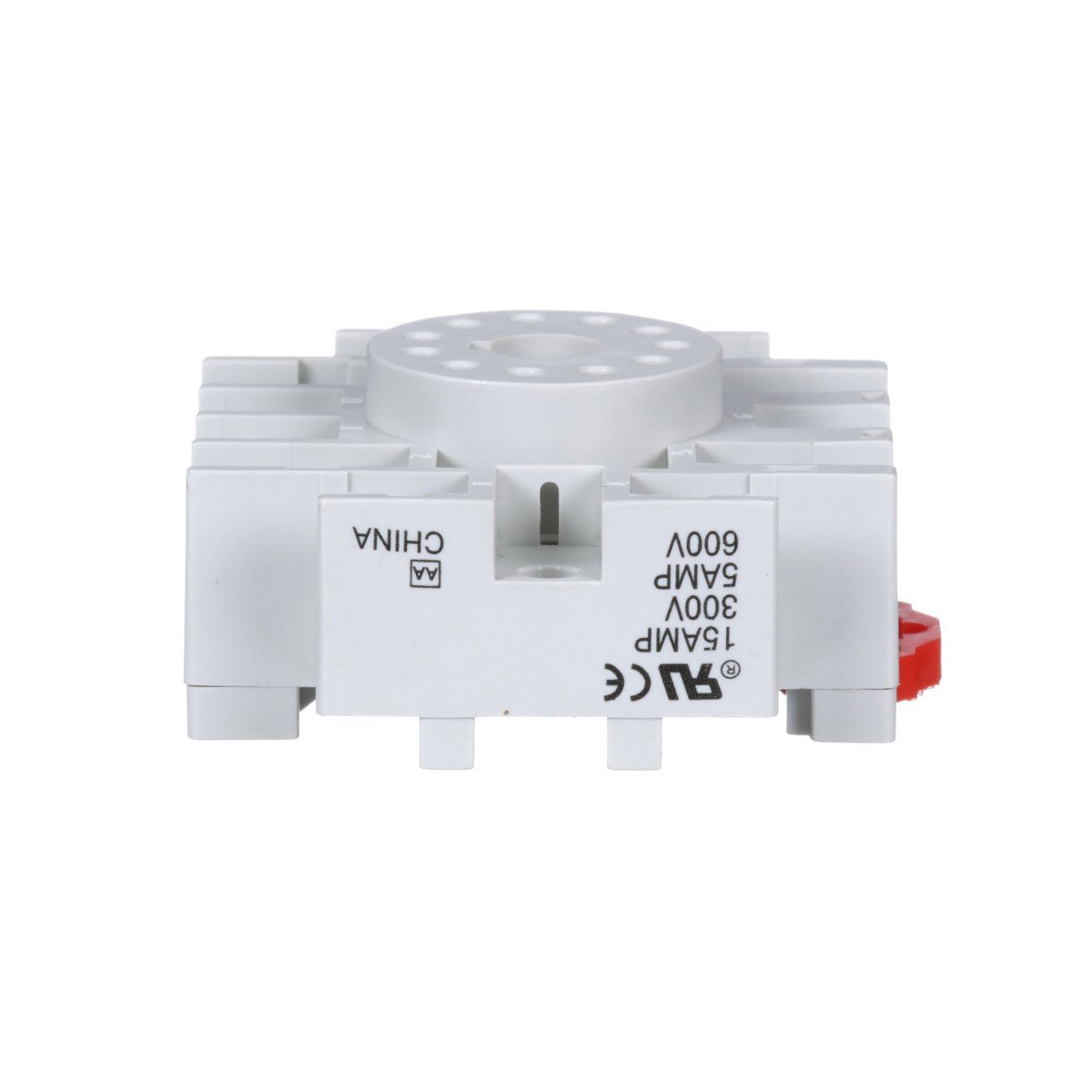

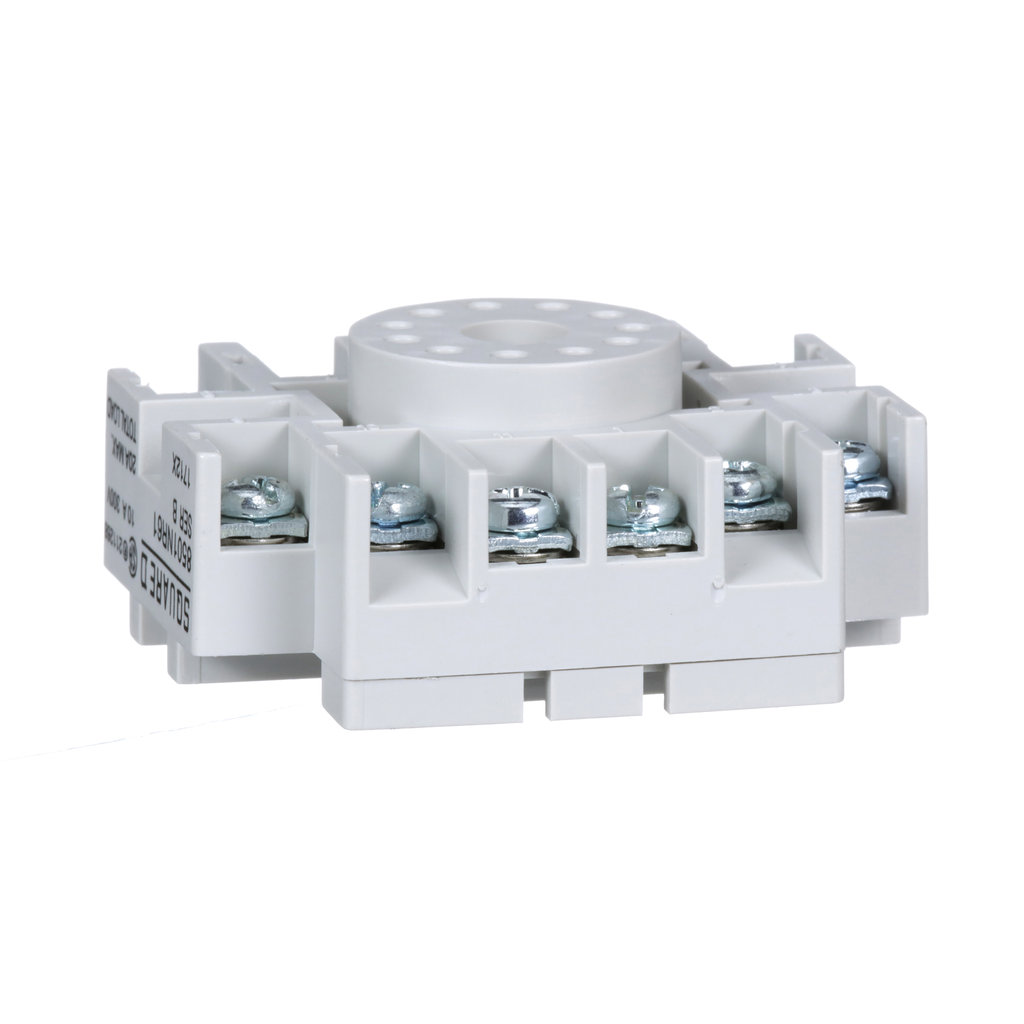

Square D 8501NR61B 600 VAC 5 Amp Din Rail/Direct Panel Mount 1-Tier Relay Socket

Product Description

The Square D 8501NR61B is a reliable relay socket designed for use with 8501K plug-in relays. This socket accommodates installation on a thirty-five millimeter DIN rail or can be mounted directly onto panels. It is compatible with the 8501KPR13, 8501KPDR13 relays, and 9050JCK timers, all of which connect easily into the socket featuring eleven tubular pins. The terminals of this socket utilize pressure wire clamps to ensure secure connections. Designed for straightforward wiring, the terminals are not stacked, which simplifies the installation process. This product is UL recognized and CSA certified, meeting safety standards.

• Compatible with 8501K relay series and 9050JCK timers
• Pressure wire clamps for secure connections
• UL recognized and CSA certified for safety

Product Highlights

This relay socket is built for durability and efficacy in control applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501NR61B
• Amperage: 5-15 Amp
• Mounting Type: DIN Rail, Panel
• Number of Pins: 11
• Dimensions: 24.6 mm (Depth), 59 mm (Width), 54.8 mm (Height)
• Certifications: CE, CSA, UL Recognized
• Warranty Length: 18 months
• Country of Origin: China
