Square D 8501NR52 Relay Socket 300 VAC 10 Amp Din Rail/Direct Panel Mount Double Tier

Product Description

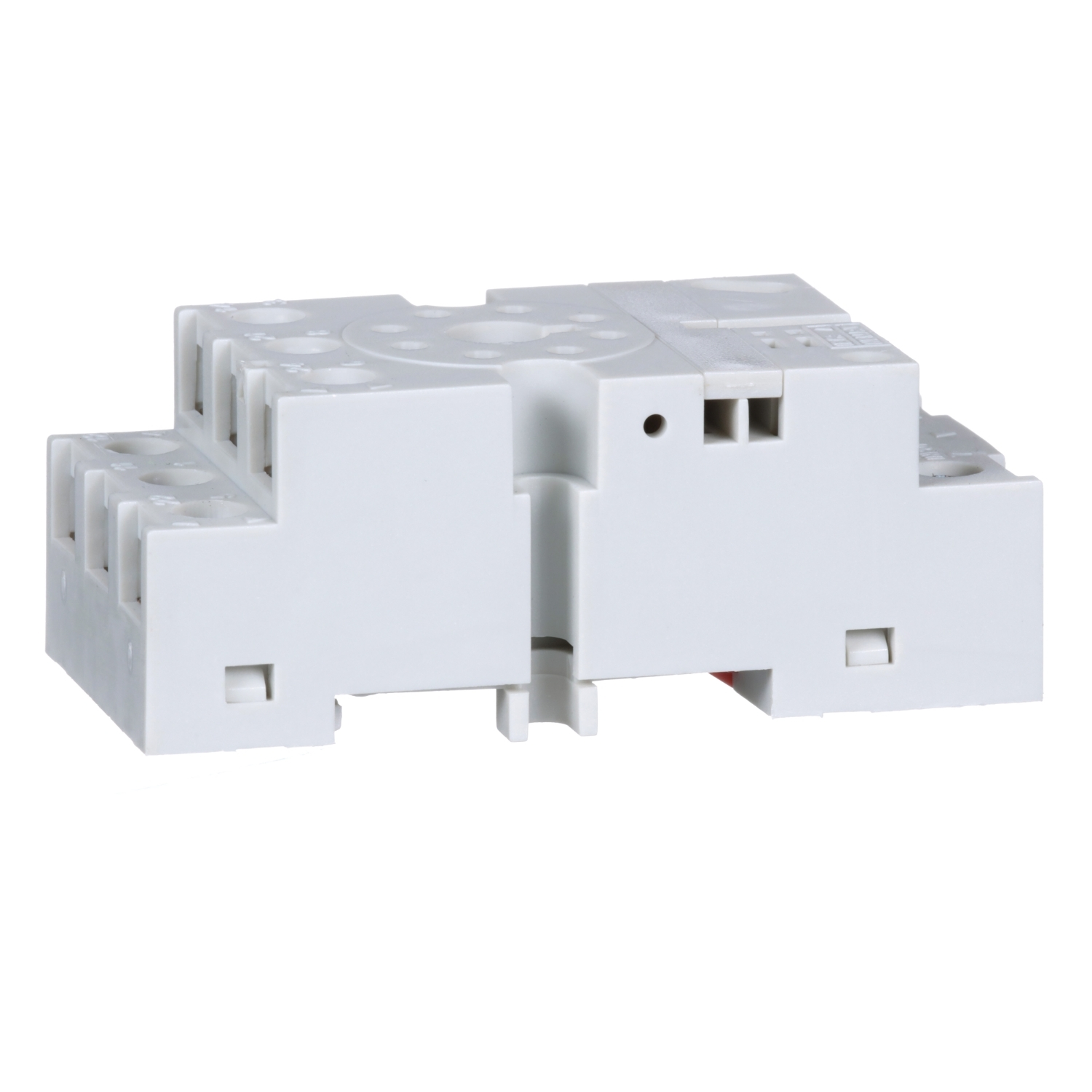

The SQUARE D 8501NR52 relay socket is designed for the proper wiring of 8501K plug-in relays. This socket can be mounted on a 35mm DIN rail or directly to a panel. It is compatible with 8501KPR12 and 8501KPDR12 relays and 9050JCK timers and is designed for 8 tubular pins. The socket terminals feature pressure wire clamps for a secure connection.

• Designed for proper wiring of 8501K plug in relays
• Can be mounted on 35mm DIN rail or directly to a panel
• Compatible with 8501KPR12 and 8501KPDR12 relays and 9050JCK timers

Product Highlights

This relay socket features stacked terminals to save panel space and is UL component recognized and CSA certified.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8501NR52
• Country of Origin: Taiwan

Technical Specifications

• Type: Relay Socket
• Brand: Square D
• Depth: 36 mm
• Width: 36 mm
• Height: 77.5 mm
• Amperage: 5-16 Amp
• Mounting Type: DIN Rail,Panel
• Certifications: CE,CSA,UL Recognized
• Number of Pins: 8
• Line Rated Current: 16 A
• Manufacturer: Schneider Electric
• Country of Origin: China
• Contact Rating: 300 V 15 Ampere, 600 V 10 Ampere (UL), 300 V 10 Ampere (CSA)
• Terminal Type: 8 Pin Tubular, Screw Clamp
• Approval: UL (Canada and US), CSA, CE
• Used On: 8501K/R Series Plug-In Relay, 8430 MPS 240 V Phase Failure Relay, 9050JCK Timer
• Wire Size: 22 to 12 AWG
• Connection: Double-Tiered Screw Clamp
• Pin Count: 8
• Relay Compatibility: 8501KP(D)12 and 9050JCK
• Mounting: DIN rail;panel
• Electrical Connection: Double tiered screw clamp terminals
• Volts AC: 600
