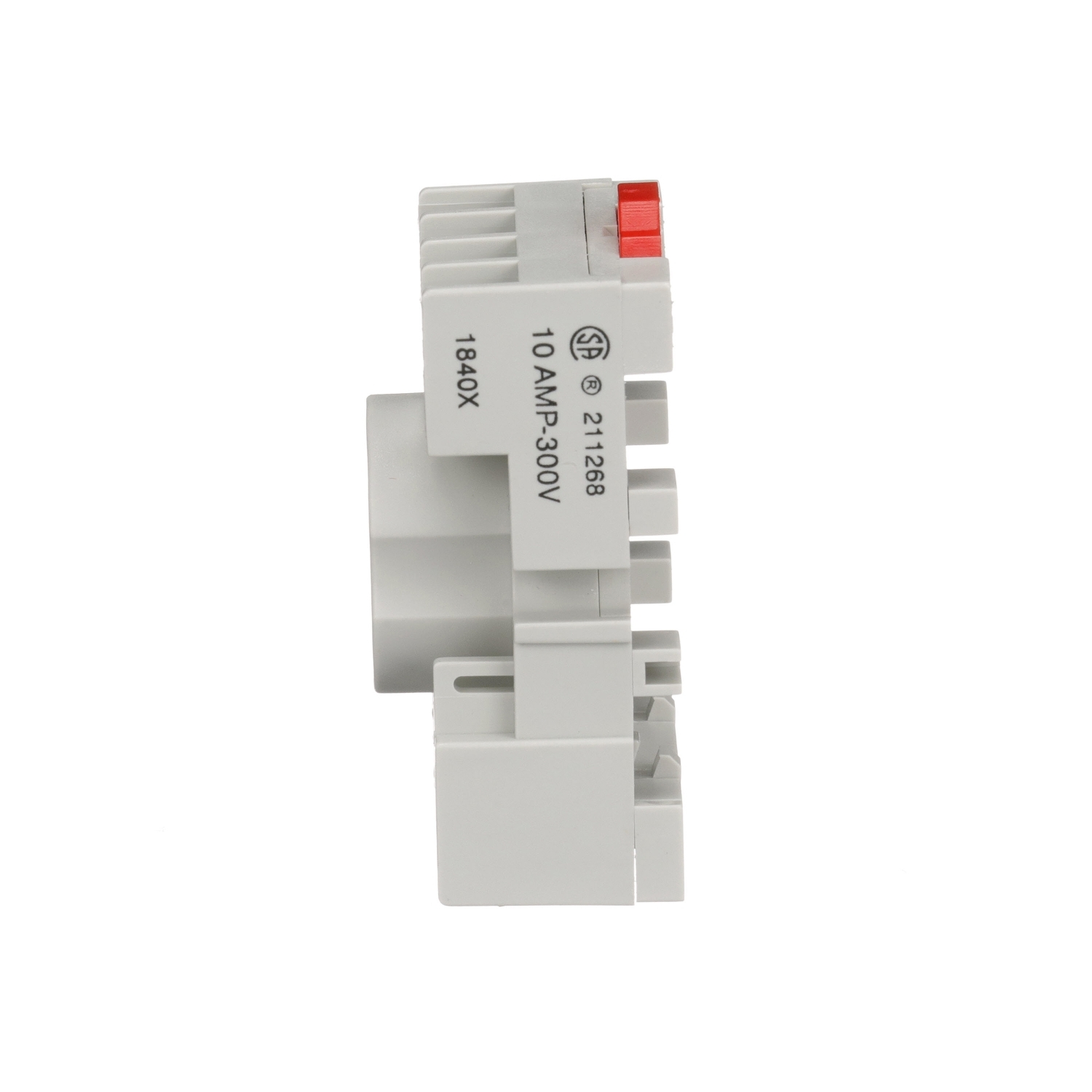

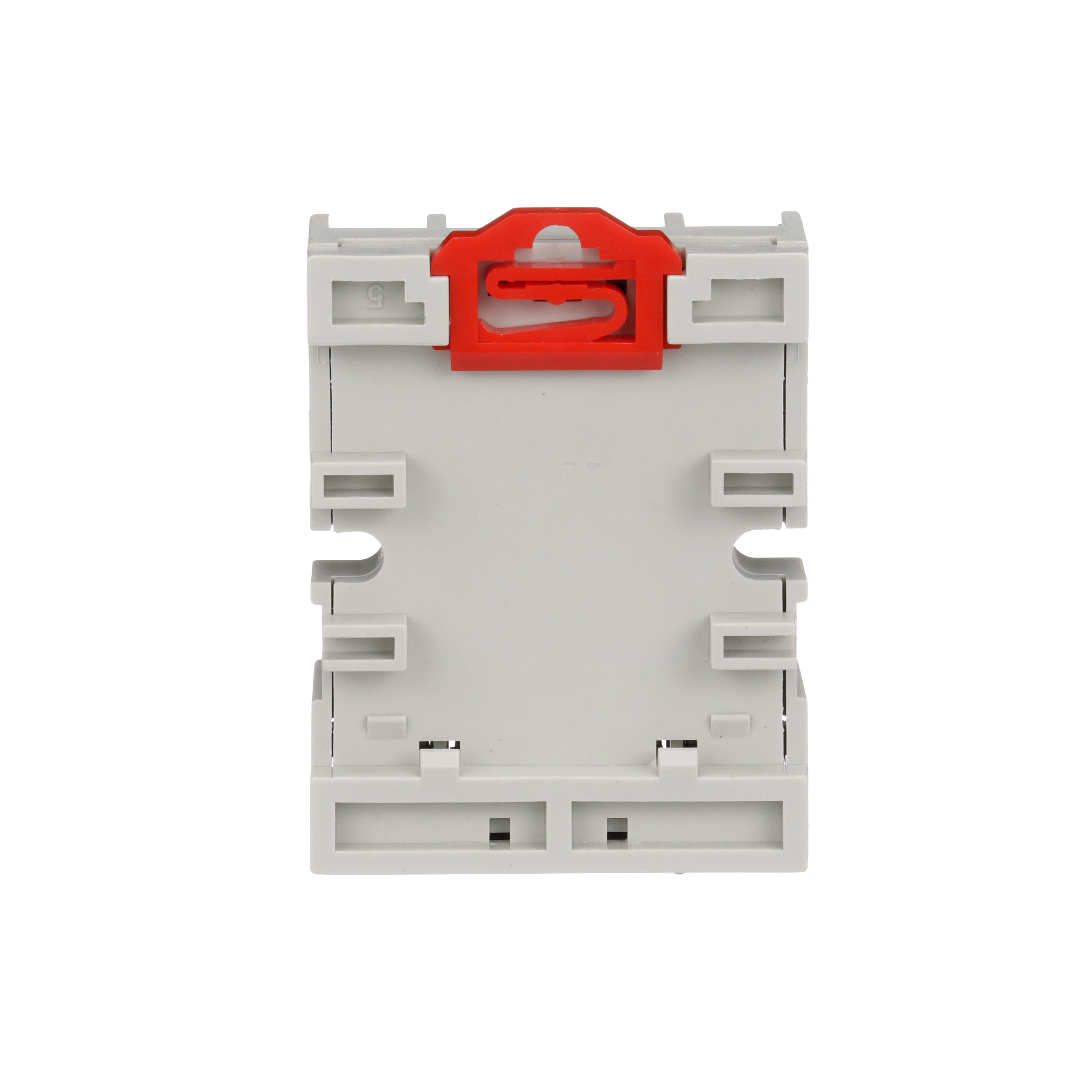

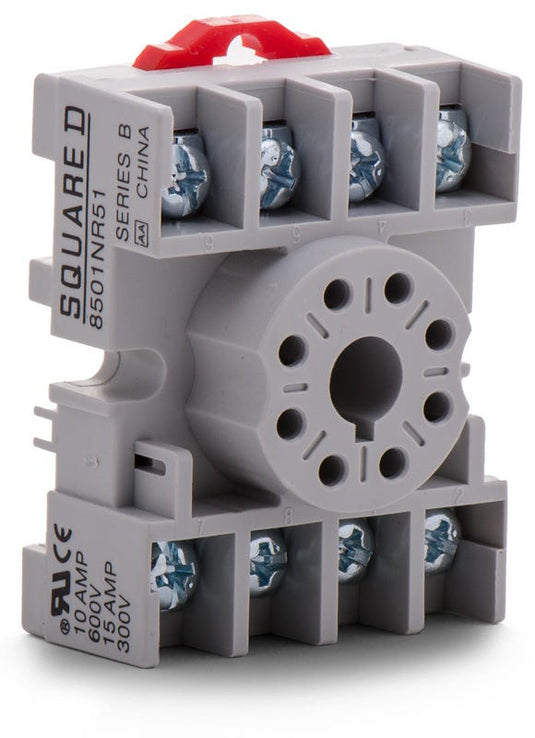

Square D 8501NR51B 600 VAC 10 Amp Din Rail/Direct Panel Mount 1-Tier Relay Socket

Product Description

The Square D 8501NR51B plug-in relay socket is designed for wiring 8501K plug-in relays. It can be mounted on a 35mm DIN rail or directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers are compatible with this socket, which features 8 tubular pins and pressure wire clamps for a secure connection. The socket terminals are designed to be non-stacked for easier wiring.

• For use with 8501 K plug in relays and 8501R miniature plug in relays
• Pressure wire connectors
• UL Component Recognized and CSA Certified

Product Highlights

This relay socket features pressure wire connectors and is UL component recognized and CSA certified.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8501NR51B
• Country of Origin: China

Technical Specifications

• Type: Relay Socket
• Brand: Square D
• Depth: 24.6 mm
• Width: 40 mm
• Height: 54 mm
• Amperage: 10@600V-15@300V Amp
• Mounting Type: DIN Rail,Panel
• Certifications: CE,CSA,UL Recognized
• Number of Pins: 8
• Line Rated Current: 15 A
• Manufacturer: Schneider Electric
• Country of Origin: China
• Mounting: DIN rail;panel
• Electrical Connection: Single tiered screw clamp terminals
• Series: 8501N
• Suitable For Use With: Class 8501 Series Miniature Plug-In Relay
