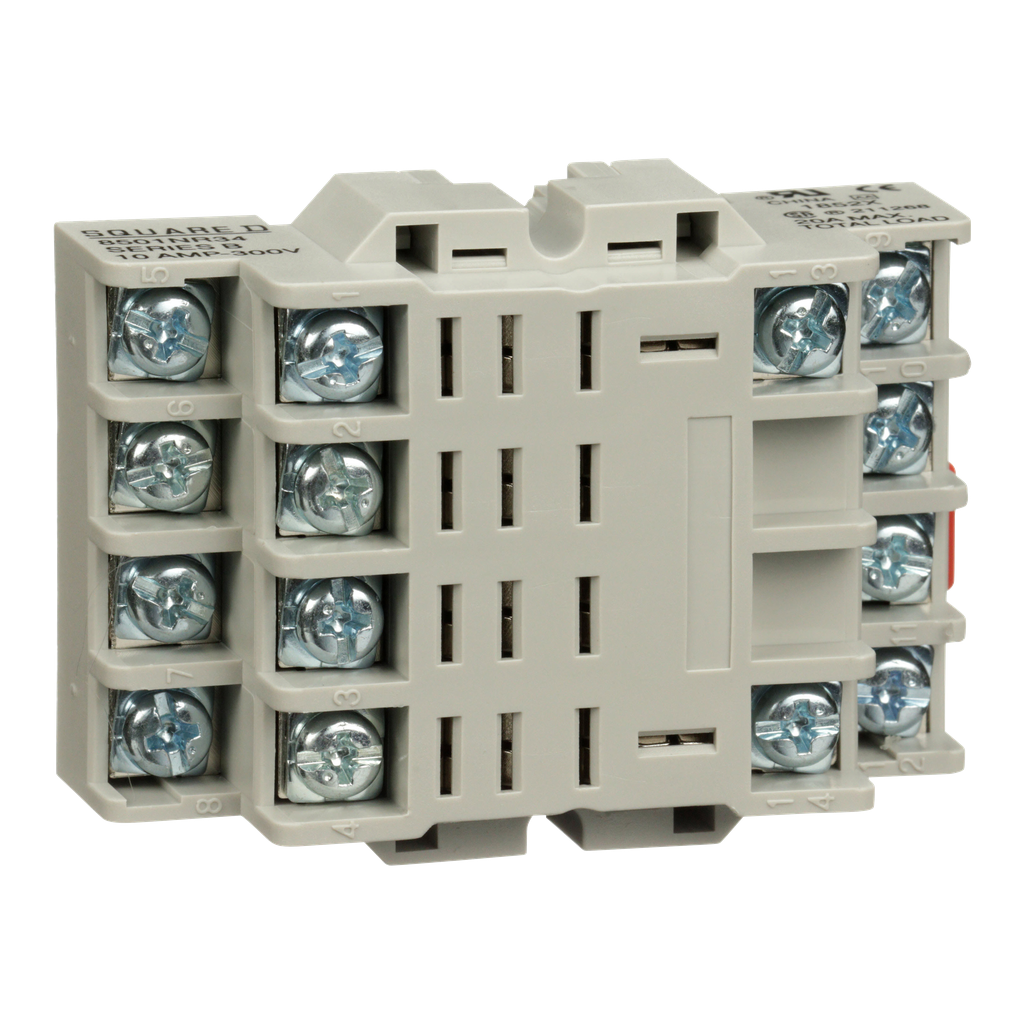

Square D 8501NR34 300 VAC 10 Amp Din Rail/Direct Panel Mount Double Tier Relay Socket

Product Description

Square D 8501NR34 is a relay socket designed for reliable wiring of 8501R plug-in relays. This socket can be mounted on a thirty-five millimeter DIN rail or directly installed on a panel. It accommodates 14 blade pins for seamless connection with compatible relays, including models 8501RS44 or 8501RSD44. Terminals feature pressure wire clamps, ensuring secure connections. The stacked terminal design helps save panel space. This relay socket meets UL recognition and CSA certification standards.

• Compatible with 8501R plug-in relays
• Pressure wire clamps for secure connections
• UL recognized and CSA certified

Product Highlights

The Square D 8501NR34 relay socket is ideal for controlling and automating systems in various electrical applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8501NR34
• Amperage: 10 Amps at 300 Volts
• Mounting Type: DIN Rail, Panel
• Number of Pins: 14
• Width: 50.3 mm
• Depth: 27.7 mm
• Height: 69.6 mm
• Country of Origin: China
