Product Description

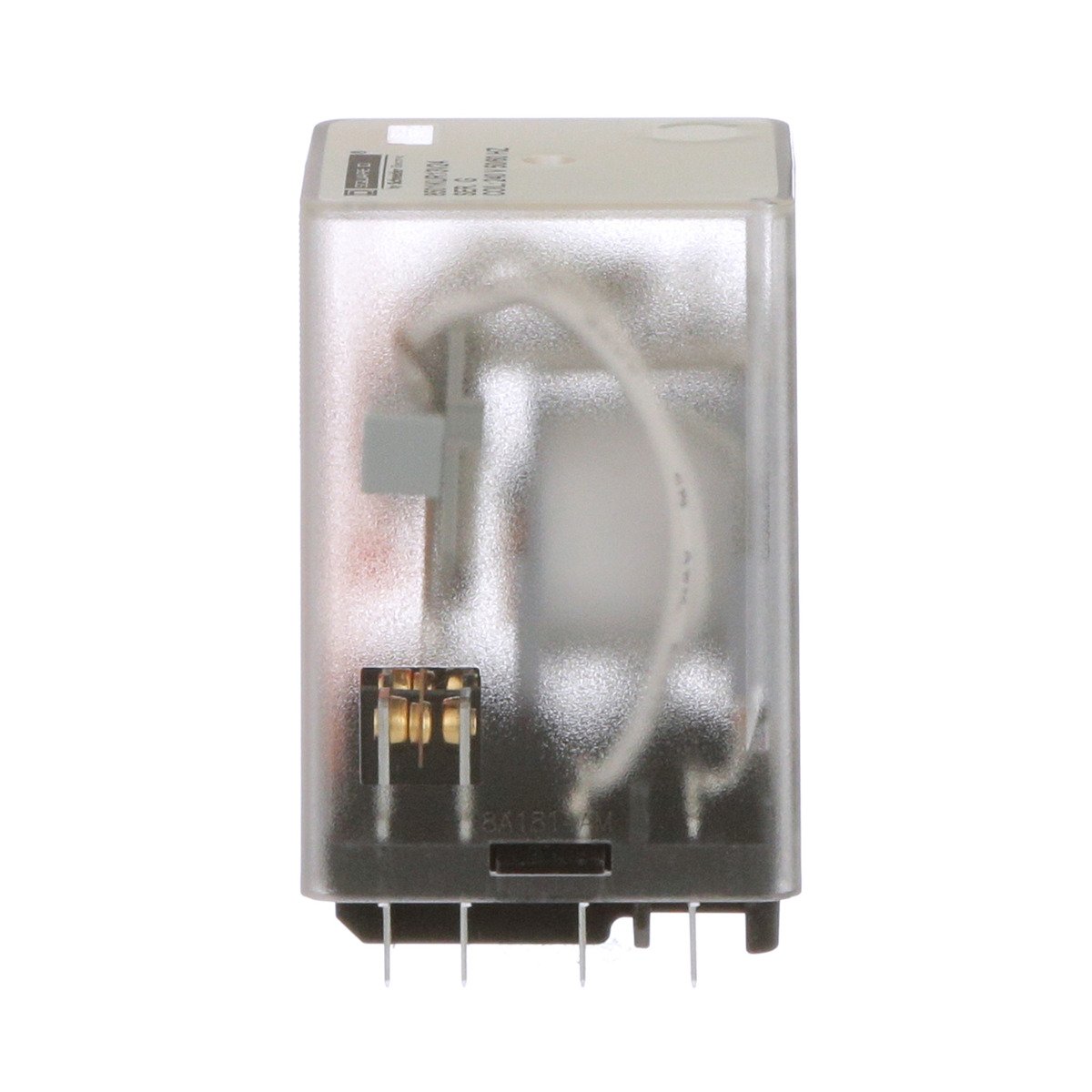

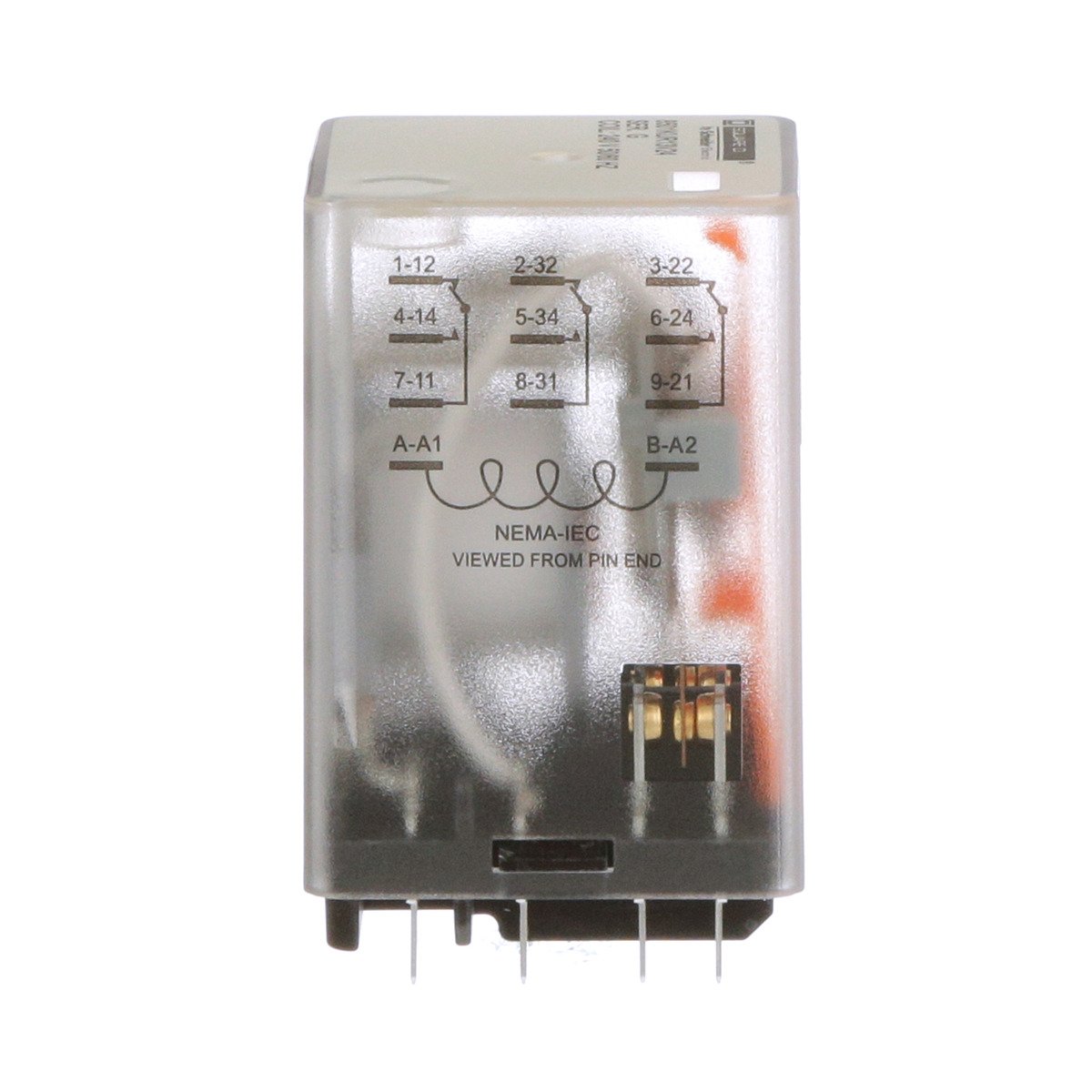

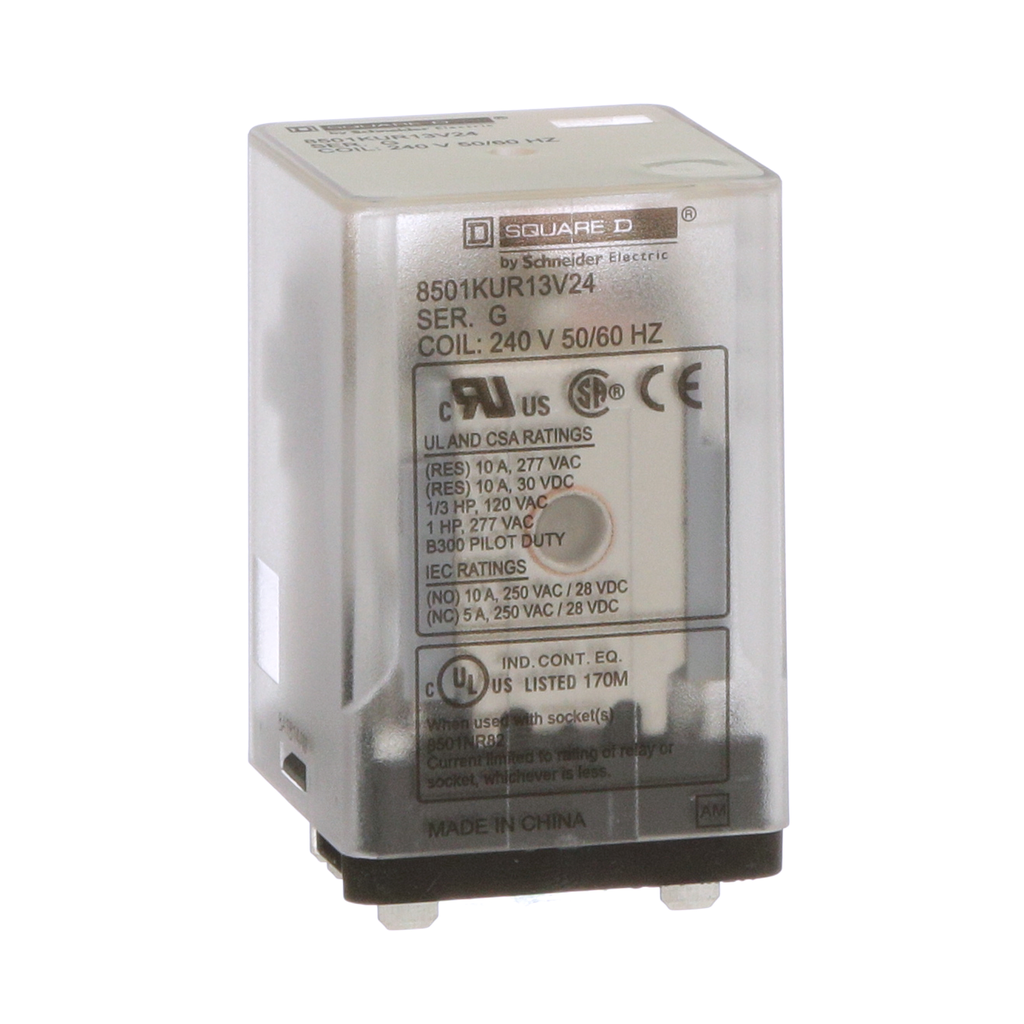

Square D 8501KUR13V24 is a universal plug-in relay used for multipole switching applications at 300 VAC or lower. This relay connects to a relay socket for easy replacement. Specifically, it fits into the 851NR82 relay socket. The contact arrangement is 3PDT, featuring three normally open and three normally closed contacts. Each contact has ratings of ten amperes at 277 VAC and twenty-eight VDC, as well as one third horsepower at 120 VAC and one horsepower at 277 VAC. It is compatible with a variety of coil voltages and includes a nonreplaceable coil rated for 240 VAC. This model does not feature a green LED indicator. The product is UL listed when used with Square D relay sockets and is CSA certified.
- Includes 3PDT contact arrangements
- Ten amperes rating at various voltages
- Fits into 851NR82 relay socket
Product Highlights
This product is designed for reliability in control and automation applications, easily integrated into existing setups.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
Catalog Number: 8501KUR13V24
-
Type: 3PDT
-
Mounting Type: Socket
-
Operating Temperature: -40 to 131 degrees Fahrenheit
-
Certifications: UL Listed, CSA Certified
-
Coil Voltage: 240 VAC
-
Dimensions: Depth 1.4 inches, Width 1.37 inches, Height 2.25 inches
-
Country of Origin: China
