Square D 8501KUDR13V53 Plug In Relay, Ty, 24 VDC Coil, 3PDT, 8501NR82

Product Description

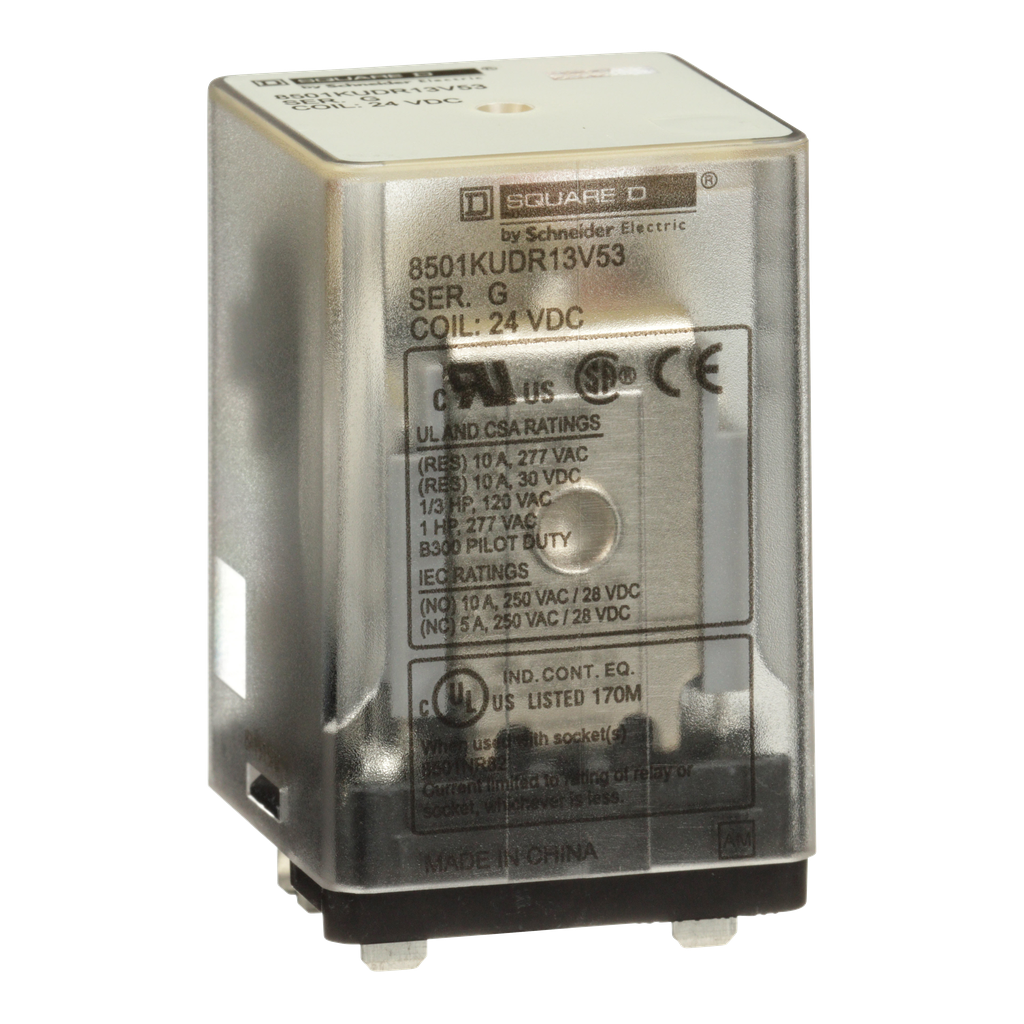

The Square D 8501KUDR13V53 is a plug-in relay designed for multipole switching applications at three hundred VAC or lower. This relay connects to a relay socket, making installation and replacement straightforward. It fits into the 851NR82 relay socket. The relay features a three pole double throw (3PDT) contact configuration, consisting of three normally open and three normally closed contacts. Key ratings include ten amperes at 277 VAC and ten amperes at 28 VDC, along with a one third horsepower rating at 120 VAC and a one horsepower rating at 277 VAC. The relay supports a variety of coil voltages and operates with a nonreplaceable 24 VDC coil. It is important to note that a green LED indicator is not included with this model.

• Designed for 300 VAC or lower applications
• UL listed and CSA certified
• Easy replacement via relay socket

Product Highlights

This relay is recognized for its versatility and reliability in general-purpose applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8501KUDR13V53
• Coil Voltage: 24 VDC
• Contact Arrangement: 3PDT
• Contact Ratings: 10 A at 277 VAC
• Operating Temperature: -40 to 131 degrees F
• Country of Origin: China
• Mounting Type: Socket
• Certifications: CE, CSA, UL Listed
