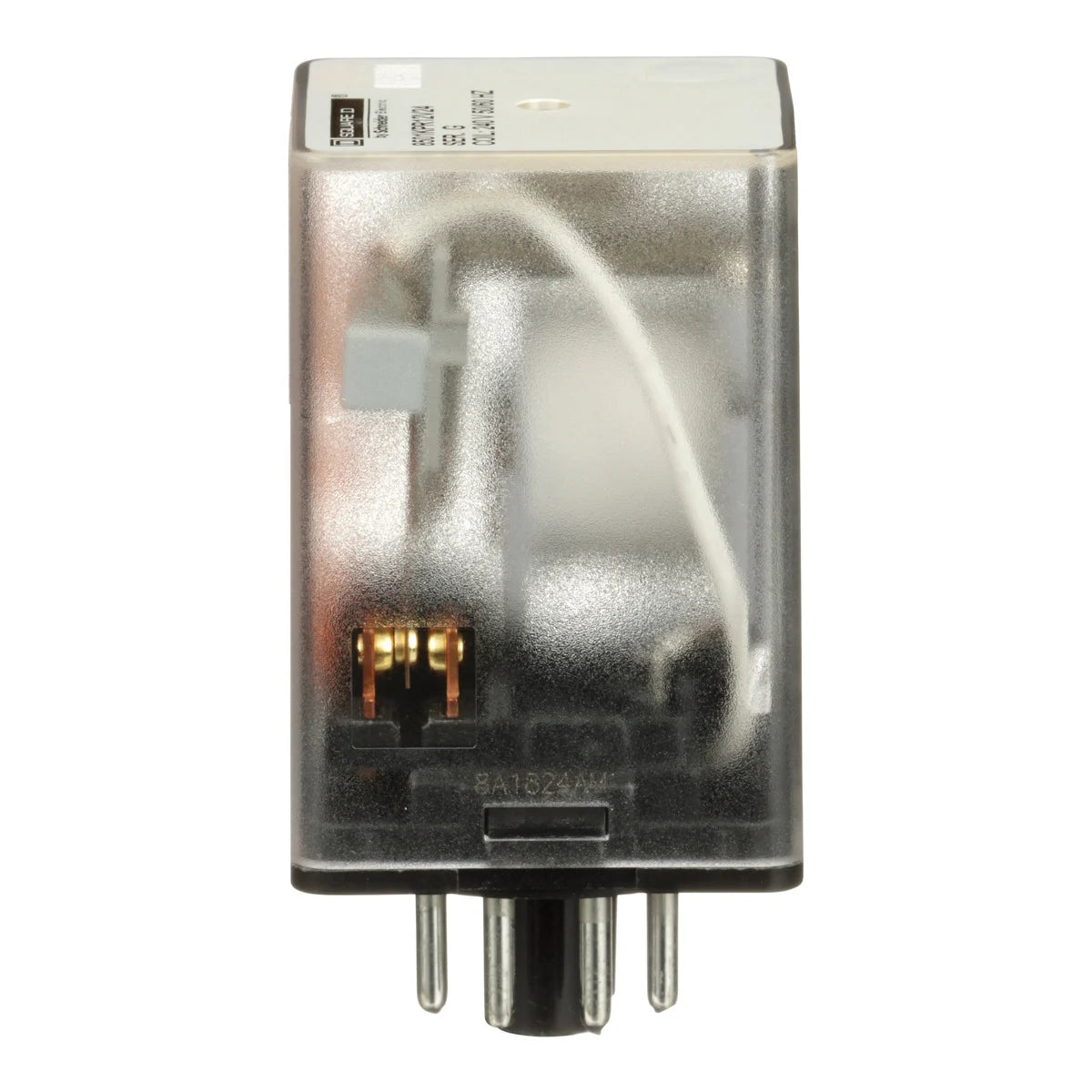

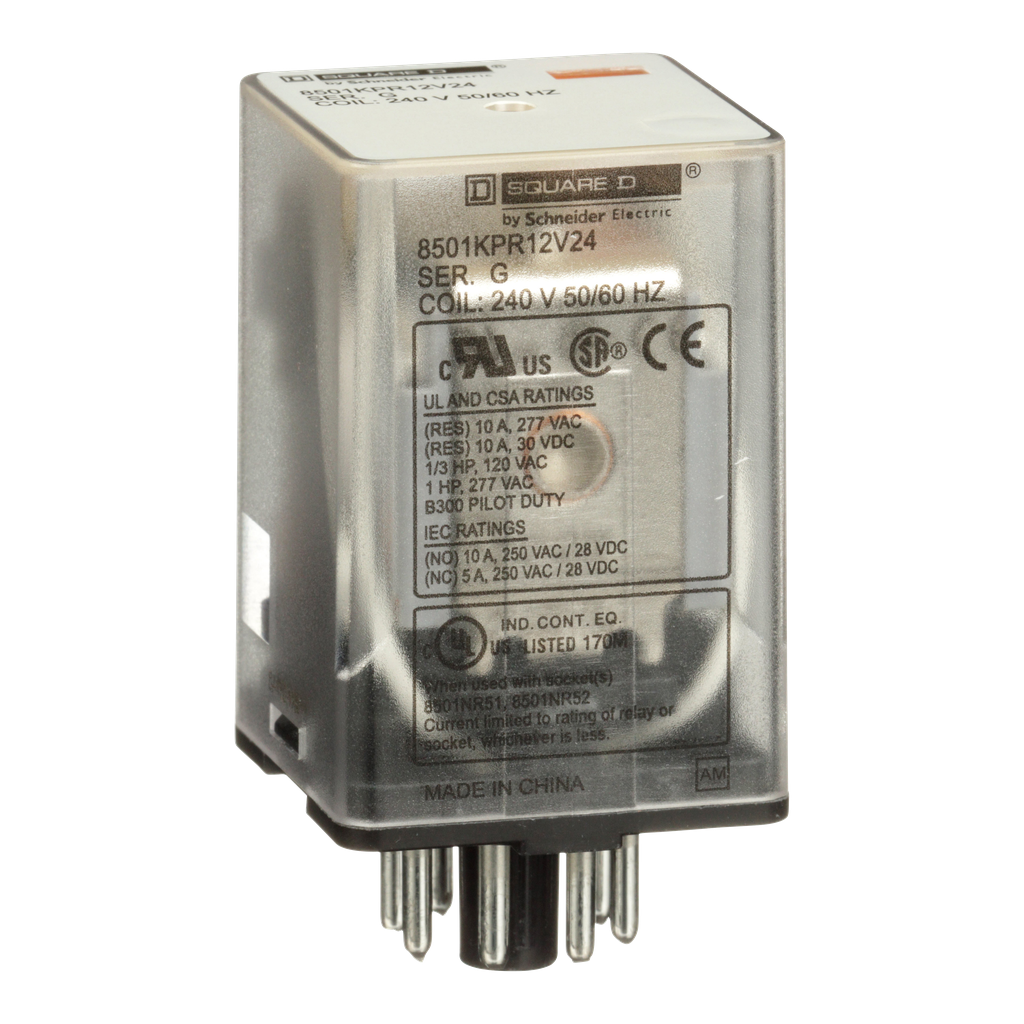

Square D 8501KPR12V24 240 VAC 10 Amp DPDT 2CO AC Operated Plug-In Relay

Product Description

The Square D 8501KPR12V24 is a plug-in relay designed for multipole switching applications up to 300 VAC. This relay easily connects into relay sockets for straightforward replacement. It utilizes DPDT contact arrangements, featuring two normally open and two normally closed contacts. Its contact ratings include ten amperes at 277 VAC, ten amperes at 28 VDC, one-third HP at 120 VAC, one HP at 277 VAC, and a B300 inductive rating. Users can select from a range of coil voltages, with this model operating on 240 VAC. Note that a green LED indicator is not included in this relay. The product complies with UL standards when used with Square D relay sockets and is also recognized by CSA.

• Rated for ten amps at 277 VAC and 28 VDC
• Fits into 851NR51 and 8501NR52 relay sockets
• UL listed and CSA certified for reliability

Product Highlights

Easy installation and replacement make this relay suitable for various control applications in electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501KPR12V24
• Contact Configuration: DPDT
• Coil Voltage: 240 VAC
• Height: 2.66 inches
• Width: 1.4 inches
• Depth: 1.4 inches
• Operating Temperature: -40 to 131 degrees Fahrenheit
• Country of Origin: China
