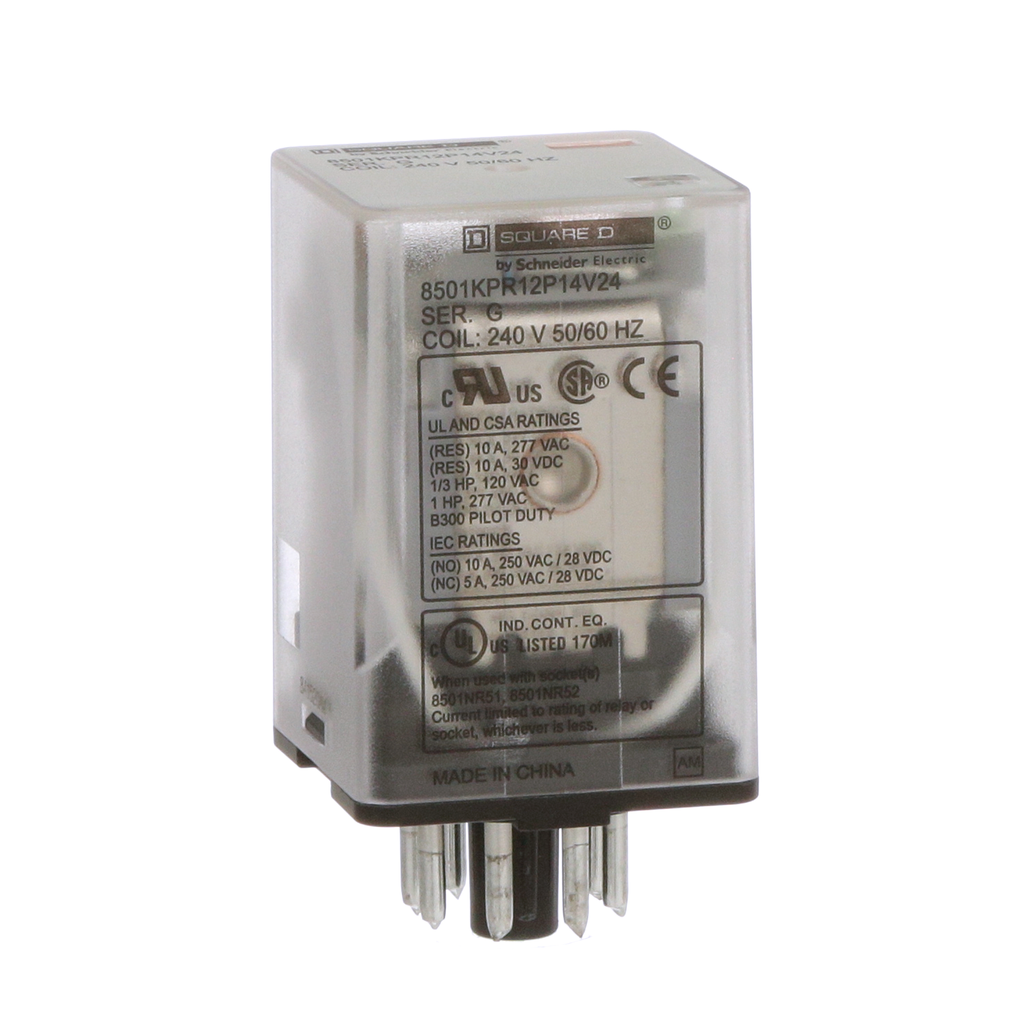

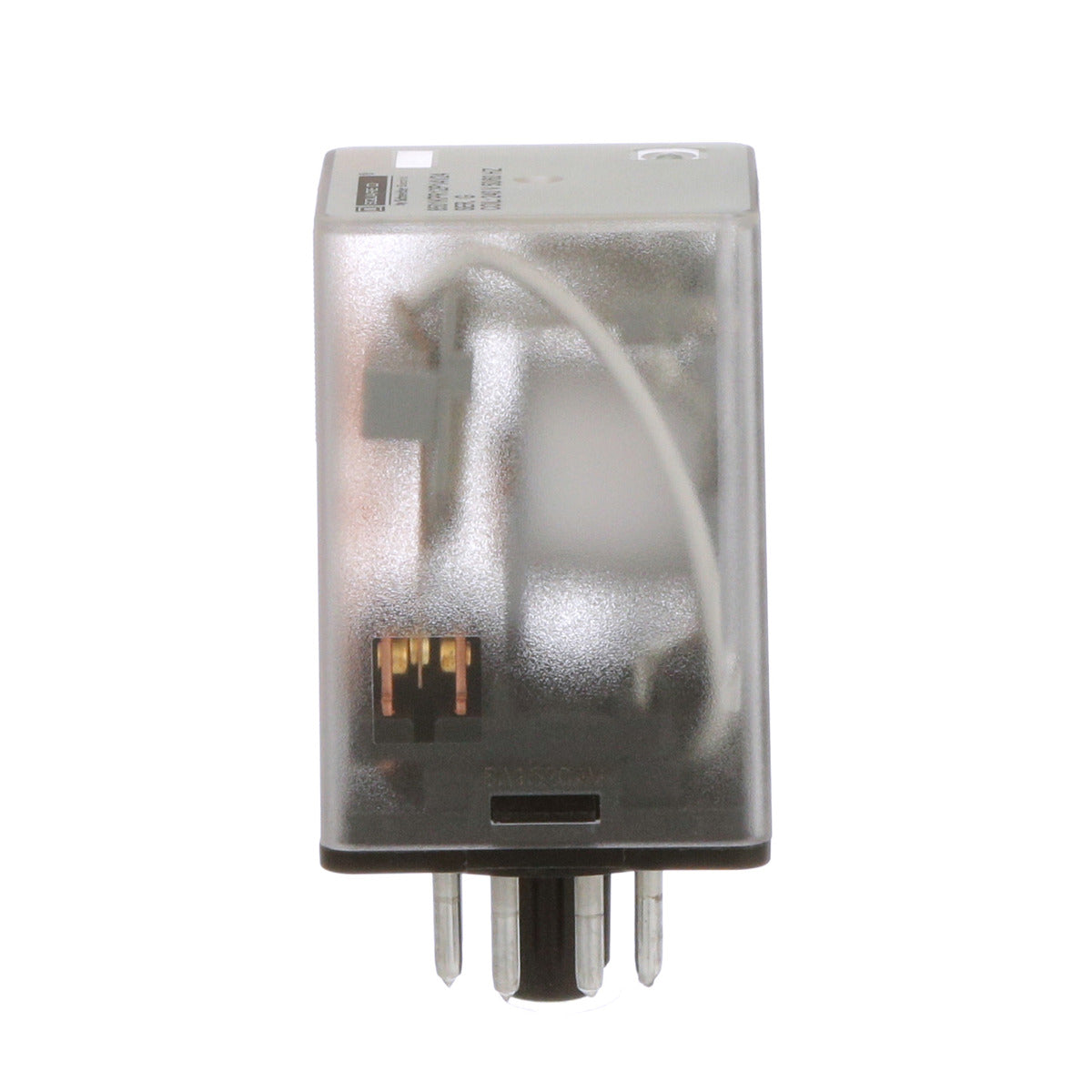

Square D 8501KPR12P14V24 240 Vac Coil Pilot Light 8 Pin 2-Pole General Purpose Plug-in Relay

Product Description

The Square D 8501KPR12P14V24 is a reliable plug-in relay designed for switching applications at 300 VAC or lower. This relay easily integrates into an 851NR51 or 8501NR52 relay socket for quick replacements. It features dual contact arrangements with two normally open and two normally closed contacts, making it ideal for various control tasks.

• Compatible with 851NR51 and 8501NR52 relay sockets.
• Double-pole double-throw (DPDT) contact configuration.
• UL listed and CSA certified for safety and performance.

Product Highlights

This relay includes a 240 VAC nonreplaceable coil and a green LED indicator for quick status checks. It is suited for multiple applications, including resistive and inductive loads.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8501KPR12P14V24
• Contact Configuration: DPDT
• Contact Rating: 10 A at 277 VAC, 10 A at 28 VDC
• HP Rating: 1/3 HP at 120 VAC, 1 HP at 277 VAC
• Inductive Rating: B300
• Operating Temperature: -40 to 131 degrees F
• Mounting Type: Socket
• Country of Origin: China
