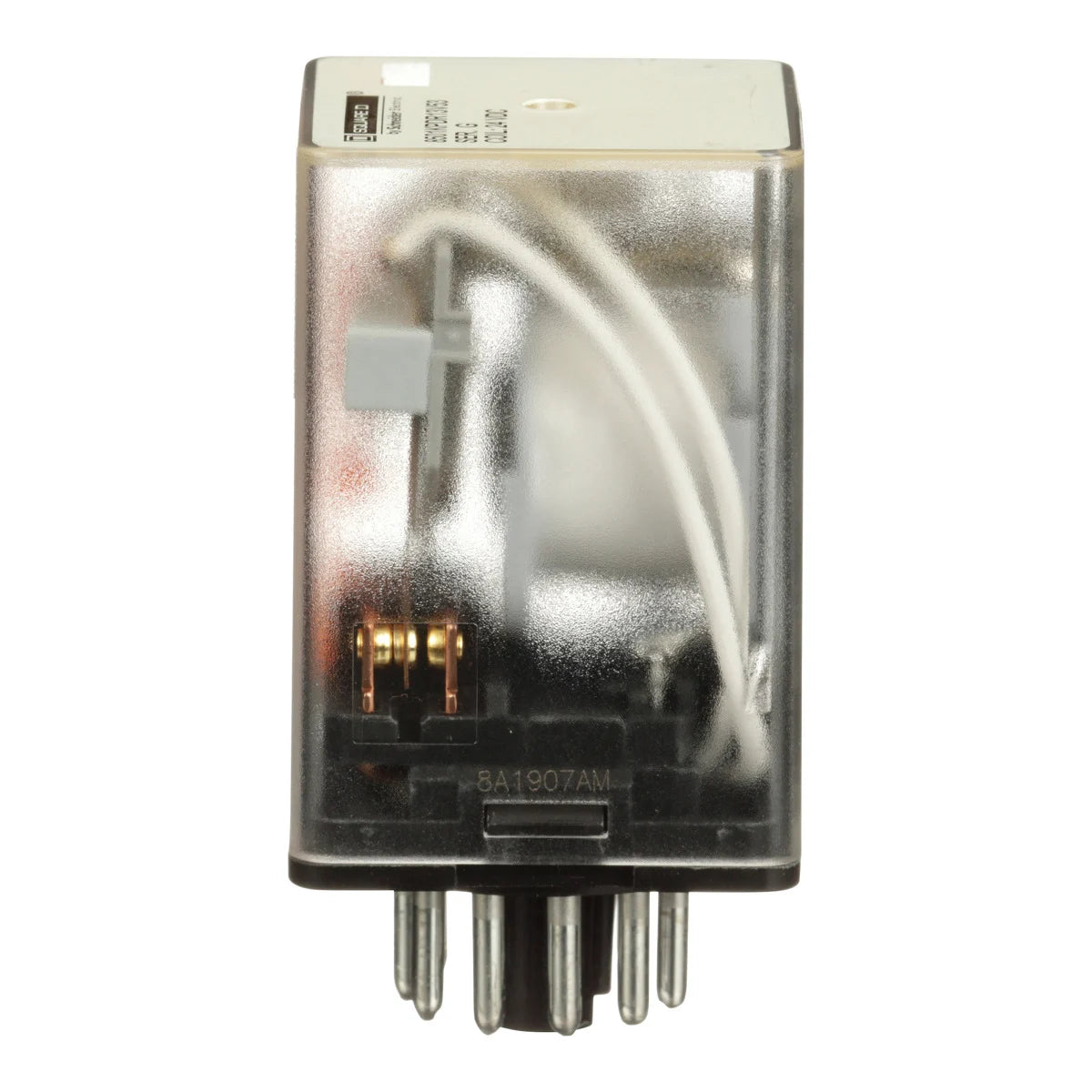

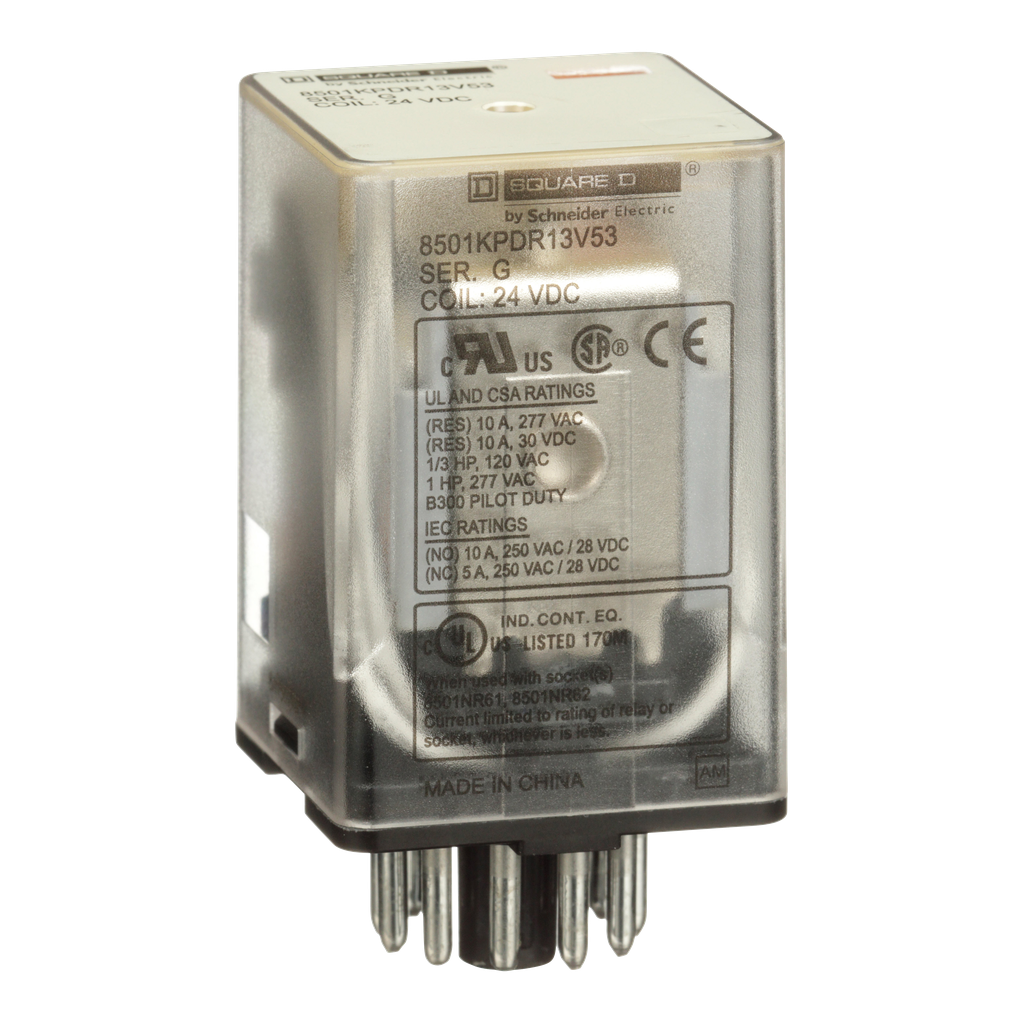

Square D 8501KPDR13V53 Plug in Relay 24 VDC 10 Amp 3PDT

Product Description

Square D 8501KPDR13V53 is a plug-in relay designed for multipole switching applications with a voltage rating of three hundred VAC or lower. It fits into relay sockets, allowing for straightforward replacement. Compatible with 851NR61 and 8501NR62 relay sockets, this relay features double pole double throw contact arrangements with two normally open and two normally closed contacts. The contacts handle up to ten amperes at two hundred seventy-seven VAC and up to ten amperes at twenty-eight VDC, making it suitable for various low-voltage needs.

• 24 VDC non-replaceable coil
• UL listed with Square D relay sockets
• CSA certified

Product Highlights

This relay is suitable for industrial control applications and is equipped with reliable switching capabilities.

Product Information

Standard Information

• Catalog Number: 8501KPDR13V53
• Manufacturer: Schneider Electric

Technical Specifications

• Contact Material: Silver Alloy
• Contact Configuration: 3PDT
• Operating Temperature: -40 to 131 Degrees F
• Mounting Type: Socket
• Country of Origin: China
• Certifications: CE, CSA, UL Listed
• UPC: 785901278214
