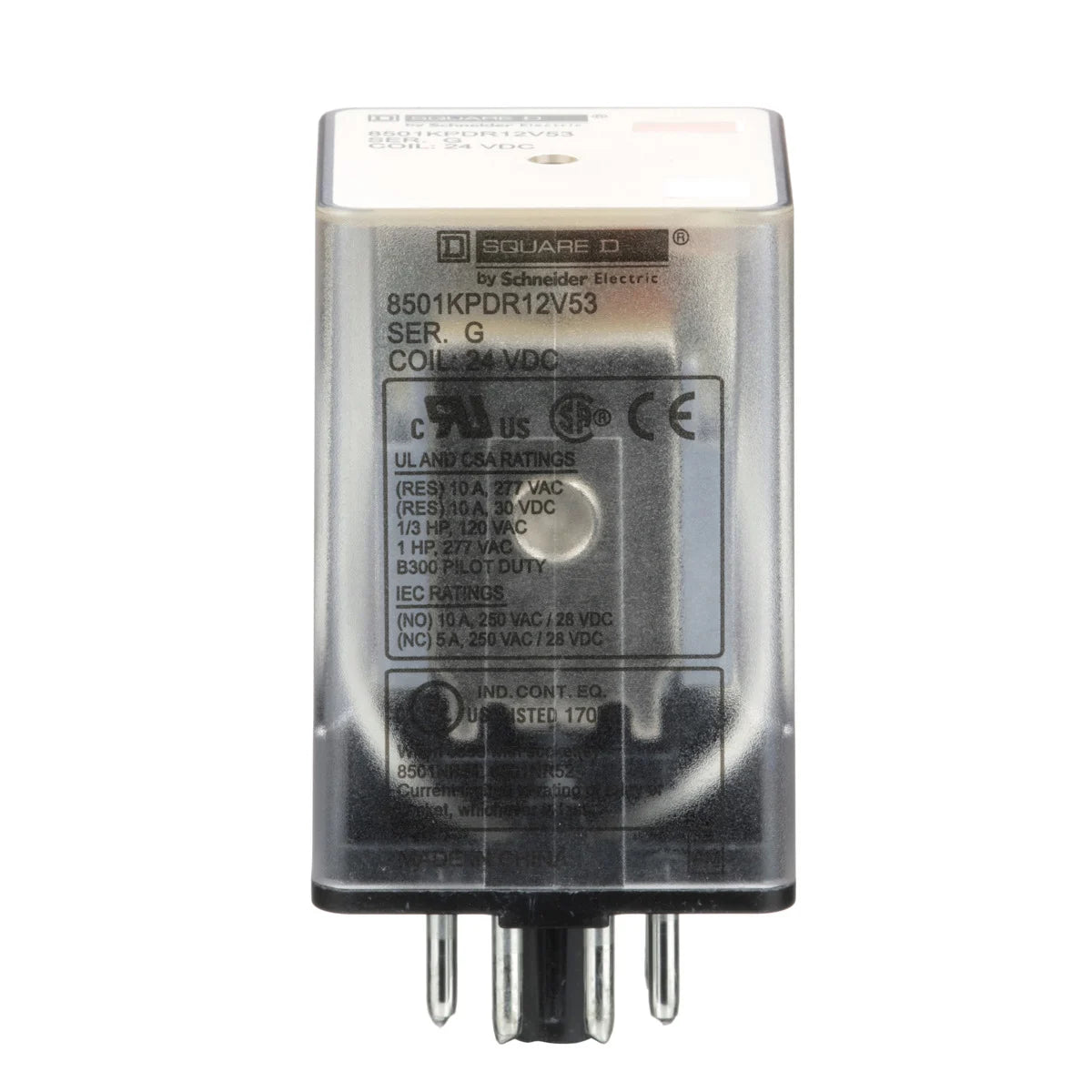

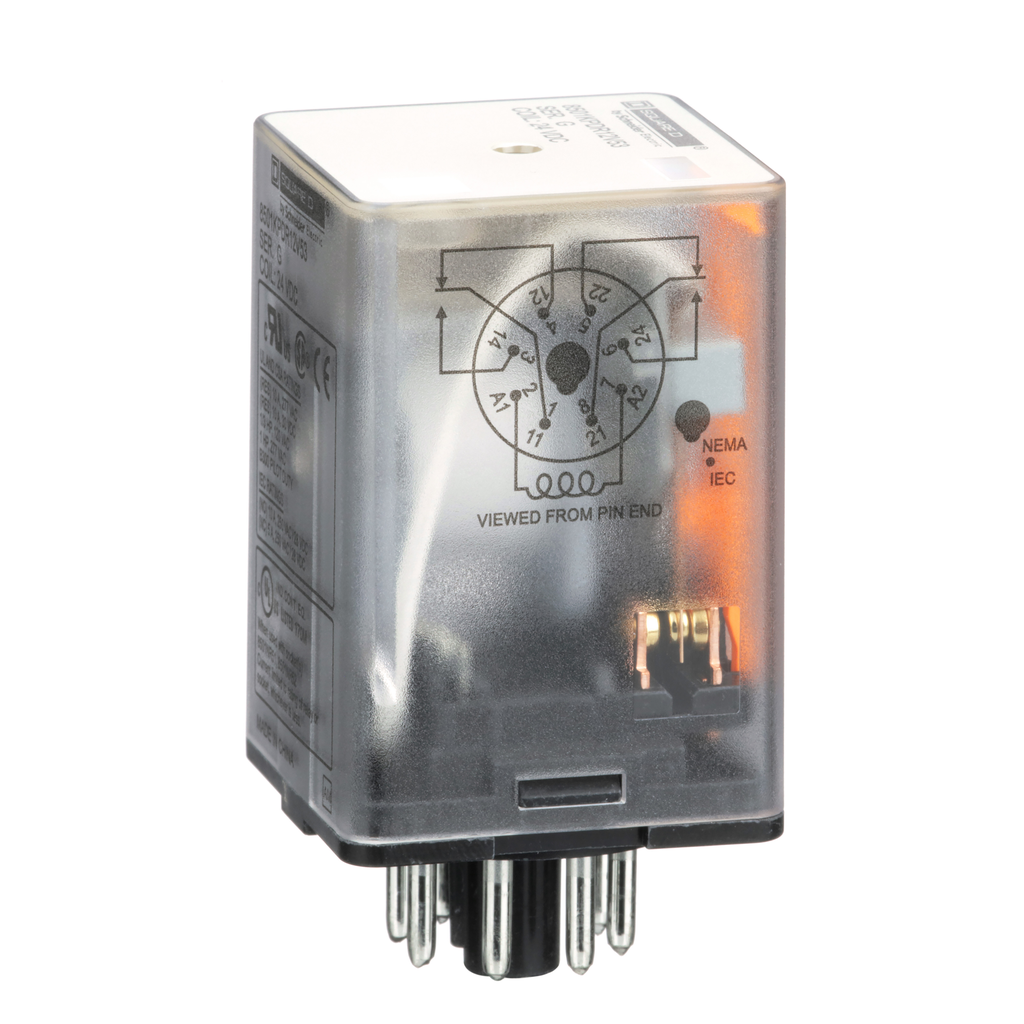

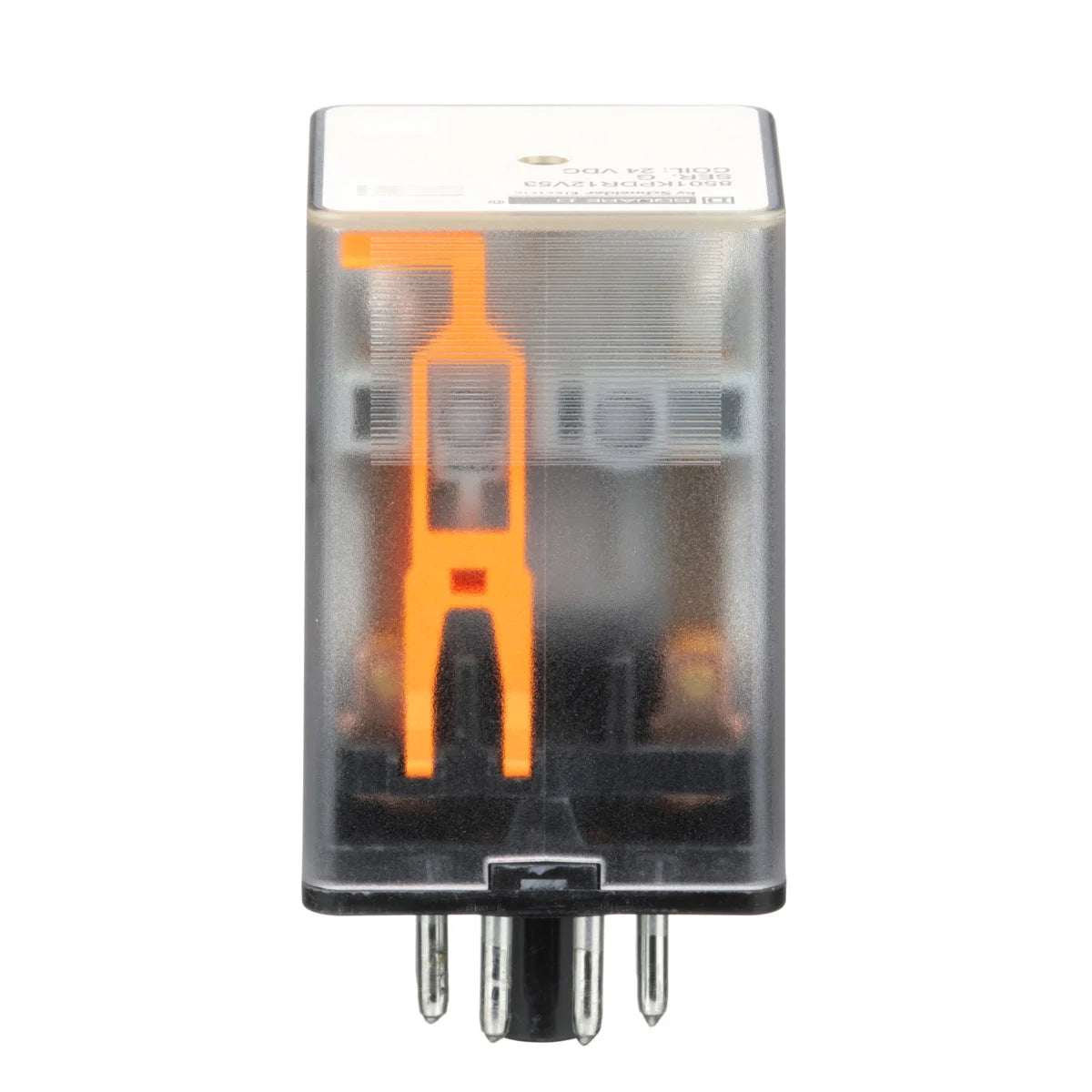

Square D 8501KPDR12V53 24 VDC 10 Amp DPDT 2CO DC Operated Plug-In Relay

Product Description

The Square D 8501KPDR12V53 is a 24 VDC plug-in relay designed for multipole switching applications at a maximum voltage of 300 VAC. This universal relay easily plugs into relay sockets, specifically the 851NR51 or 8501NR52. It features DPDT contact arrangements with two normally open and two normally closed contacts. This configuration supports a 10 ampere rating at 277 VAC and 28 VDC, along with a 1 HP rating at 277 VAC. Its compact design makes for straightforward replacement without complex installations.

• Plug-in design for easy replacement
• 10 ampere contact rating
• UL listed and CSA certified

Product Highlights

The 8501KP relay is ideal for various industrial applications. Its ability to handle multiple voltages makes it suitable for automation tasks where reliability is crucial.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8501KPDR12V53
• Type: DPDT Relay
• Coil Voltage: 24 VDC
• Width: 1.4 inches
• Height: 2.66 inches
• Depth: 1.4 inches
• Certifications: CE, CSA, UL Listed
• Operating Temperature: -40 to 131 degrees Fahrenheit
