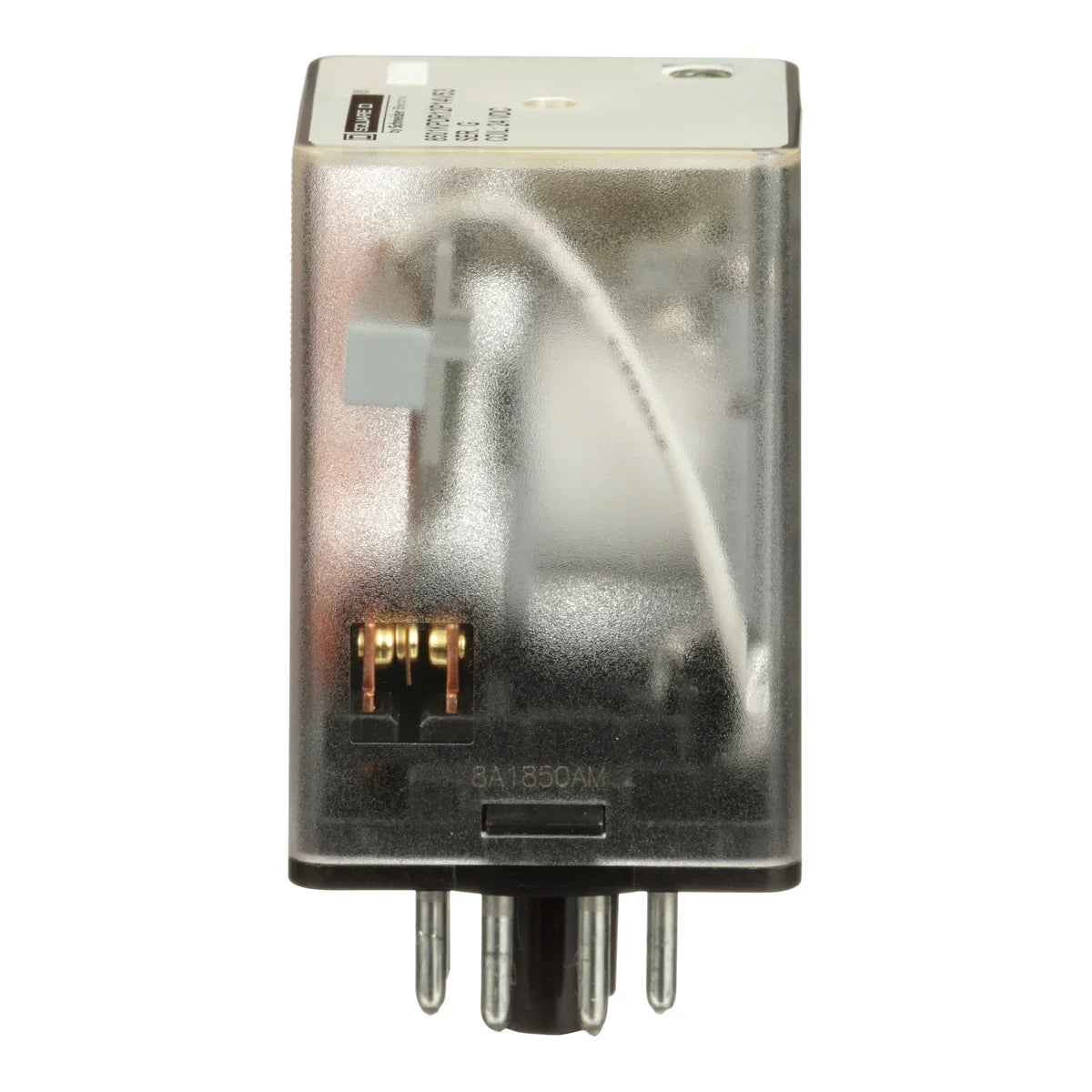

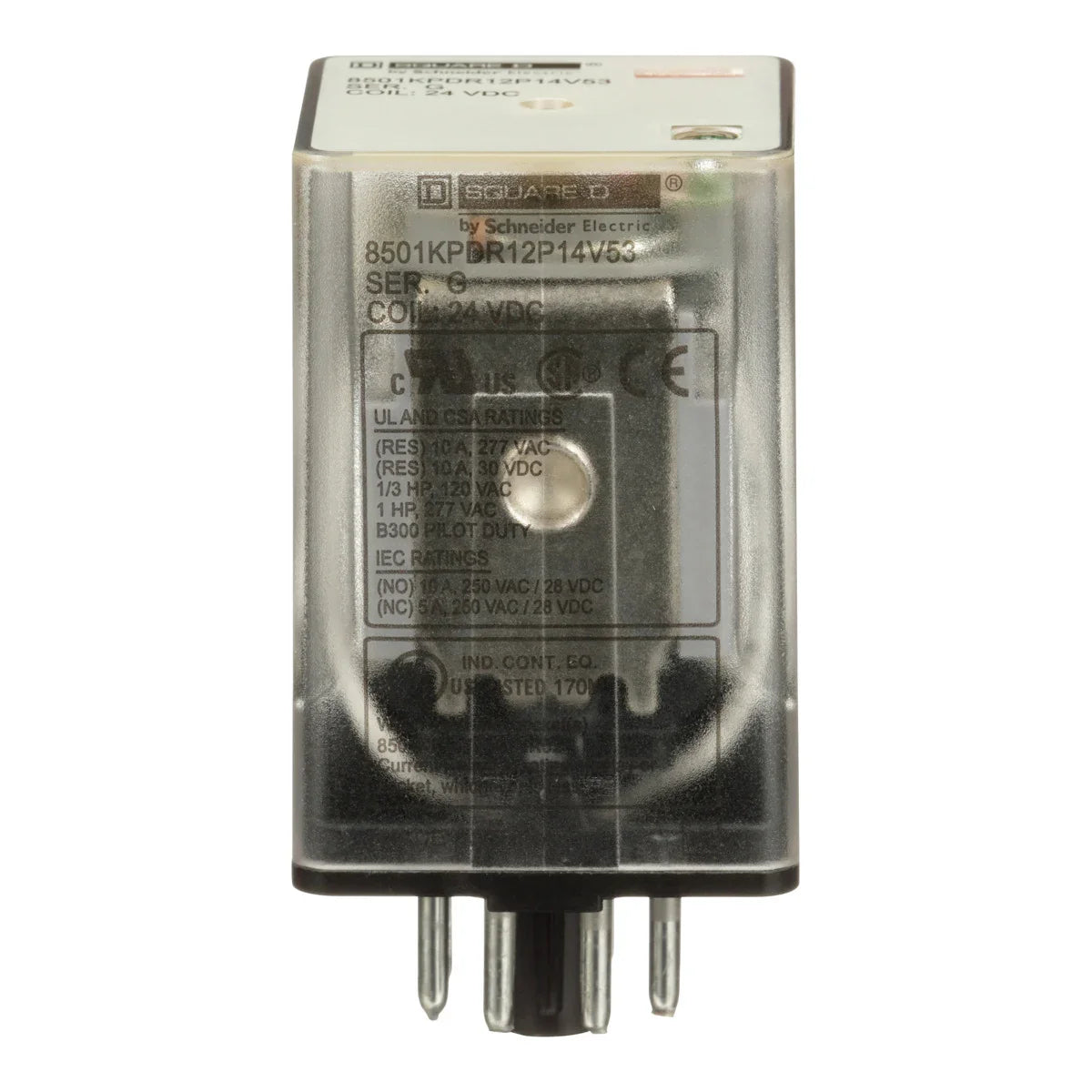

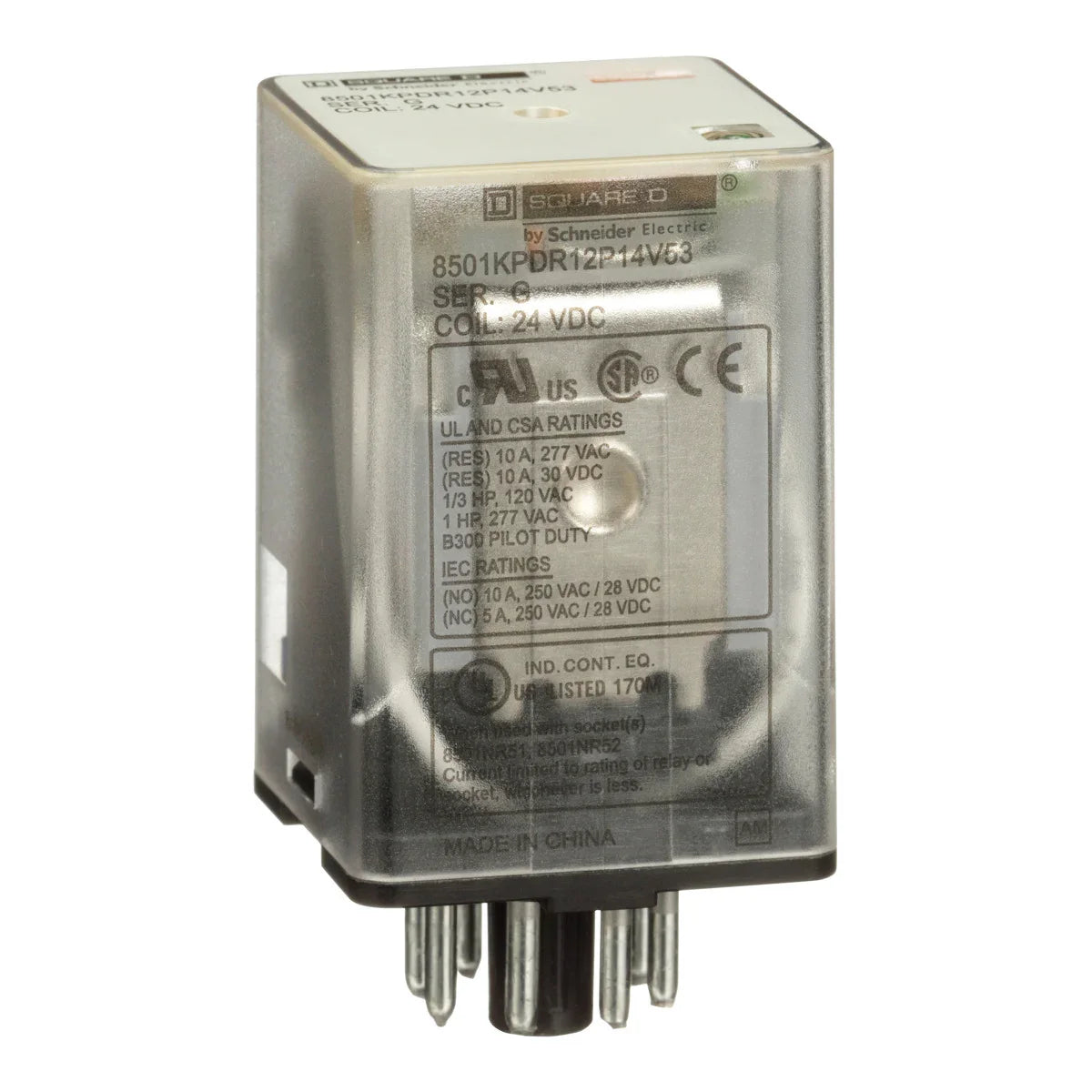

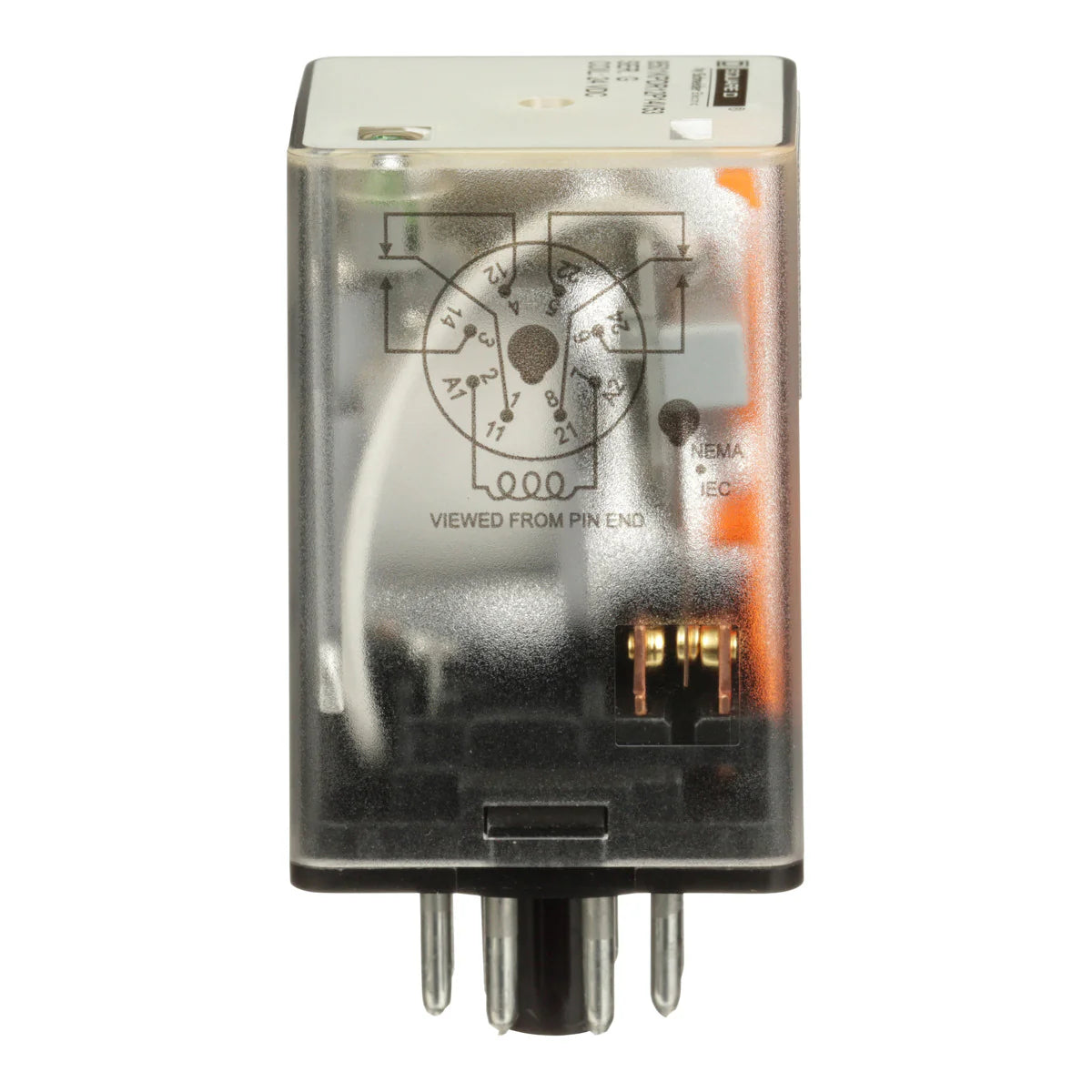

Square D 8501KPDR12P14V53 24 VDC 10 Amp DPDT Plug-In Relay with LED

Product Description

The Square D 8501KPDR12P14V53 is a 24 VDC 10 Amp DPDT plug-in relay designed for various multipole switching applications at three hundred VAC or lower. This relay easily plugs into a compatible socket, making replacements simple. The relay features dual normally open and dual normally closed contacts which allow for versatile control circuits.

• 24 VDC nonreplaceable coil to ensure consistent operation.
• UL listed with Square D relay sockets for reliability.
• Indicates operation status with a built-in green LED indicator.

Product Highlights

The 8501KP plug-in relay is suitable for use in control systems where switching and remote control are essential.

Product Information

Standard Information

• Catalog Number: 8501KPDR12P14V53
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 24 VDC
• Contact Configuration: DPDT
• Current Rating: 10 Amps at 277 VAC; 10 Amps at 28 VDC
• Power Rating: 1 HP at 277 VAC; 1/3 HP at 120 VAC
• Inductive Rating: B300
• Operating Temperature: -40 to 131 Degrees F
• Mounting Type: Socket
• Country of Origin: China
• Certifications: UL Listed, CSA Certified
