Square D 8501KFR13V14 Plug In Relay 1 HP at 277 VAC 10A Resistive 24 VAC Coil

Product Description

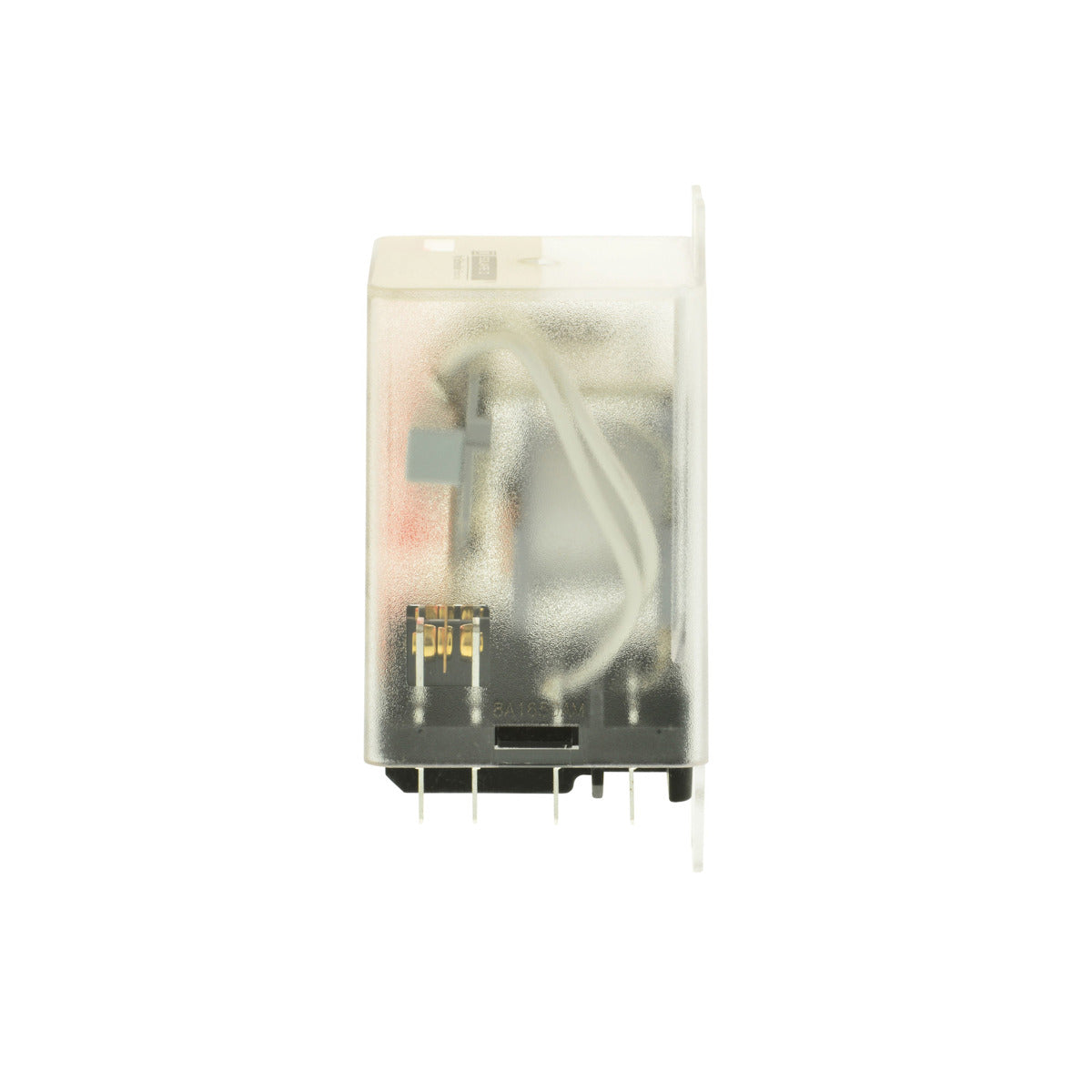

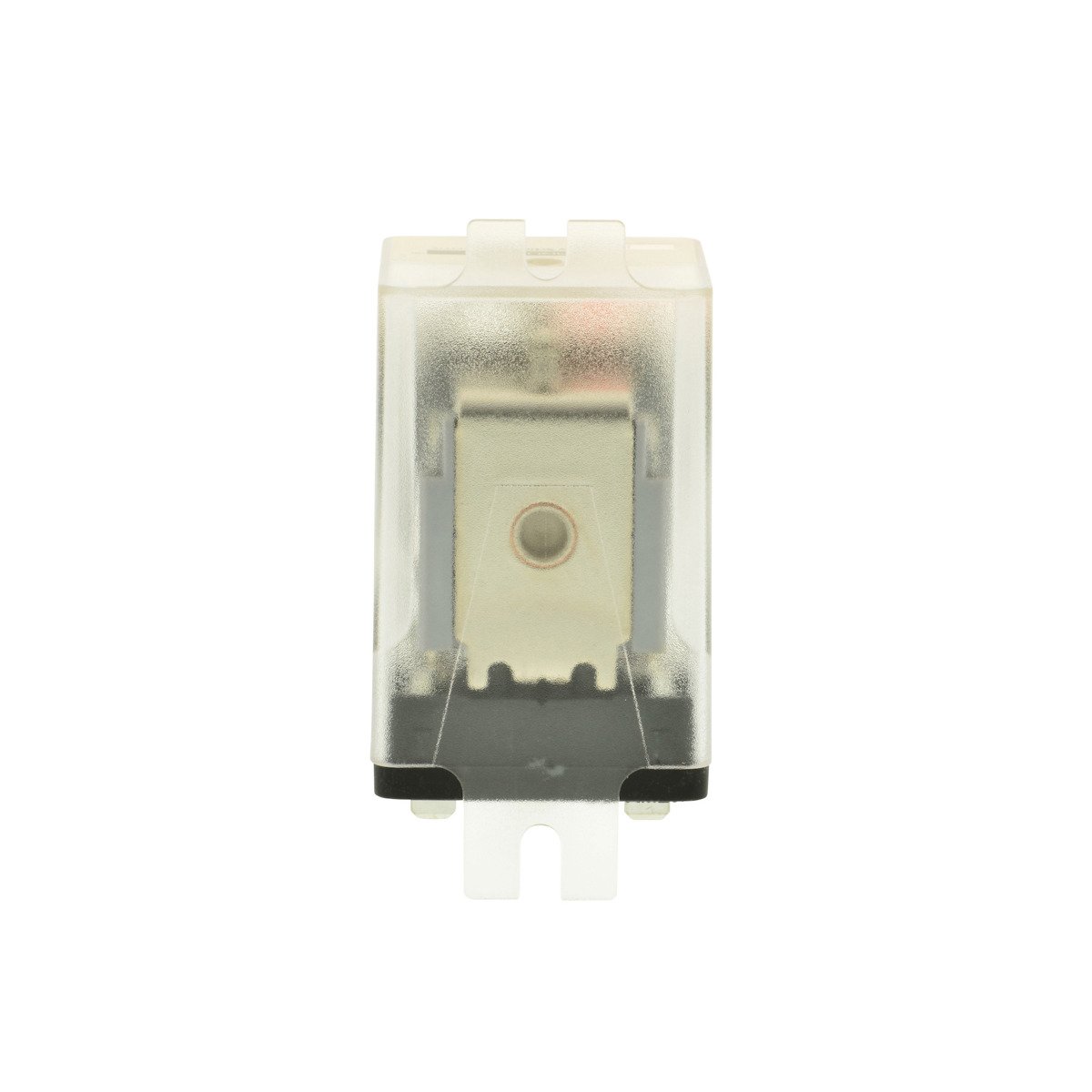

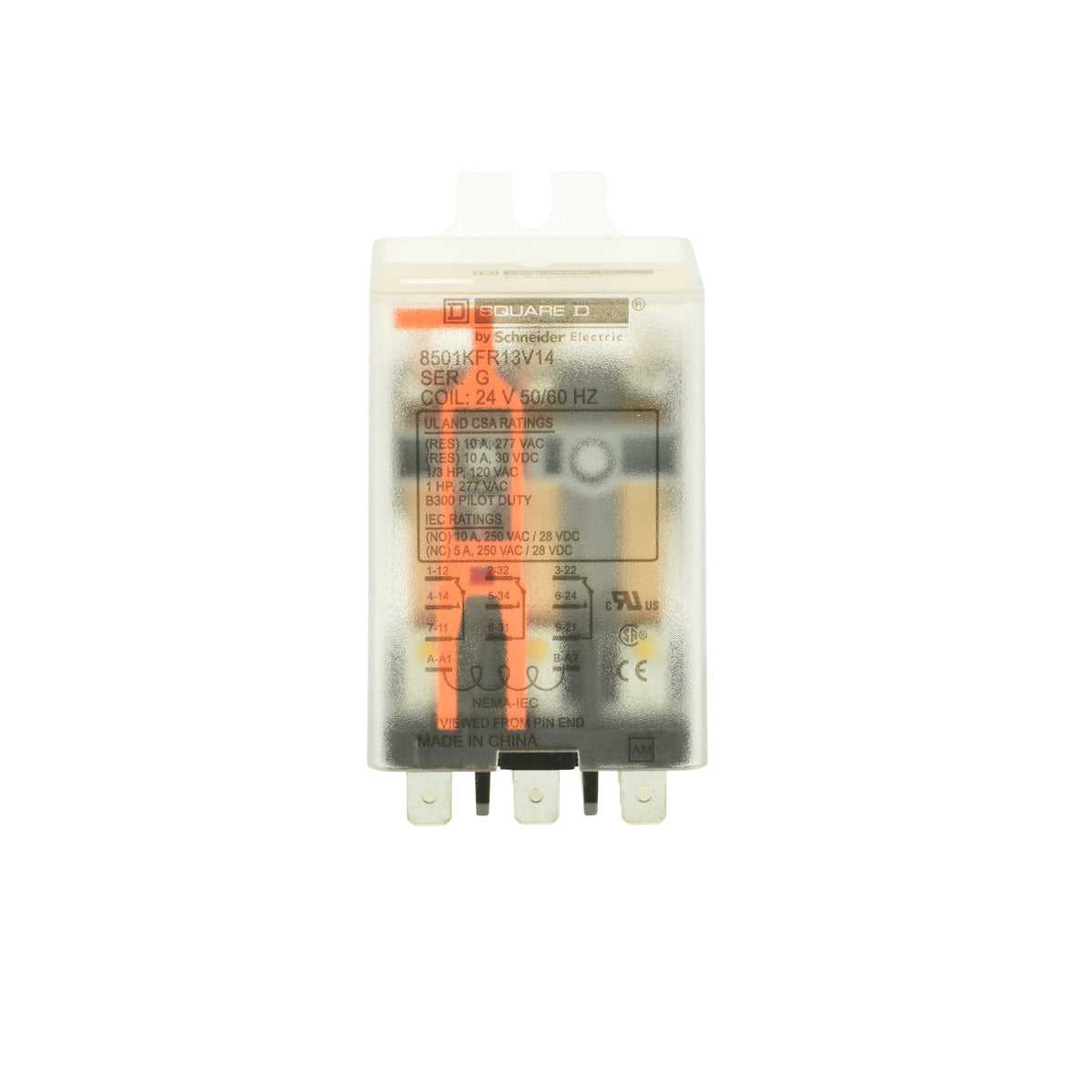

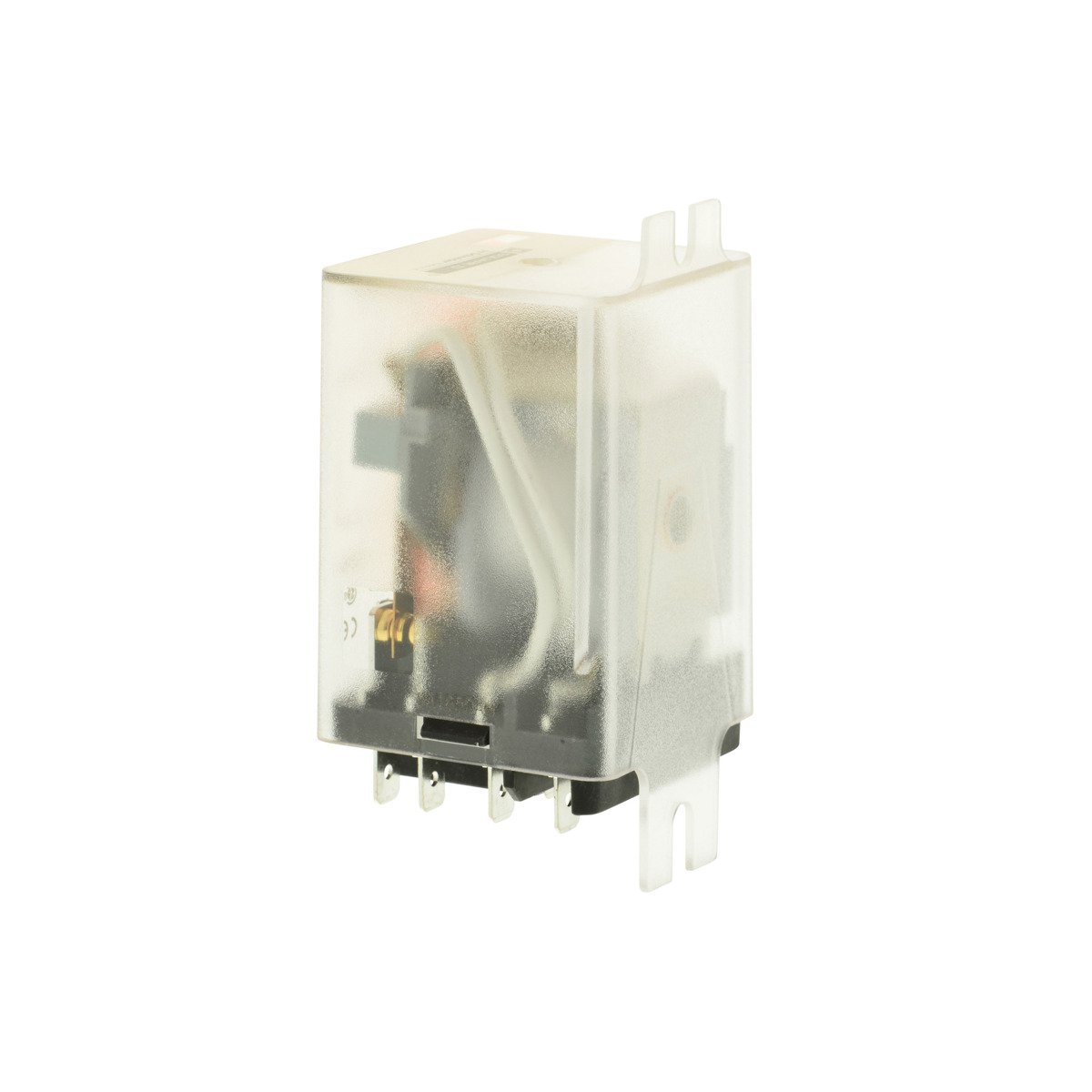

The Square D 8501KFR13V14 is a plug-in relay designed for multipole switching applications up to three hundred VAC. This flange-mounted relay features a three-pole double-throw (3PDT) configuration, with three normally open and three normally closed contacts. It is rated at ten amperes for both two hundred seventy-seven VAC and twenty-eight VDC. The relay also supports a one HP rating at two hundred seventy-seven VAC and one-third HP at one hundred twenty VAC.

• Flange mount design for easy installation
• LED indicator for status monitoring
• UL recognized and CSA certified

Product Highlights

This relay is suitable for a variety of general-purpose applications, providing reliable switching in industrial and commercial settings.

Product Information

Standard Information

• Catalog Number: 8501KFR13V14
• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Country of Origin: United States
• Made in USA: Yes
• Mounting: Flange
• Coil Voltage: 24 VAC
• Special Features: Without test button
• UPC: 785901304333
• GTIN: 00785901304333
• Item Type: General purpose; 3PDT; Relay
