Square D 8501KFR12V20 SQD 8501KFR12V20 RELAY 2CO QC PIN 1

Product Description

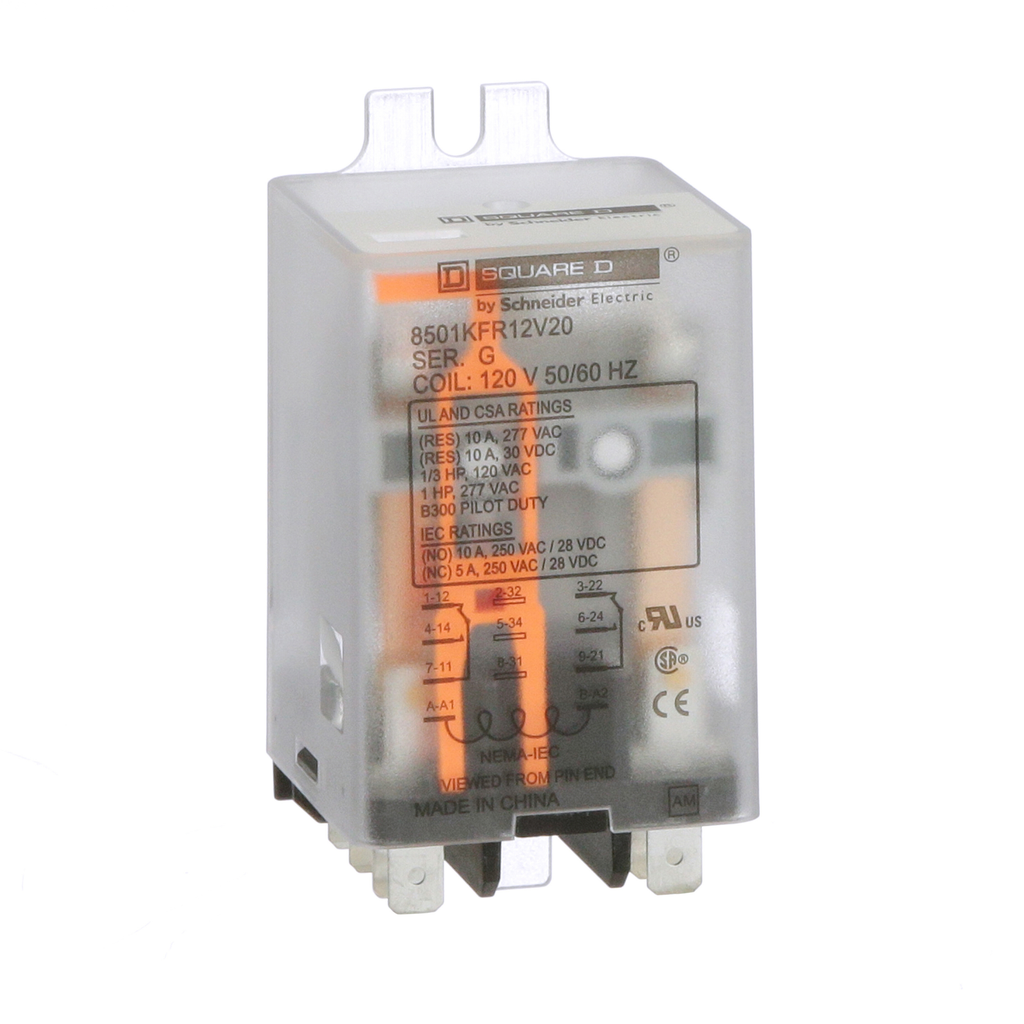

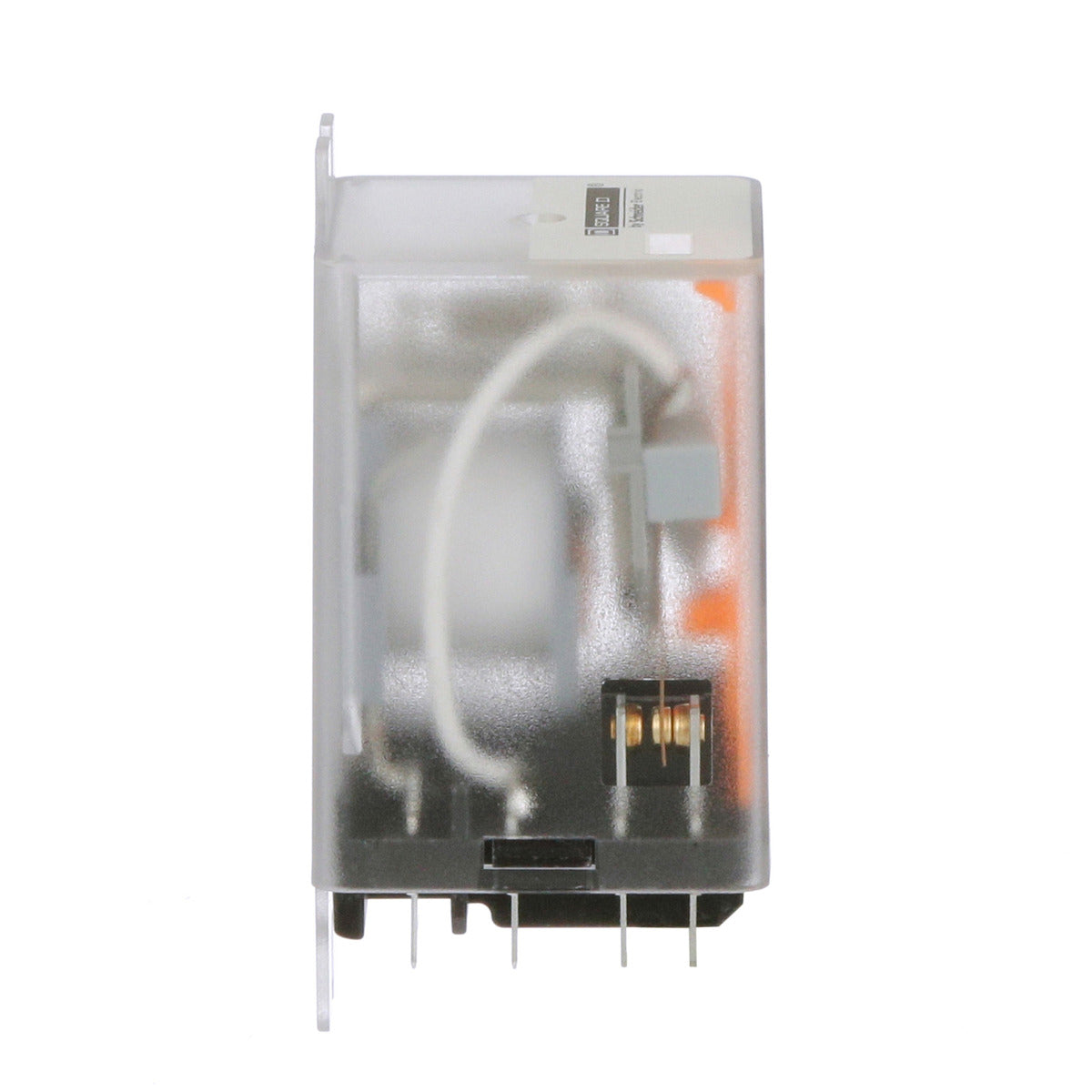

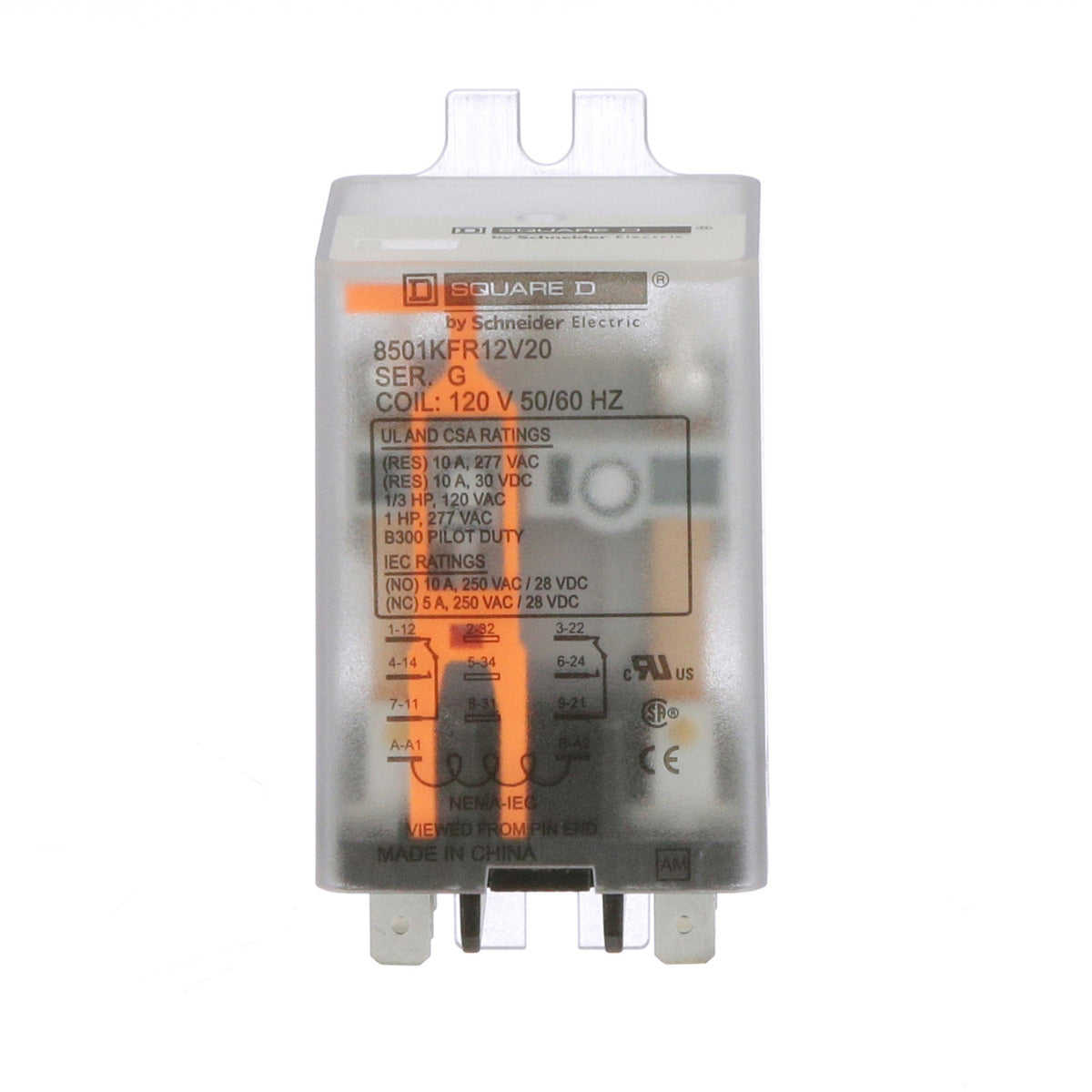

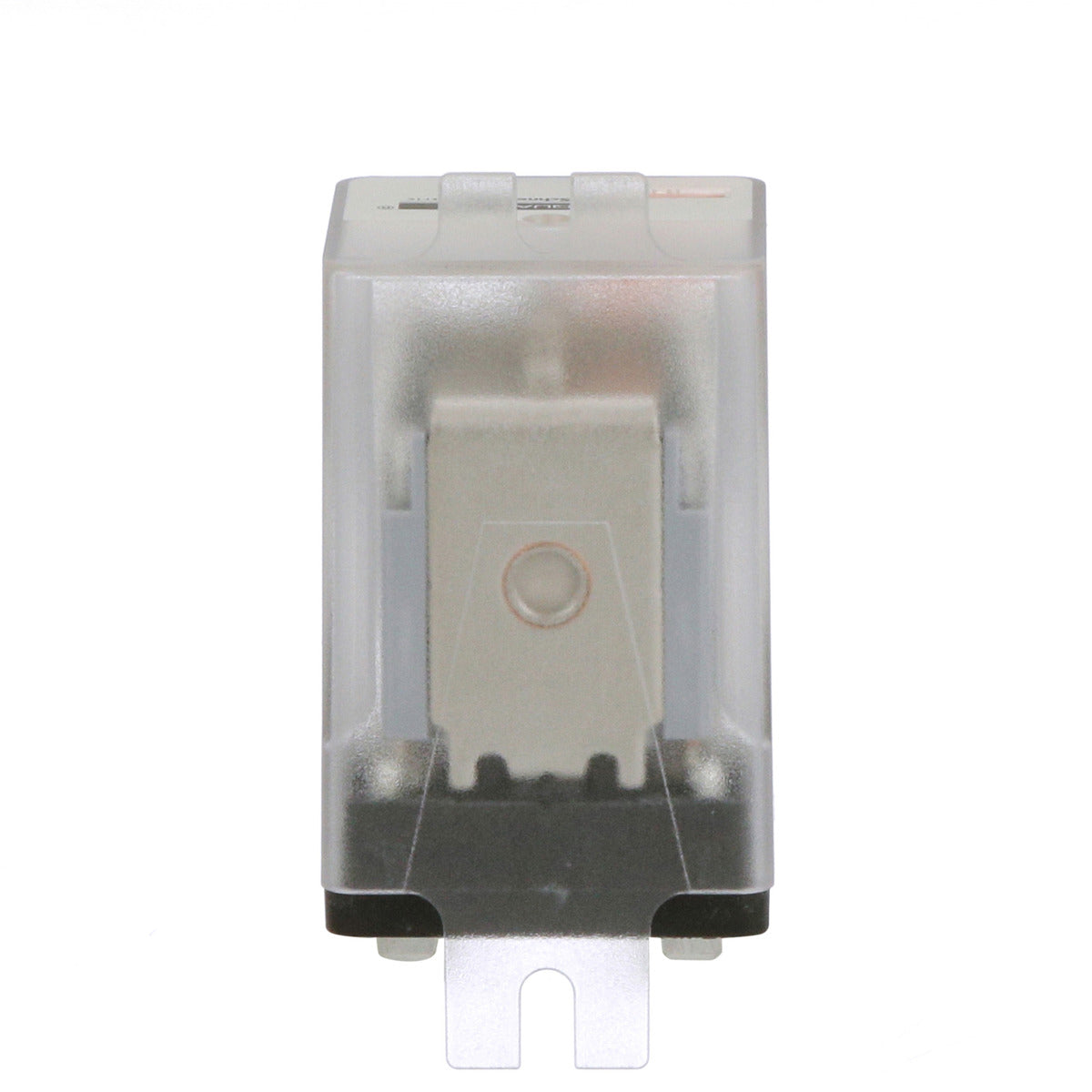

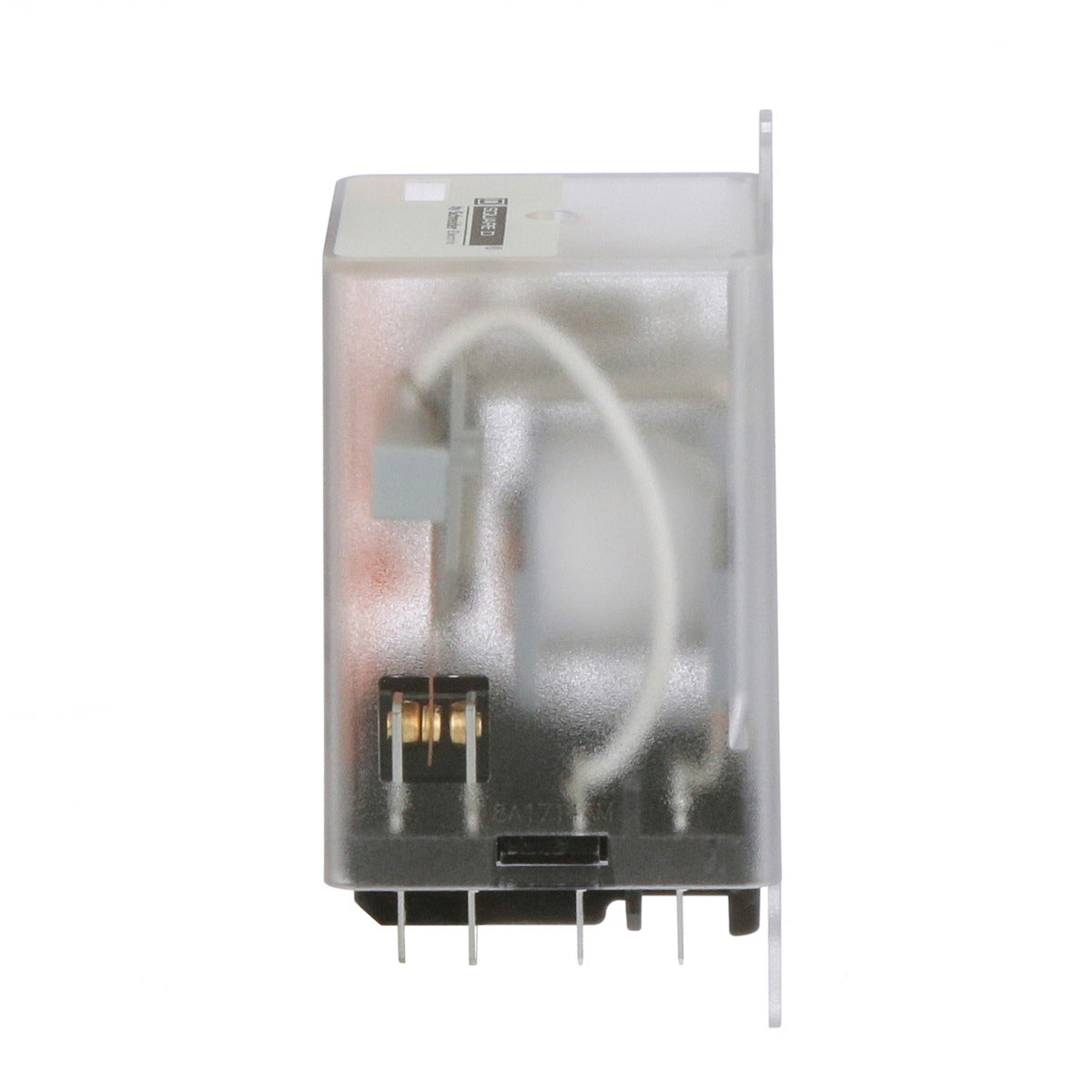

Square D 8501KFR12V20 is a universal relay designed for multipole switching applications at three hundred VAC or lower. This relay can be flange mounted into a panel and features a DPDT contact arrangement. It has two normally open and two normally closed contacts with individual ratings of ten ampere at two hundred seventy-seven VAC and twenty-eight VDC, and one-third horsepower at one hundred twenty VAC. Its specifications also include one horsepower rating at two hundred seventy-seven VAC and a B300 inductive rating. Users can choose from a wide variety of coil voltages, making it flexible for different setups. The relay includes a non-replaceable coil rated at one hundred twenty VAC and comes with a green LED indicator. The 8501KF series relays hold UL component recognition and CSA certification.

• Flange-mounted for easy installation
• Ten ampere rating for reliable switching
• UL and CSA certified for safety

Product Highlights

Ideal for control applications in automation systems, providing dependable performance and flexibility.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501KFR12V20
• Country of Origin: China
• Mounting Type: Flange
• Contact Configuration: DPDT
• Operating Temperature: -40 to 131 Degrees F
• Contact Material: Silver Alloy
• Certifications: CE, CSA, UL Recognized
• UPC: 785901342519
