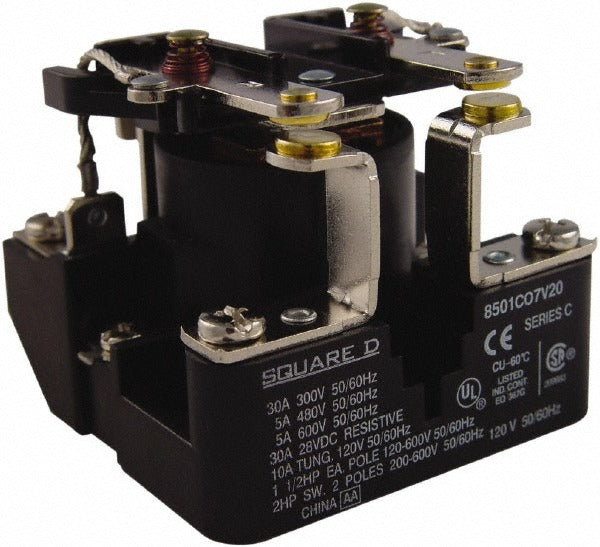

Square D 8501CO7V24 General Purpose Relay Dpst 240 Vac

Product Description

The SQUARE D 8501CO7V24 is an electromechanical general purpose relay rated for 10 VA with a DPST contact form and screw clamp terminal connections. It operates on 240 VAC at 50/60 Hz and handles load ratings up to 40 amps at 277 VAC or 5 amps at 600 V. The motor load rating is 1.5 horsepower. Built for industrial and commercial control panel applications, this relay is installed by licensed electricians and control systems technicians working in switching and load-control circuits. Its screw clamp terminations provide a secure, vibration-resistant connection suitable for demanding environments.

The 8501CO7V24 is suited for general purpose switching applications in commercial and industrial electrical systems. Typical installations include control panels, machine wiring, and building automation circuits where a reliable DPST electromechanical relay is required. The dual pole single throw configuration allows simultaneous switching of two circuits with one coil actuation, making it a straightforward fit for a range of load-control scenarios across 50 Hz and 60 Hz power systems.

Key Features

• DPST contact form for simultaneous two-circuit switching
• 10 VA coil power rating with 240 VAC coil voltage at 50/60 Hz
• Load rating of 40 amps at 277 VAC and 5 amps at 600 V
• 1.5 horsepower motor load rating
• Screw clamp terminals for secure, vibration-resistant wiring connections
• RoHS compliant; UL Listed (File E78351); CSA certified (File 218139 Class 3211 04); meets IEC 60947-4-1

Compatibility

Designed as an OEM-style replacement general purpose relay for commercial and industrial control panel applications requiring a DPST electromechanical relay with screw clamp terminations at 240 VAC coil voltage.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing the relay. Confirm coil voltage and contact ratings match the circuit requirements before powering up. Screw clamp terminals should be tightened to a secure connection without over-torquing the terminal screws.
