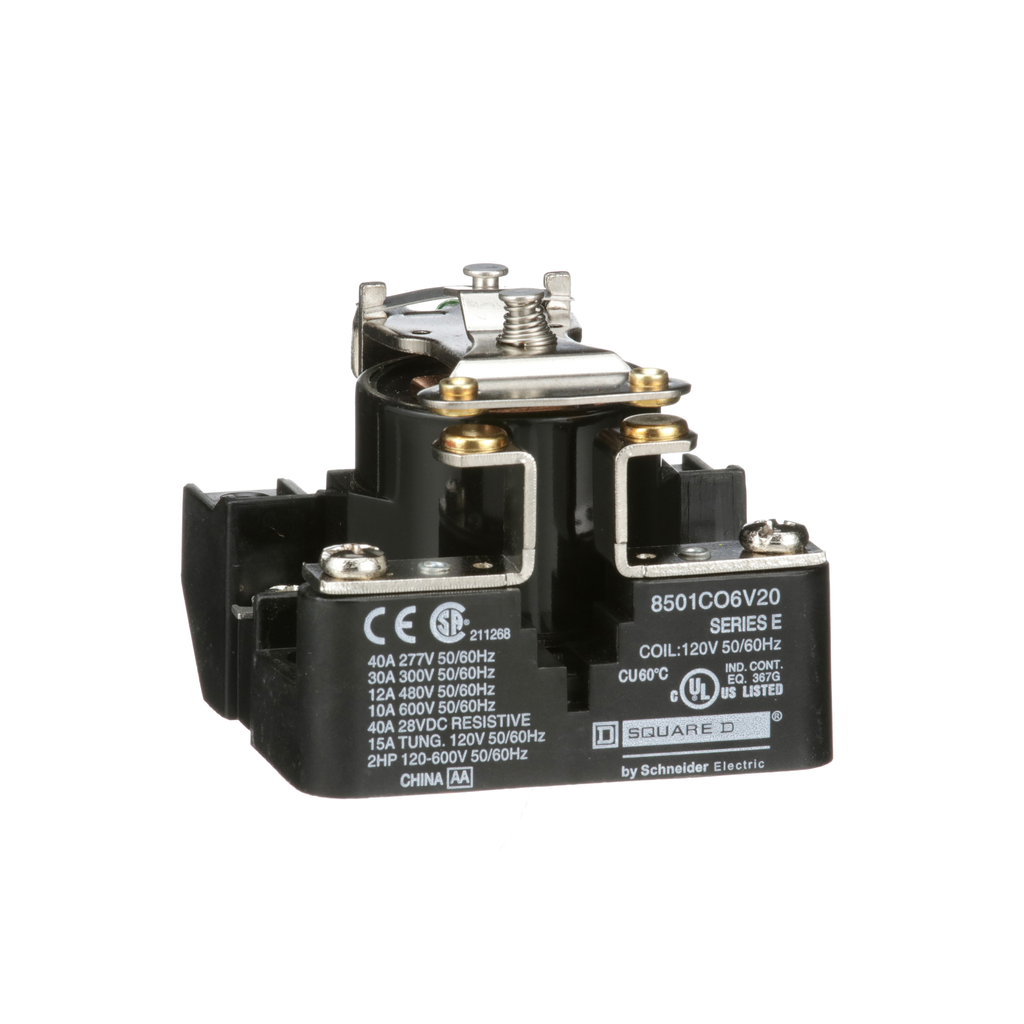

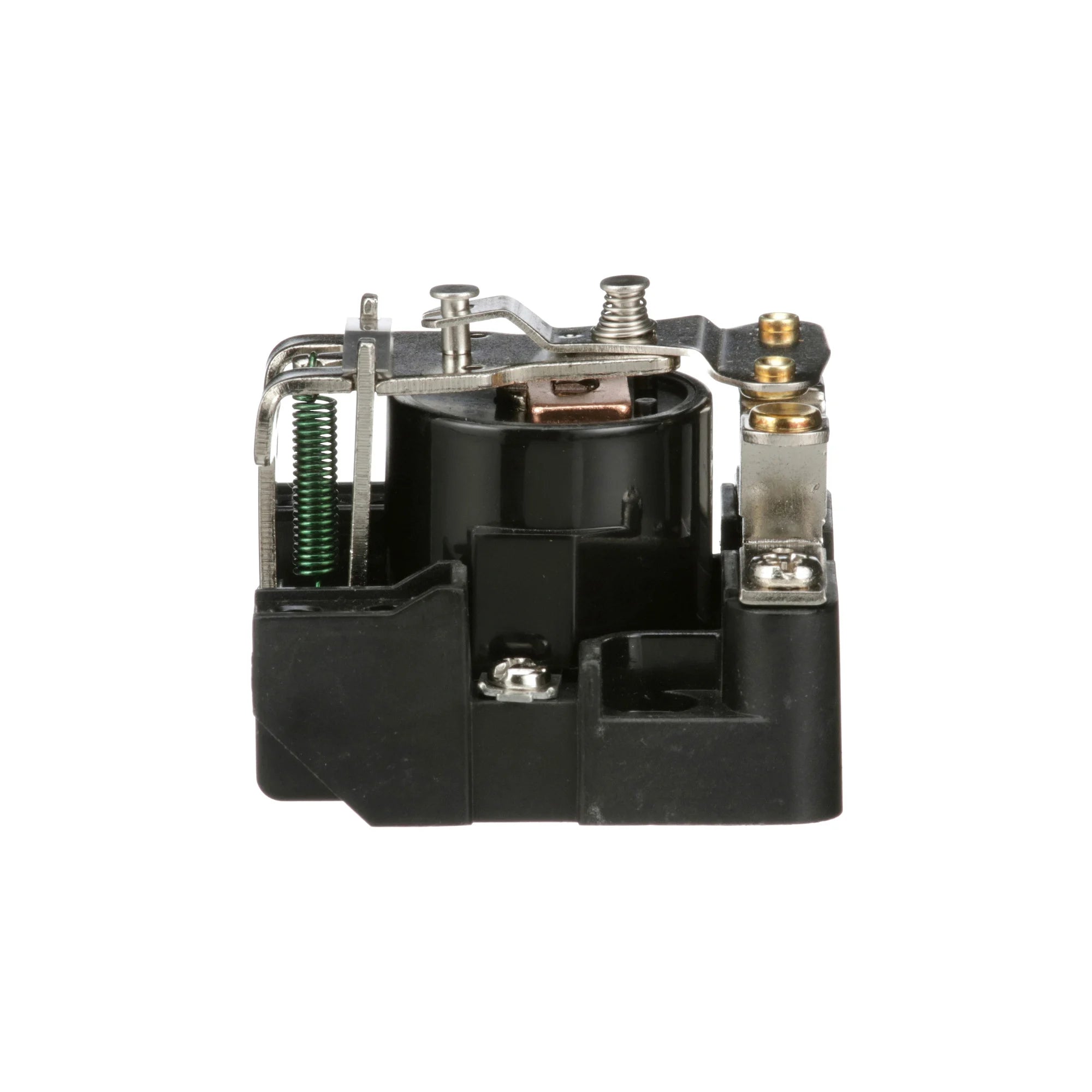

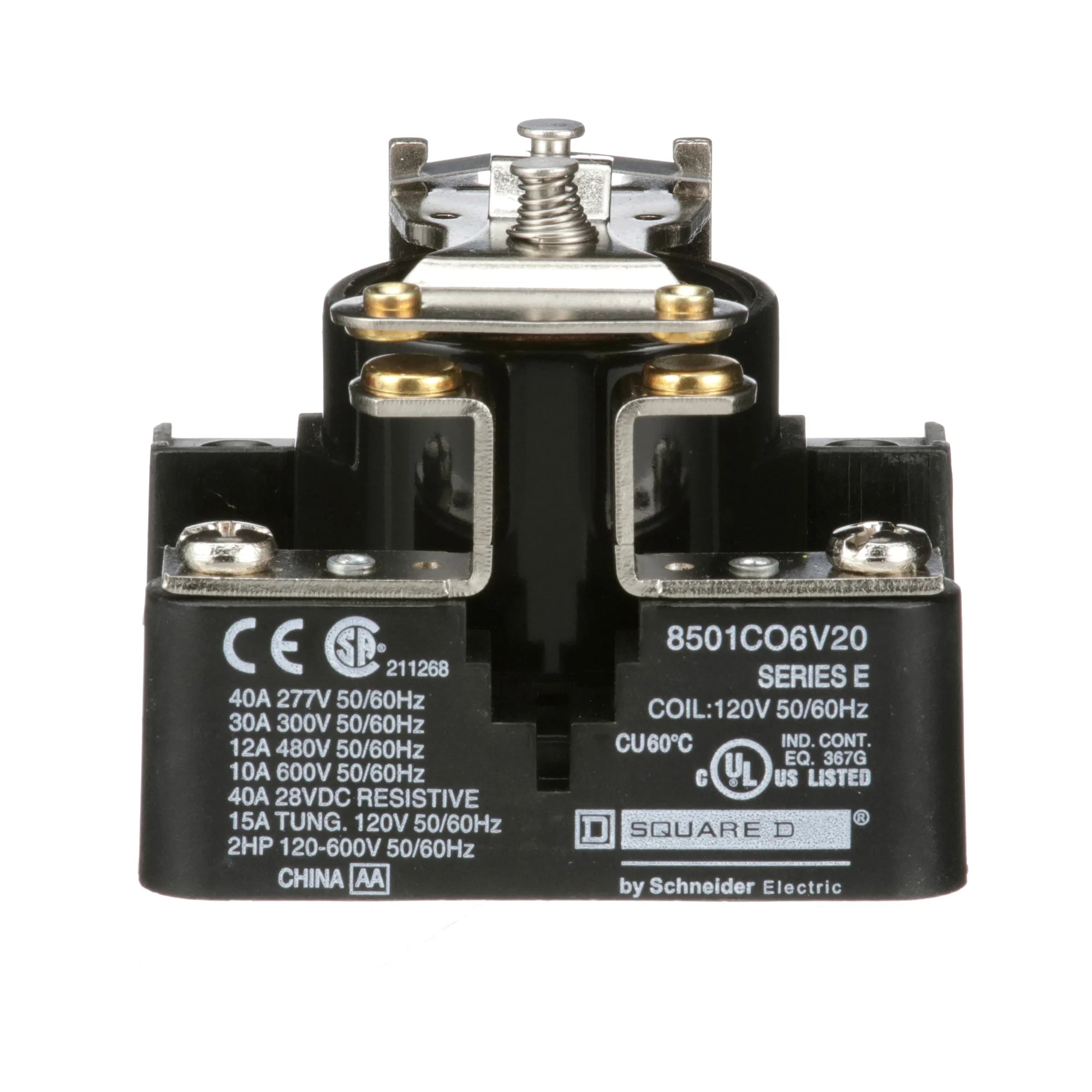

Square D 8501CO6V20 120 VAC 30 Amp 1-Pole SPST 1NO Panel Mount AC Operated Power Relay

Product Description

The Square D 8501CO6V20 is a power relay designed for controlling small single phase motors and other light loads. This unit operates at a voltage of 120 VAC with a 30 amp rating, featuring a single pole single throw (SPST) configuration with one normally open contact. The durable open frame construction allows for reliable performance in demanding conditions.

• Operates at 120 VAC with a nonreplaceable coil
• Rated for single phase 2 HP motors
• UL listed and CSA certified for safety

Product Highlights

This relay is suitable for use in electric heater, pumping, conveyor, and material handling applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501CO6V20
• MPN: 8501CO6V20
• Amperage: 30 Amp
• Operating Temperature: -22 to 122 degrees F
• Contact Configuration: 1 NO
• Dimensions: 2.5 inches (W) x 2.43 inches (H) x 2-1/4 inches (D)
• Certifications: CE, CSA, UL Listed
• Warranty Length: 18 months
