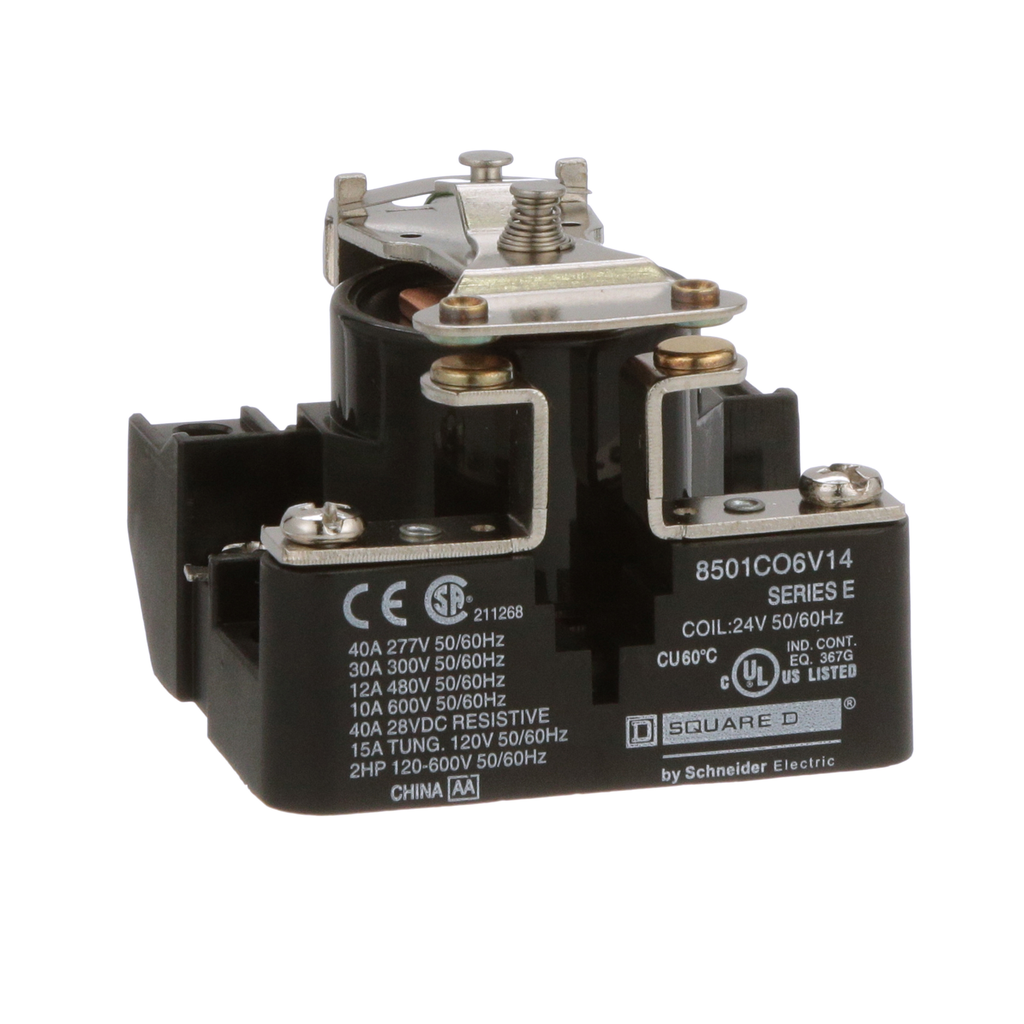

Square D 8501CO6V14 Power Relay 30 Amp 24 VAC 1 NO

Product Description

The Square D 8501CO6V14 is a power relay designed to control small single-phase motors and light loads. This relay features a single-pole single-throw (SPST) configuration with one normally open contact and no normally closed contacts. A nonreplaceable 24 VAC coil powers the relay, making it suitable for various applications.

• Control up to 30 Amp resistive loads.
• Suitable for electric heaters, pumps, and conveyor systems.
• UL listed and CSA certified for safety and reliability.

Product Highlights

This relay is ideal for controlling small motors and is built to withstand demanding environments with heavy-duty contacts.

Product Information

Standard Information

• Brand: Square D
• MPN: 8501CO6V14

Technical Specifications

• Catalog Number: 8501CO6V14
• Type: Power relay
• Amperage: 30 Amp
• Height: 2.43 inches
• Width: 2.5 inches
• Depth: 2.25 inches
• Coil Voltage: 24 VAC
• Contact Configuration: 1 NO
• Warranty Length: 18 months
• Country of Origin: China
• Operating Temperature: -22 to 122 degrees F
