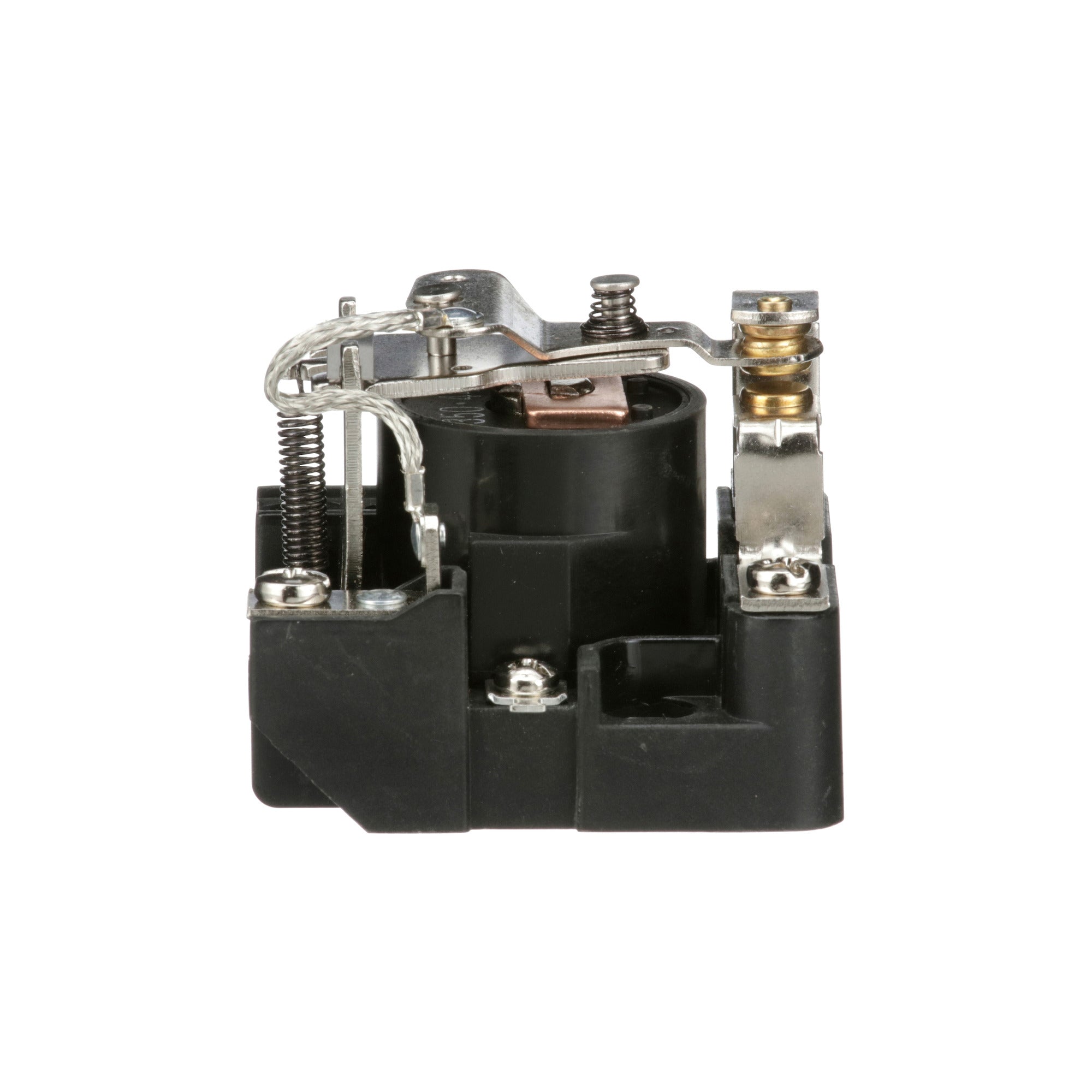

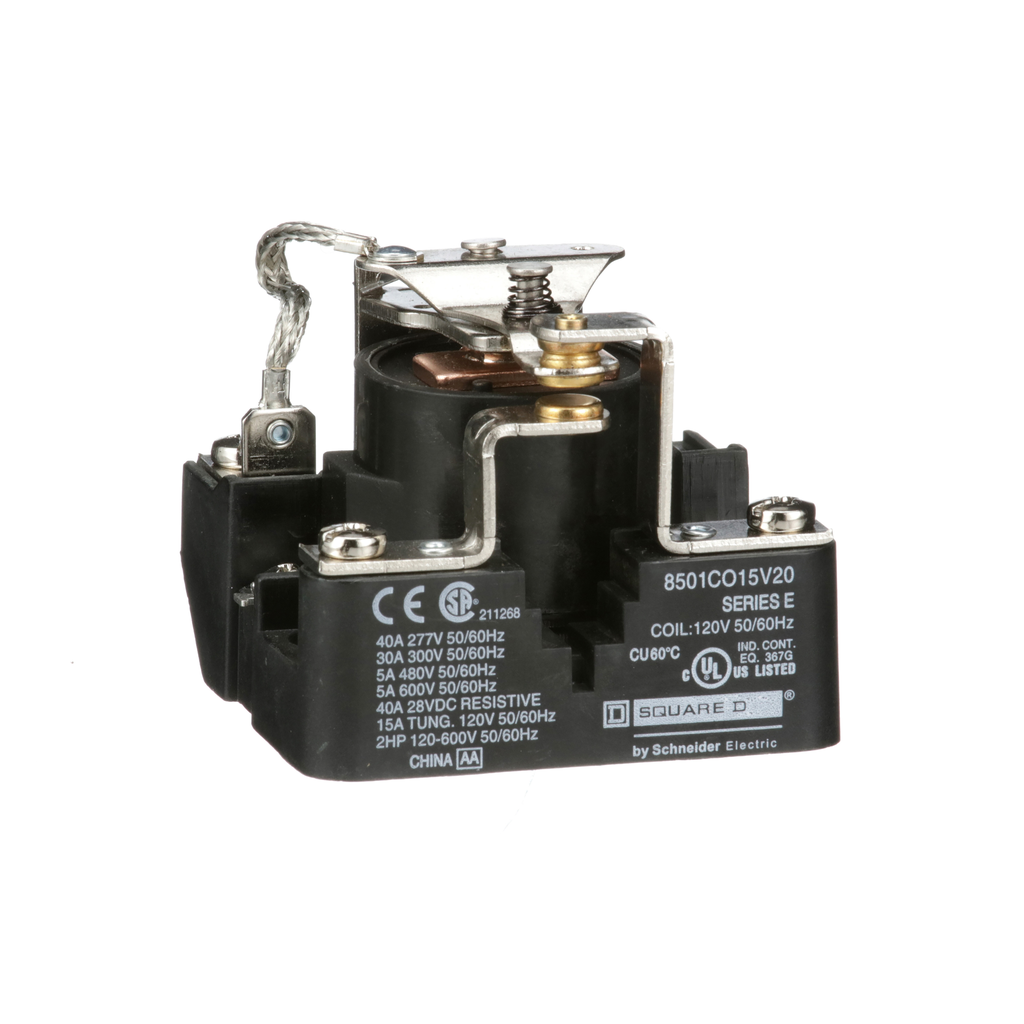

Square D 8501CO15V20 120 VAC 30 Amp 1-Pole SPDT 1NO 1NC Panel Mount AC Operated Power Relay

Product Description

The Square D 8501CO15V20 is a 120 VAC 30 Amp power relay designed to control small single phase motors and light loads. This panel mount relay features a single-pole double-throw (SPDT) contact configuration, with one normally open and one normally closed contact. It operates with a nonreplaceable coil rated for 120 VAC, making it suitable for various applications including electric heaters, pumping systems, and conveyor operations. The relay's robust design ensures durability and reliable performance in industrial environments.

• UL Listed and CSA Certified for safety
• Durable open frame construction
• Rated for motor loads up to 1.5 HP

Product Highlights

This relay is ideal for motor control, lighting, and industrial applications due to its wide range of operating voltages and current ratings.

Product Information

Standard Information

• Catalog Number: 8501CO15V20
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Power relay
• Amperage: 30 Amp
• Operating Temperature: -22 to 122 degrees F
• Country of Origin: China
• Operating Voltage: 120 VAC
• Contact Configuration: 1 NO/1 NC
• Warranty Length: 18 months
• Certifications: CE, CSA, UL Listed
