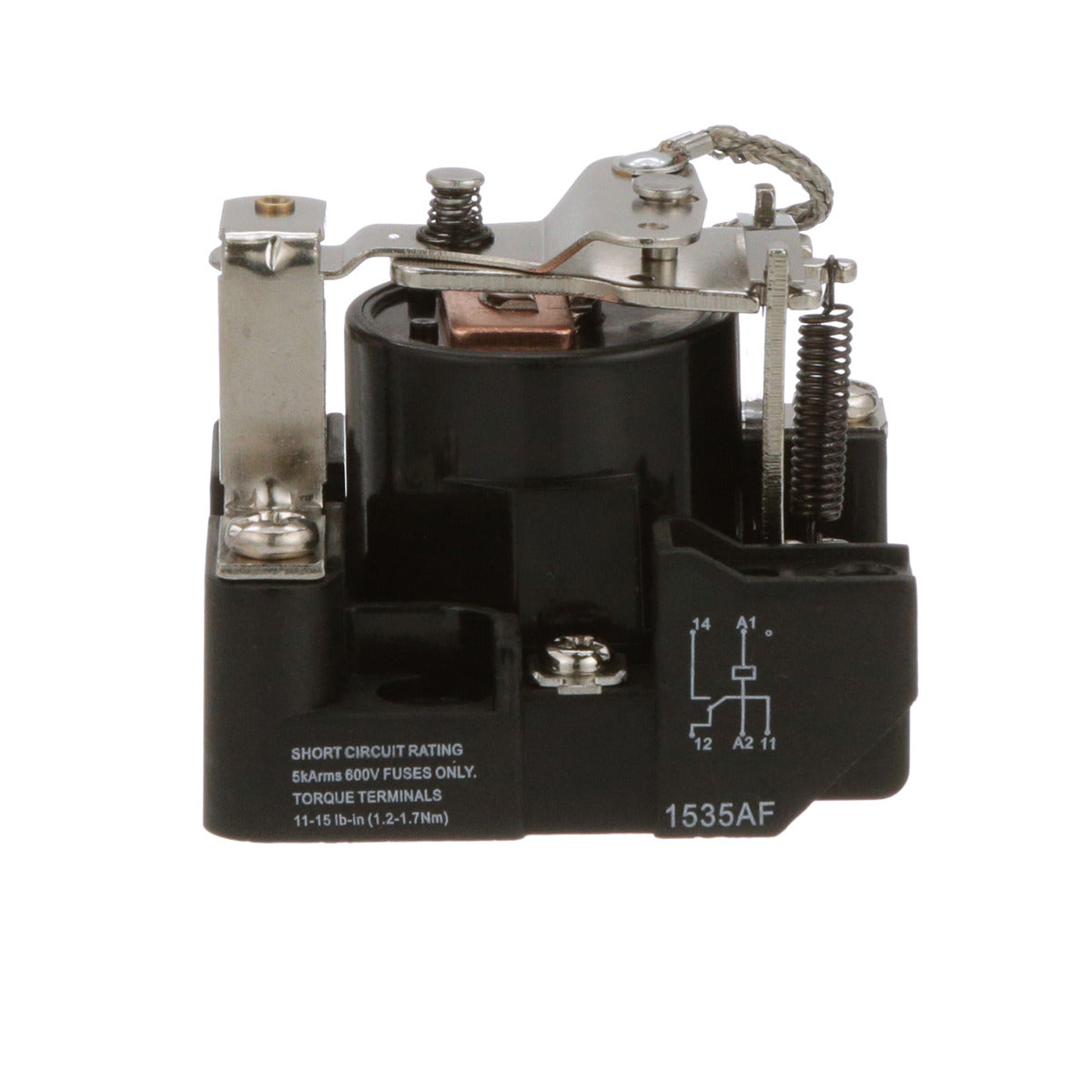

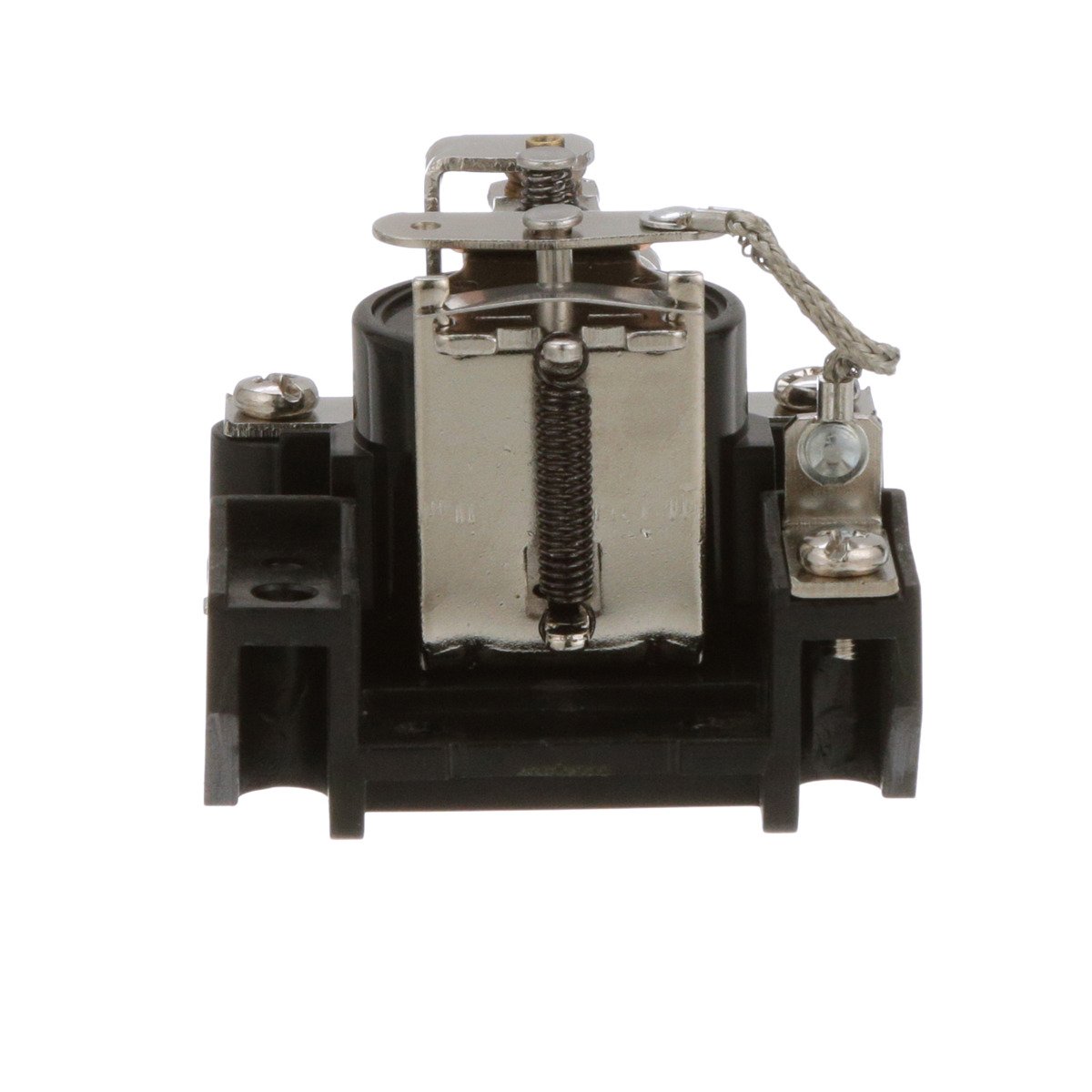

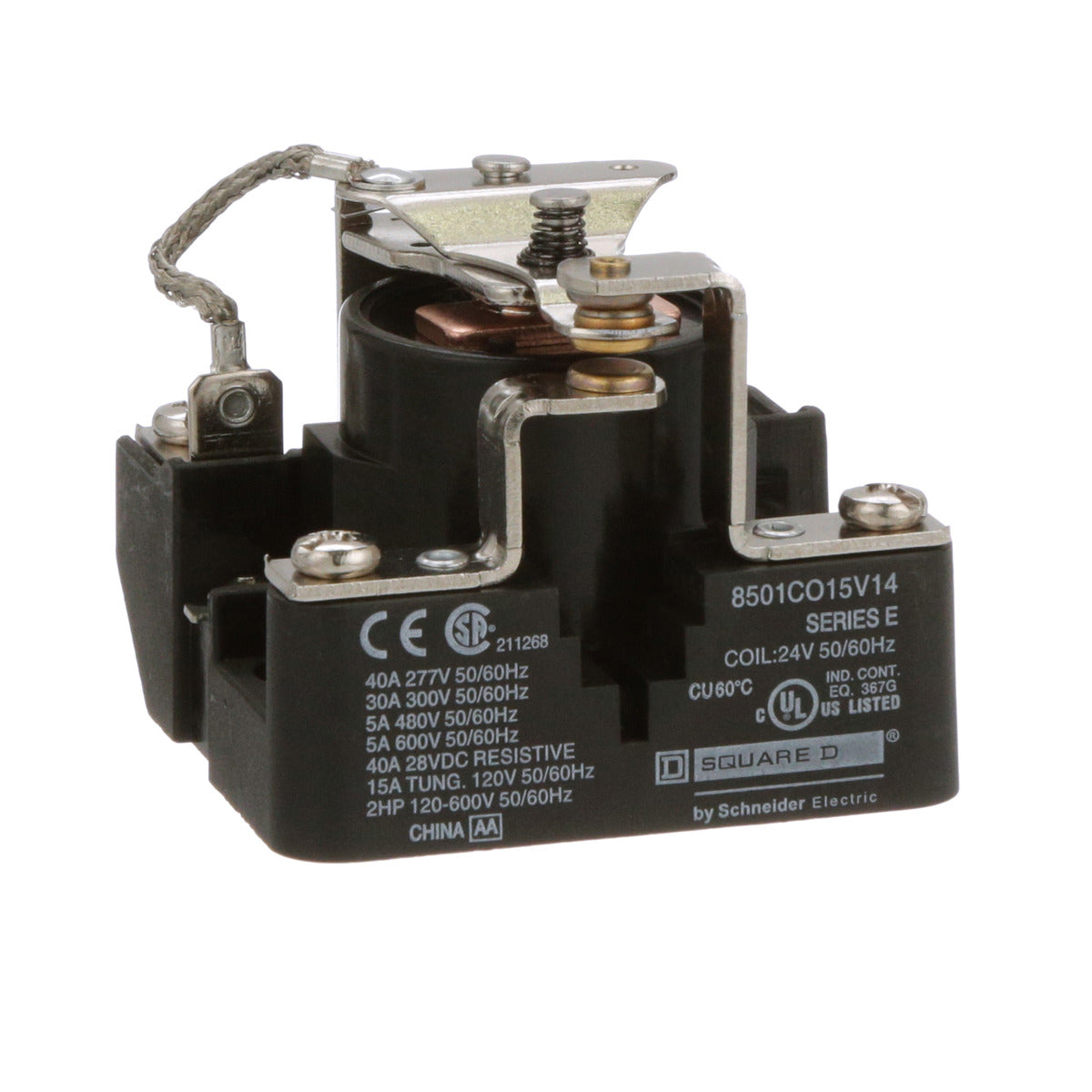

Square D 8501CO15V14 Power Relay Harmony 8501C SPDT coil screw clamp terminal 30A 24V AC 1NO + 1NC

Product Description

The Square D 8501CO15V14 Power Relay is designed for controlling small single-phase motors and light loads. This relay features a single-pole double-throw (SPDT) contact configuration, providing one normally open (NO) and one normally closed (NC) contact. It operates with a non-replaceable coil rated at twenty-four volts alternating current (VAC).

• SPDT contact configuration with one NO and one NC contact.
• Rated for single-phase motors up to one point five horsepower (HP).
• UL listed and CSA certified for safety.

Product Highlights

This relay is suitable for applications in electric heating, pumping, conveyor systems, and material handling, supporting reliable control in various industrial environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8501CO15V14
• Coil Voltage: 24 VAC
• Contact Configuration: SPDT (1NO + 1NC)
• Resistive Rating: 30 A at 300 VAC; 5 A at 600 VAC
• Motor Rating: Up to 1.5 HP at 120/230/600 VAC
• Warranty: Contractual Warranty: 18 months
• Country of Origin: United States
• UPC: 785901052098
