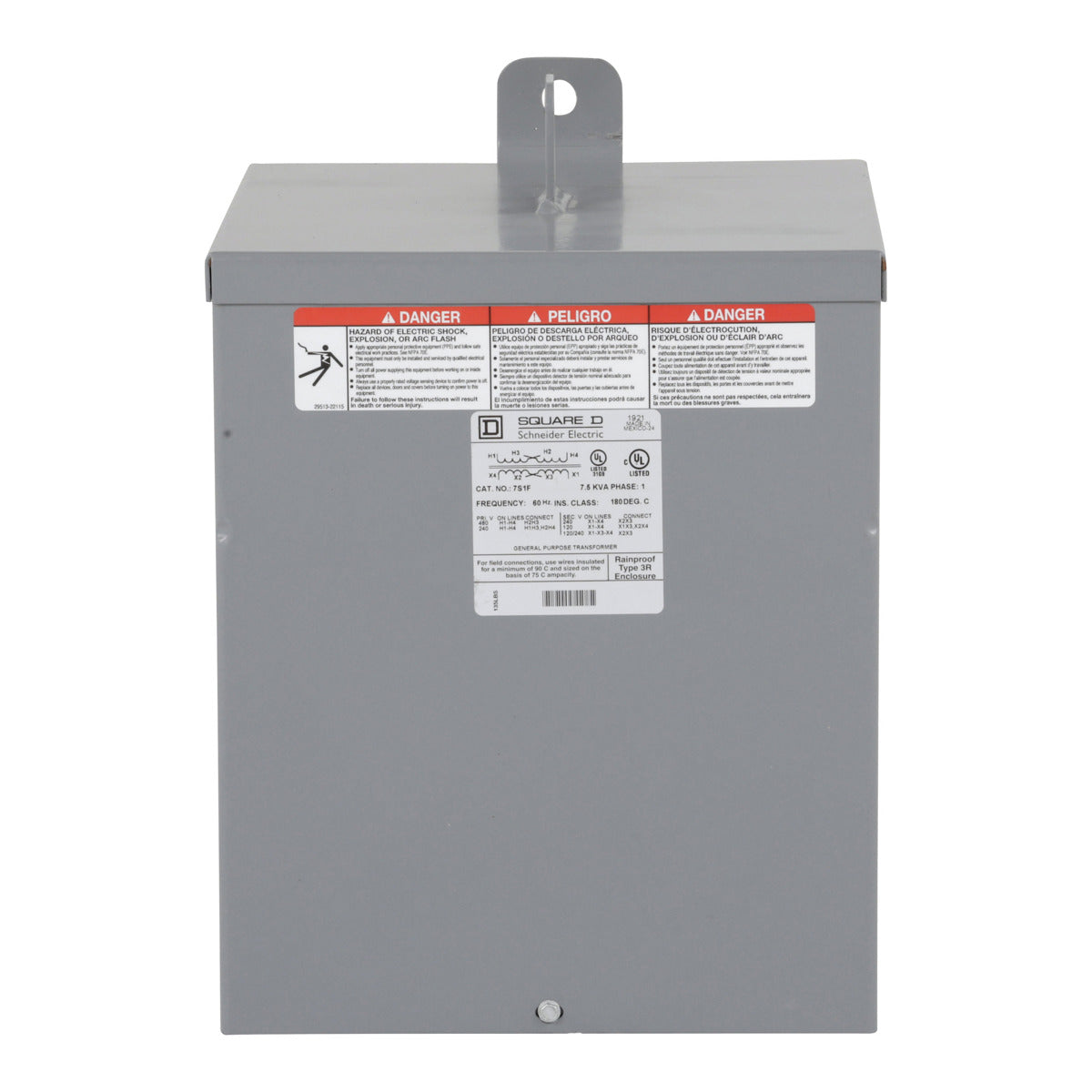

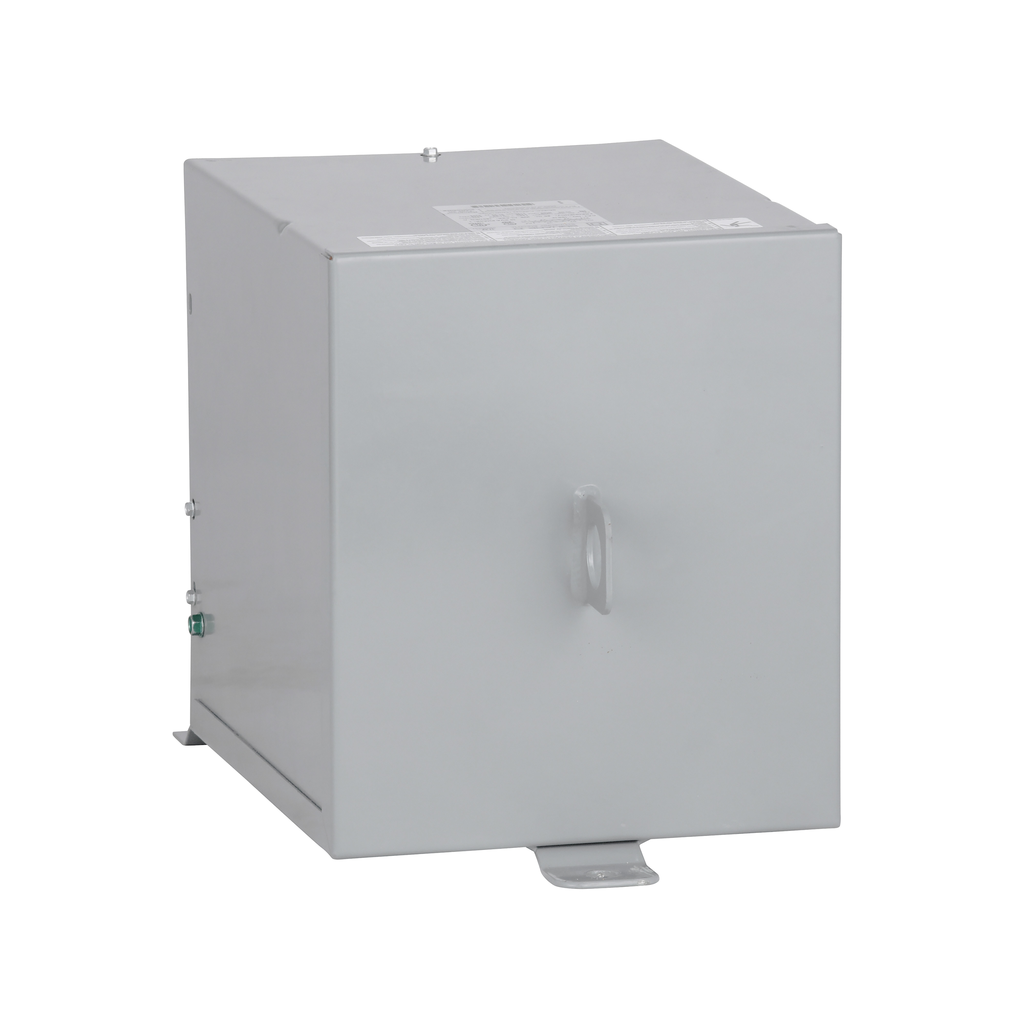

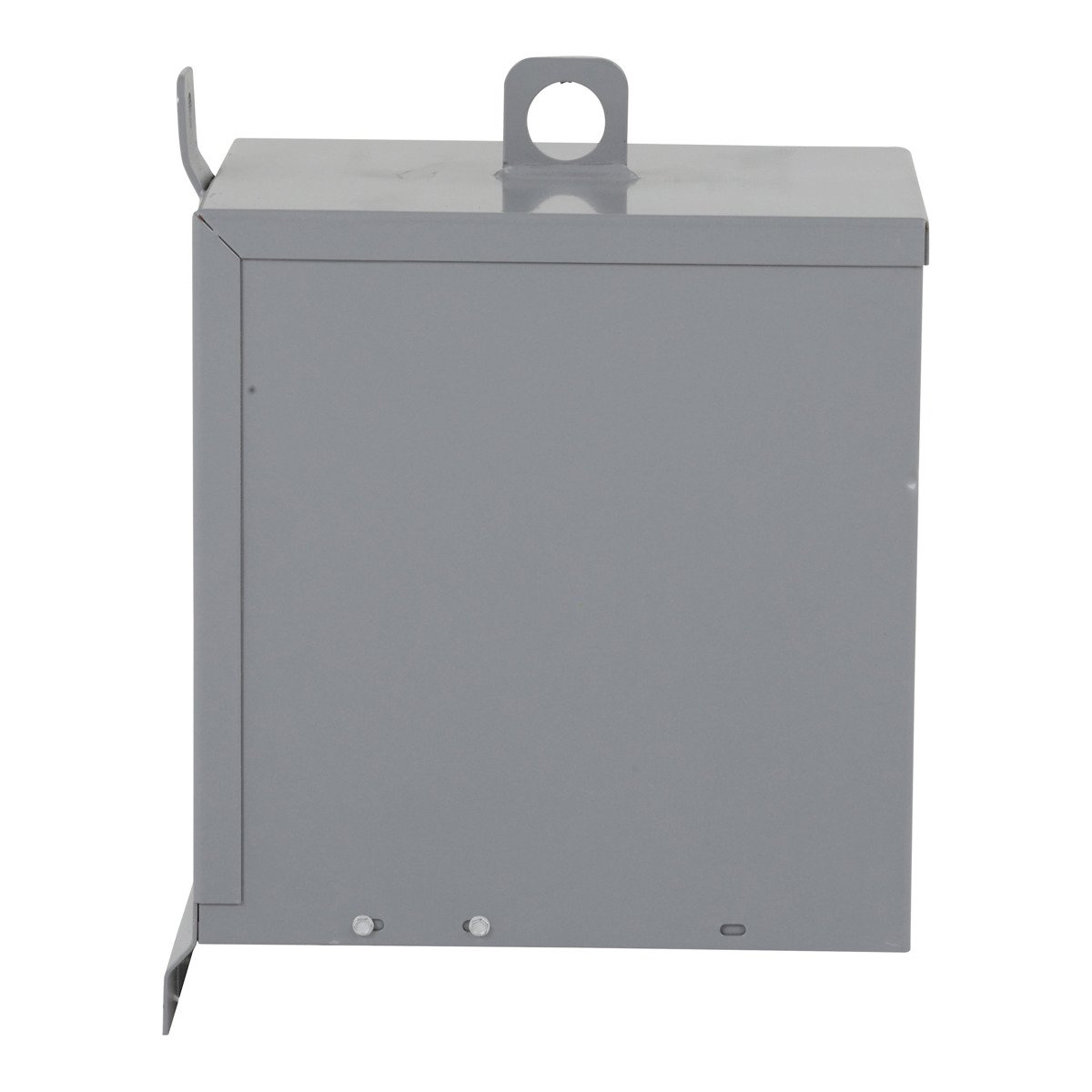

Square D 7S1F Transformer Dry 1PH 7.5KVA 240X480V-120/240V

Product Description

The Square D 7S1F is a dry-type transformer with a rating of 7.5 kVA, suitable for various voltage systems. The primary voltage is 240 by 480 volts, while the secondary voltage is 120/240 volts. This transformer features a resin encapsulation that protects against contaminants and airborne particles, making it ideal for indoor and outdoor use. The transformer’s core and coil assembly is embedded in epoxy for enhanced protection. It comes with a NEMA 3R rated enclosure, constructed from painted sheet steel, and designed for wall mounting.

• Dry-type transformer for 7.5 kVA applications
• Primary voltage: 240 x 480 V, secondary voltage: 120/240 V
• NEMA 3R enclosure provides robust protection

Product Highlights

This transformer is widely used in power, heating, and lighting applications. It meets UL and CSA standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 7S1F
• Rated Power: 7.5 kVA
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Number of Phases: 1 Phase
• Enclosure Material: Painted sheet steel
• Dimensions: 14.75 in (H) x 9.75 in (W) x 11.75 in (D)
• Temperature Rating: 115 degrees C
